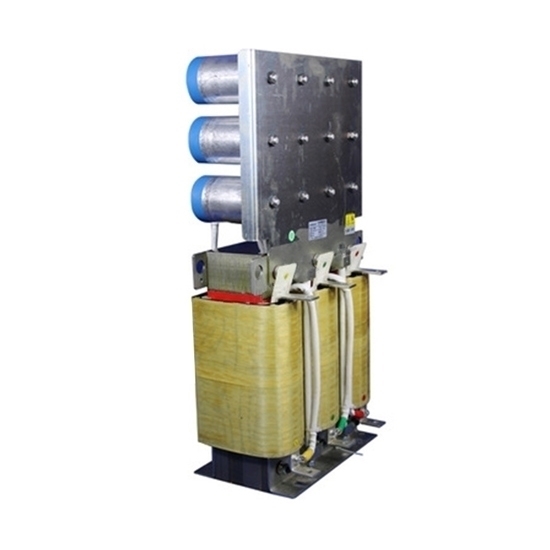

    30A Sine Wave Filter, 3 Phase

    High-performance sine wave filter for sale online. The sine filter with rated current 30A adapted power of 15kW, and carrier frequency 4kHz. The sinusoidal filter has an advanced choke design to minimize filter losses and voltage drop.
    SKU: ATO-SWF-30
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    30A sine wave filter with the power of 15kW at a low price for sale, the sine filter features withstand voltage 3000VAC 60/s. The sine filter can extend the motor's life, protect motor insulation, increase transmission distance, and improve system reliability.


    Model ATO-SCAR-0030
    Rated current 30A
    Adapted power 15kW
    Withstand voltage 3000 VAC 60/s
    Fundamental frequency 50Hz
    Carrier frequency 4kHz
    Insulation class F
    Altitude <2000m
    Working temperature -40-85℃
    Voltage drop 8%-12%
    Weight 24.5kg


    Dimension of sine wave filter

    Model L W H L1 W1 A B
    ATO-SCAR-0030 270mm 240mm 300mm 245mm 99mm 11.5mm 18mm


    Sine wave filter application

    Tips: Precautions for Using Sine Wave Filter

    1. After using the sine wave filter, the load capacity of the inverter will be lower than the system rated value.
    2. The sine wave filter will cause a certain proportion of voltage drop in the filtered voltage. At a fundamental frequency of 50Hz, the voltage drop is about 10%. Its ratio is proportional to the change of the fundamental frequency.
