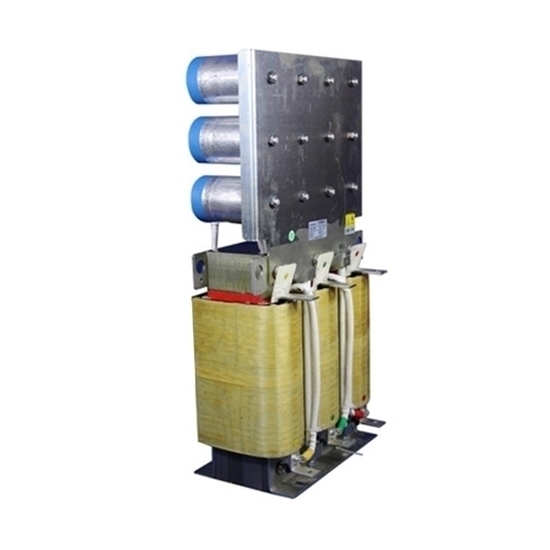

50A Sine Wave Filter, 3 Phase

Write a review

$889.88

Cheap sine wave filter for sale online with rated current of 50A, adapted power of 22kW, carrier frequency 4kHz, and F insulation class. The sinusoidal filter has less interference propagation towards neighboring equipment or lines.

SKU: ATO-SWF-50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

High-quality sine wave filter with rated current 50A, power of 22kW, withstand voltage 3000VAC 60/s. The sine filter has the advantage of small size, light weight and long service life.

Specification

Model	ATO-SCAR-0050
Rated current	50A
Adapted power	22kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	32kg

Dimension

Model	L	W	H	L1	W1	A	B
ATO-SCAR-0050	270mm	255mm	300mm	245mm	114mm	11.5mm	18mm

Application

Tips: Precautions for Using Sine Wave Filter

The filter will filter out a large number of high-order harmonic components in the process of filtering the PWM wave into a sine wave, so the inverter will have a vacant space of about 5%~7.5% of the rated output current of the inverter when the filter is no-load. Loading current (under the condition of 380V 50Hz. This current is proportional to the fundamental frequency and the output voltage of the inverter).
The filter should ensure good ventilation when in use.
