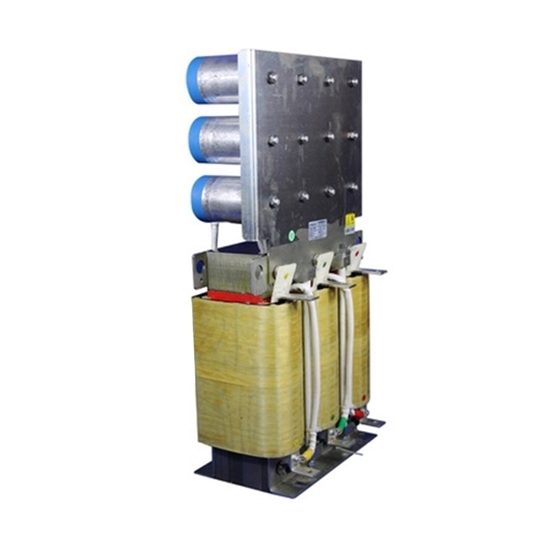

5A Sine Wave Filter, 3 Phase

5 out of 5 based on 1 reviews | Write a review

$313.23

Good price sine wave filter for sale online. The 3-phase sine filter with rated current 5A, adapted power of 2.2kW, and carrier frequency 4kHz. The sinusoidal filter is widely used in metallurgy, coal, petrochemical, and new energy.

SKU: ATO-SWF-5

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Lower cost sine wave filter with 5A rated current and withstand voltage 3000VAC 60/s. The sine filter can filters the SPWM modulation wave into an approximately sinusoidal voltage waveform.

Specification

Model	ATO-SCAR-005
Rated current	5A
Adapted power	2.2kW
Withstand voltage	3000 VAC 60/s
Fundamental frequency	50Hz
Carrier frequency	4kHz
Insulation class	F
Altitude	＜2000m
Working temperature	-40-85℃
Voltage drop	8%-12%
Weight	7kg

Dimension

Dimension of sine wave filter

Model	L	W	H	L1	W1	A	B
ATO-SCAR-005	180mm	170mm	220mm	165mm	67mm	8mm	14mm

Application

Sine wave filter application

Tips: What is a sine-wave filter?

Sinus filters, as the name suggests, are used to convert the output voltage of the frequency converter into a sinusoidal voltage. Frequency converters generate high electrical interference signals on the motor cable, which not only disturb the load, but also increase the insulation load on the motor.

Existing reviews of 5A Sine Wave Filter, 3 Phase

This filter works pretty well

This filter was paired with the old equipment during the upgrade. Its 2.2kW power rating perfectly matches my motor, and after installation, the current has become much more stable. The F-class insulation rating provides peace of mind, and it offers significantly better value for money compared to the imported model I bought previously.

From: Leo | Date: 03/09/2025

Was this review helpful? Yes No (0/0)
