    32 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~80

    32 mm Strain Wave Harmonic Drive Gearbox, Ratio 30~80

    5 out of 5 based on 2 reviews | Write a review
    $488.33

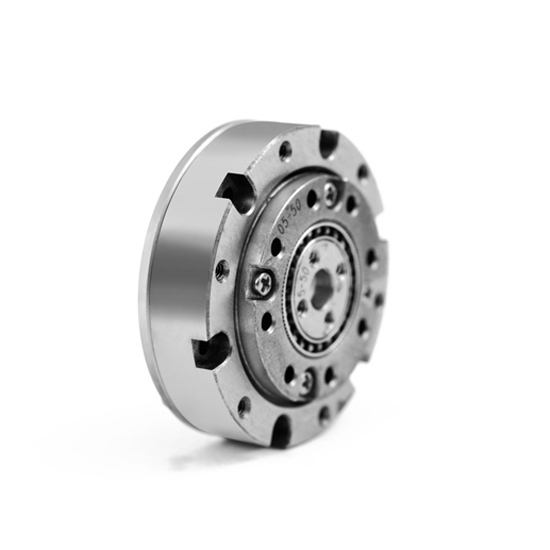

    32mm strain wave harmonic drive gearbox is designed for industrial robots, CNC equipment, medical instruments, military industry. Mini harmonic gearing has 30/50/80 gear ratios. Low price strain wave gear can provide harmonic gear reduction, but can also be used to increase rotation speed.
    *
    SKU: ATO-HD-32
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Low price 32mm harmonic drive is a strain wave gear that provides high transmission accuracy and supports a single-stage high reduction ratio with low inertia. The harmonic drive gearbox works with a 30/50/80 gear ratio, and is the simplest solution for your high-precision motion control applications.

    Features

    • The lightweight strain wave harmonic drive gearbox has an ultra-thin hollow, compact and simple structure.
    • Excellent positioning accuracy and rotation accuracy.
    • Harmonic gearing with a high torque capacity and a high gear ratio is available.
    • Special for wrist joint robot.

    Specifications

    • Model: ATO-SHD-05
    • Diameter: 32 mm
    • Thickness: 10.5 mm
    • Gear type: Cylindrical gear reducer
    • Installation form: Horizontal
    • Input speed: 4000 rpm
    • Rated power: 0.1 kW
    • Output speed: 0~500 rpm
    • Available torque: 500 N.m
    • Number of stages: Double-stage
    • Gear ratio: 30, 50, 80, other gear ratios please contact us.

    Parameters

    Gear ratio 30 50 80
    Rated torque when input 2000r/min (N.m) 0.30 0.44 0.72
    Allowable peak torque at start and stop (N.m) 0.60 1.10 1.50
    Maximum allowable average load torque (N.m) 0.45 0.60 1.00
    Momentary allowable maximum torque (N.m) 1.10 2.00 2.80
    Allowable maximum input speed (r/min) 10000
    Allowable average input speed (r/min) 6500
    Moment of inertia (1/4GD) (kgcm2) 2.5x10-4
    Arc seconds ≤20 ≤10
    Design life (hour) 10000

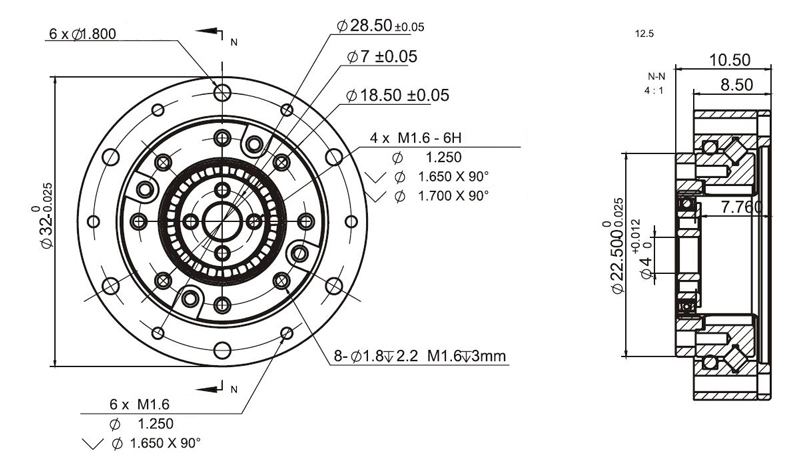

    32mm strain wave harmonic drive gearbox dimensions (unit: mm)

    32mm harmonic drive dimensions

    Strain wave harmonic drive gearbox applications

    Harmonic drive applications

    Tips: The composition of gear transmission

    • Rigid wheel: rigid internal gear of harmonic drive usually 2 teeth more than the flexible wheel, usually fixed on the casing.
    • Flexible wheel: a thin cup-shaped metal elastic component with a gear on the outer ring of the opening, which deforms with the rotation of the wave generator, and is usually connected with the output shaft.
    • Wave generator: the wave generator of the harmonic drive consists of an elliptical cam and a flexible bearing, usually connected to the input shaft. The inner ring of the flexible bearing is fixed on the cam, and the outer ring can be elastically deformed into an ellipse through the ball.

    Installation Manual

    PDFATO Harmonic Drive Gearbox Installation Manual

    Precautions for installation

    1. When the harmonic drive gearbox is in use, if the output end is horizontally downward, the lubricating grease injected into the inner wall space of the flexspline must exceed the meshing tooth surface.
    2. The installation plane of the rigid wheel and the rigid wheel connection and the installation plane of the flexible wheel and the flexible wheel need to be statically sealed to ensure that the grease will not leak during the use of the harmonic drive gearbox and avoid the reducer from working with little or no oil Time damage.
    3. During the installation process, please do not knock the parts of the harmonic drive gearbox with hard objects, or apply strong pressure to avoid damage to the parts.
    4. If you have any questions during the inspection, please contact ATO.

    Tips for using a harmonic drive gearbox

    • Please use it in the specified environment.
      Observe the following conditions when using a harmonic drive gearbox:
      Ambient temperature: 0-40 degrees Celsius, no splashes of water, oil, etc.; no corrosive, explosive gas; no dust such as metal powder,
    • Please use the prescribed method for installation.
      Please implement the installation method correctly according to the harmonic drive gearbox manual. If it is not installed correctly, it may cause vibration, loss of accuracy, shortened service life, damage and other failures.
    • Please use the specified lubricant.
      Failure to use the specified lubricant may result in reduced harmonic drive gearbox life.
      Please do not disassemble or reassemble the product, otherwise, it will not be able to restore its original performance.
      Do not exceed the allowable torque during use, otherwise, it may cause harmonic drive gearbox failure.
