32 Way GPS Power Divider, 0.8~2.7 GHz

32 way RF power dividers can effectively split or combine RF signals with minimal signal loss utilizing microstrip and coaxial technologies. ATO GPS power splitter in incorporate fans for efficient heat dissipation to ensure the stability of high-power applications.

Specification

• Model: ATO-PS32-0.8/2.7-SE
• Frequency Range: 0.8~2.7 GHz (800~2700 MHz)
• Insertion Loss: ≤1.8dB (Excluding Theoretical Loss of 15.0dB)
• Input Standing Wave: Typ.1.15/ Max.1.45
• Output Standing Wave: Typ.1.15/ Max.1.25
• Isolation: Typ26dB/Min.18dB
• Amplitude Balance: ≤0.5dB
• Phase Balance: ±8°
• Impedance: 50 Ohms
• Port Connector: SMA-Female
• Withstand Power: 30W for Splitter, 2W for Combiner
• Working Temperature: -35℃~+75℃
• Surface Treatment: Sandblasting Guide
• Dimension: 430*110*14mm
• Weight: About 1485.5g

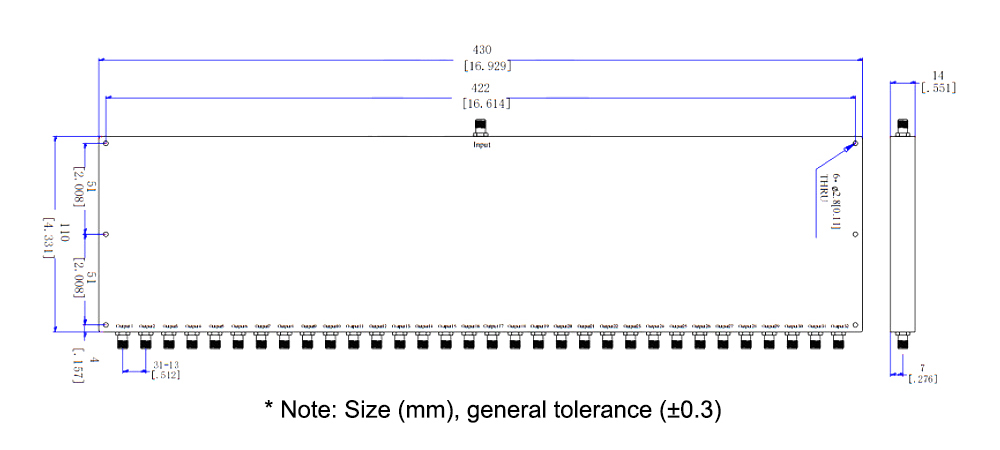

Dimension

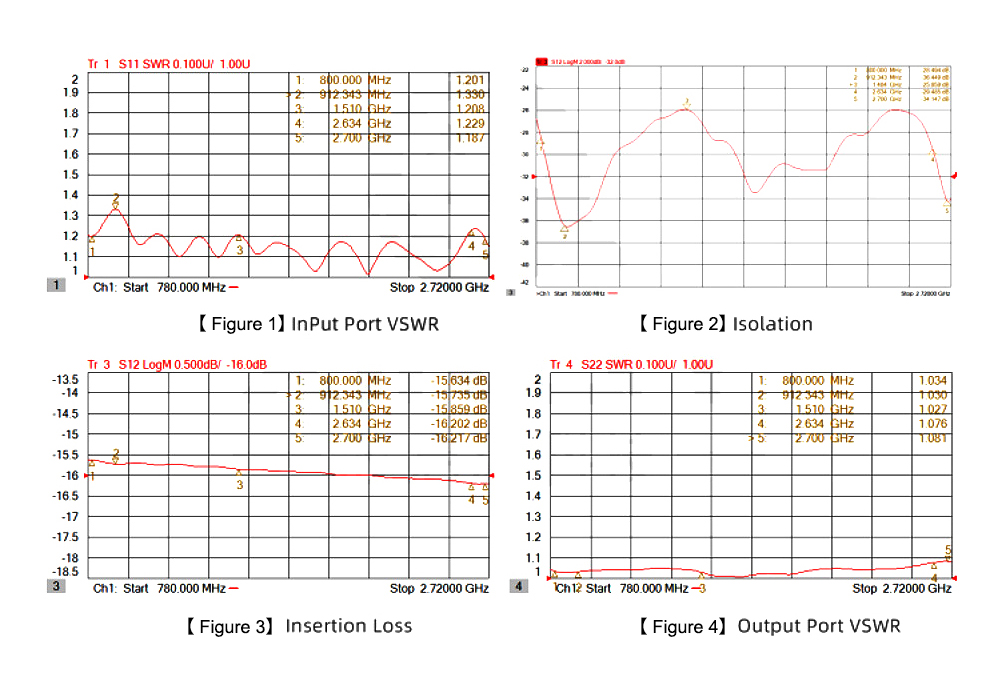

Radio Frequency (RF) Parameter Diagram

Tips: Can an RF power divider be used for both input and output splitting?

Yes, an RF (radio frequency) power divider can be used for both input and output splitting. A power divider is a passive device designed to divide an input signal into multiple output signals with equal or specified power levels. It typically operates bidirectionally, meaning it can be used for both input and output splitting in RF systems. The device is characterized by low insertion loss, high isolation between output ports, and impedance matching to ensure efficient signal distribution. This bidirectional capability makes RF power dividers versatile components in various applications, such as in antenna systems, communication networks, and test setups, where signal splitting is required for transmission or measurement purposes.
