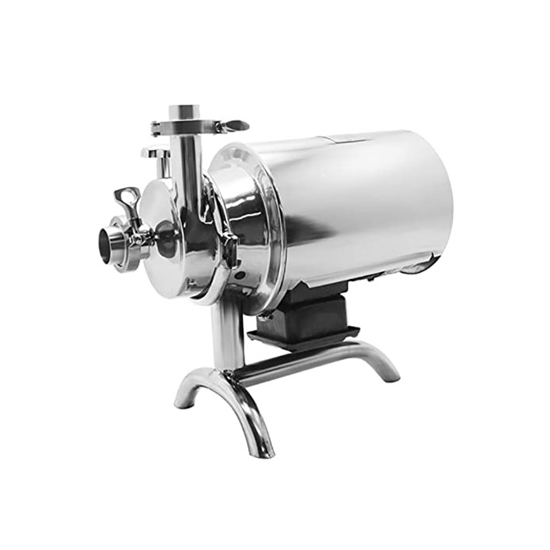

    3hp (2kW) Stainless Steel Centrifugal Pump

    5 out of 5 based on 1 reviews | Write a review
    $805.40
    Economical price ss centrifugal pump with rated power 3hp, rated voltage 1-phase 220V/ 3-phase 380V. The stainless centrifugal pump is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.
    *
    *
    SKU: ATO-BAW-150-1
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Stainless steel sanitary pump with 10t/ h flow rate, 24m lift (water column), 51/ 38mm inlet/ outlet size, three kinds of accessories for selection.

    Specification

    Model BAW-150-1
    Rated power 3hp (2kW)
    Rated voltage 220V/ 380V
    Phase 1 phase/ 3 phase
    Accessories Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union
    Flow rate 10t/ h
    Lift (water column) 24m
    Inlet/ outlet size 51/ 38mm
    Outer size L520mm*W260*H370m
    Weight 38kg
    Warranty 12 months

    Dimension

    Dimension of stainless steel centrifugal pump

    Model Mounting dimensions (mm)
    A B C D E L L1 L2 H H1
    BAW-150 51 38 85 60 220 530 350 190 380 220

    Product information

    Product information of centrifugal pump



    Tips: Adjustment Method of Stainless Steel Centrifugal Pump.
    Outlet valve adjustment, pump variable speed adjustment and pump series and parallel adjustment. The centrifugal pump uses variable speed to adjust the flow rate, which can save energy better than the outlet valve to adjust the flow rate, and the energy saving efficiency is related to the flow rate change. In actual application, attention should be paid to the range of variable speed adjustment, in order to better apply the variable speed adjustment of centrifugal pump.

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.
