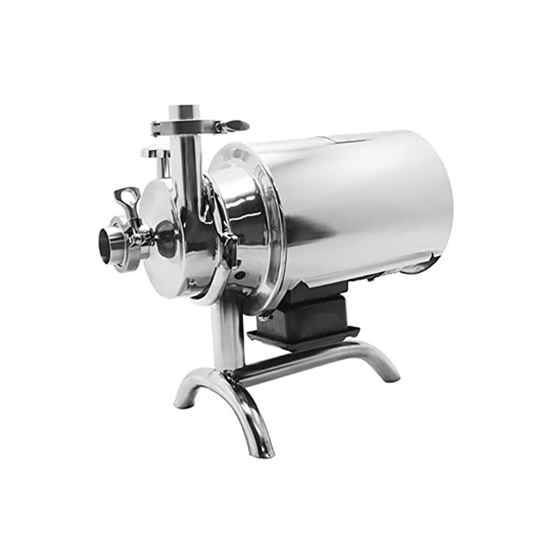

    370W Stainless Steel Centrifugal Pump

    5 out of 5 based on 1 reviews | Write a review
    $443.02
    Cheap price stainless steel centrifugal pump online for sale, with rated power 370 watt, rated voltage 220V/ 380V, 3 phase, three kinds of accessories can be chosen. The ss centrifugal pump is widely used in food, beverage, pharmaceutical, biological engineering, water treatment, daily chemical, petroleum and chemical industries.
    *
    *
    SKU: ATO-BAW-90
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Factory price stainless steel sanitary pump for sales, which with 1t/ h flow rate, 10m lift (water column). The centrifugal pump has the advantages of wide range of performance, small size, simple structure, easy operation, low operating cost, etc.

    Specification

    Model BAW-90
    Rated power 0.37kW
    Rated voltage 220V/ 380V
    Phase 1 phase/ 3 phase
    Accessories Clamp + gasket + quick connector/ clamp + gasket + sanitary hose joint/ Union
    Flow rate 1t/ h
    Lift (water column) 10m
    Inlet/ outlet size 25mm
    Outer size L380mm*W200*H280m
    Weight 16kg
    Warranty 12 months

    Dimension

    Dimension of stainless steel centrifugal pump

    Model Mounting dimensions (mm)
    A B C D E L L1 L2 H H1
    BAW-90 25 25 40 35 160 390 280 150 270 155

    Product information

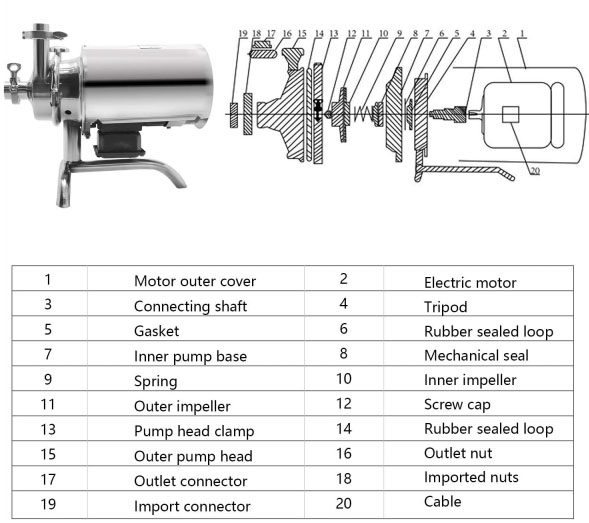

    Product Information of Centrifugal Pump

    Tips: Features of Stainless Steel Centrifugal Pump.
    1. Smooth operation: The absolute concentricity of the pump shaft and the excellent dynamic and static balance of the impeller ensure smooth operation and no vibration.
    2. No leakage of dripping water: Carbide seals of different materials ensure that there is no leakage in the conveyance of different media.
    3. Low noise: The water pump supported by two low-noise bearings runs smoothly and is basically no noise except for the weak sound of the motor.
    4. Low failure rate: The structure is simple and reasonable, and the key parts are equipped with international first-class quality, and the trouble-free working time of the whole machine is greatly improved.
    5. Convenient maintenance: replacement of seals and bearings is simple and convenient.
    6. Less land occupation: The outlet can be left, right, and up in three directions, which facilitates pipeline layout and installation and saves space.

    Different types of centrifugal pumps

    This video explains different types of centrifugal pumps that can be selected according to one's own needs.

    Principles and functionality explained

    This video tells us what a centrifugal pump is and its working principle, and you will have a general understanding of it.

    Components of centrifugal pumps

    This video is an explanation of the components of a centrifugal pump, and we can learn the basic knowledge of the eight components of a centrifugal pump from it.
