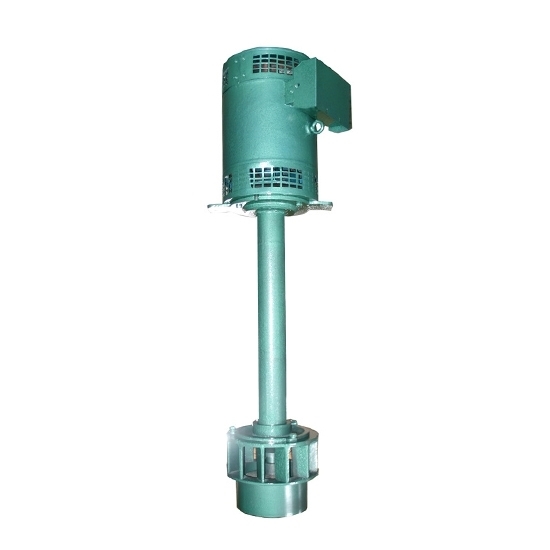

3kW Vertical Hydroelectric Turbine Generator, Axial Flow

Note: This 3kW vertical hydroelectric turbine generator cannot be used for drinking water.

Mini 3000 Watt vertical hydro generator utilizes axial flow design, supports 2m–4m head and 0.09–0.14m³/s flow, produces 220V output, perfect portable hydroelectric power generator for small-scale hydropower sites like creeks or mini-dams.

Specification

Features

• High efficiency power generation: 3kW vertical water turbine generator maximizes energy conversion even at low water heads.
• Reliable performance: Designed for continuous, quiet operation with minimal maintenance required.
• Compact and portable design: Small hydro turbine generator offers easy installation and transport for versatile use.
• Eco-friendly operation: Produces zero emissions, leveraging natural water flow sustainably.
• Wide application suitability: Ideal hydropower turbine for small rivers, irrigation channels, and remote locations.

Structure Diagram

Installation Diagram

Application

Tips: What water flow and head do I need to power a 3000W vertical hydropower turbine?

To determine the required head and flow rate for a 3kW miniature axial-flow hydroelectric generator, use the formula: Power = Head × Flow × Gravity × Efficiency.

Head and flow rate are mutually dependent: higher head reduces flow requirements, and vice versa.

Typically, at medium head (3-5 meters), a flow rate of approximately 0.06-0.1 cubic meters per second is required; at lower head (1-2 meters), a higher flow rate of approximately 0.2-0.3 cubic meters per second is required. System efficiency (typically 80%) directly influences the final value. Specific requirements depend entirely on site conditions. It is recommended to conduct actual measurements and consult the manufacturer's performance curves for accurate calculations.
