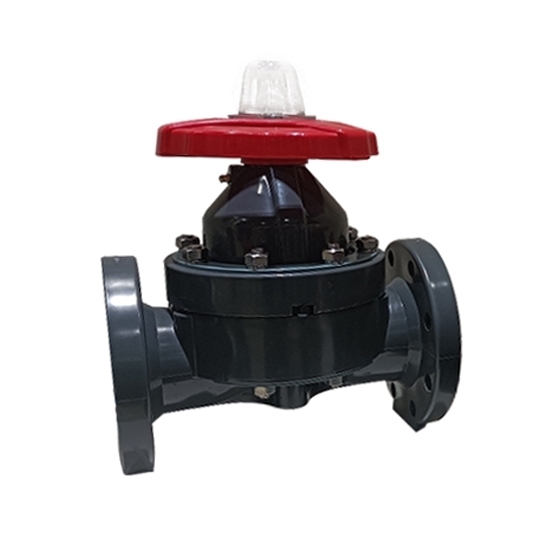

    4" Flanged Diaphragm Valve, UPVC/ CPVC

    $497.59
    ATO 2 way PVC diaphragm valve is widely used in water treatment, chemical processing and pharmaceuticals, with 4 inch (DN100) flanged port. Low price manual diaphragm valve is available in UPVC and CPVC body material, PTFE diaphragm, best for flow and liquid control.
    *
    SKU: ATO-FDV-DN100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    PVC diaphragm valve consists of a UPVC or CPVC body with an inlet and outlet and a diaphragm that separates these two ports. When the valve is in the closed position, the diaphragm seals against the body, preventing the flow of fluid.

    Specification

    Model ATO-FDV-DN100
    Size 4 inch (DN100)
    Structure Type Flanged Type
    Diaphragm Valve Assembly Parts Material
    Diaphragm PTFE
    Film EPDM
    Valve Body UPVC, CPVC
    Valve Plate UPVC, CPVC, Steel, Stainless Steel
    Cover Limit AS
    Stud Steel, Stainless Steel
    Retaining Nut FRPP
    Washer FRPP
    Wheel Alloy Material
    Platen Steel, Stainless Steel
    Double-Headed Stud and Nut Steel, Stainless Steel
    Bonnet UPVC, CPVC
    Yoke Nut Ht300 Steel
    Stem Steel, Stainless Steel


    Dimension (Unit: mm)

    Flanged PVC diaphragm valve dimension DN15 ~ DN100

    Size Valve Body Material d D L h n-φ
    4 inch (DN100) UPVC 180 215 350 29 8-φ18
    CPVC 180 215 350 29 8-φ18

    Note: The above dimensions are for reference only, please refer to the actual product.

    Detail

    Flanged diaphragm valve detail

    Working Pressure

    Size Working Pressure (MPa)
    UPVC CPVC
    20~40℃ 41~60℃ 61~80℃ 0~40℃ 41~60℃ 61~90℃
    1/2" (DN15) 0.8 0.8 0.7 0.7 0.7 0.6
    3/4" (DN20) 0.8 0.8 0.7 0.7 0.7 0.6
    1" (DN25) 0.8 0.8 0.7 0.7 0.7 0.6
    1-1/4" (DN32) 0.7 0.7 0.6 0.7 0.7 0.6
    1-1/2" (DN40) 0.7 0.7 0.6 0.7 0.7 0.5
    2" (DN50) 0.7 0.7 0.6 0.7 0.7 0.5
    2-1/2" (DN65) 0.7 0.7 0.6 0.7 0.7 0.5
    3" (DN80) 0.7 0.7 0.6 0.7 0.7 0.5
    4" (DN100) 0.7 0.7 0.6 0.7 0.6 0.5
    5" (DN125) 0.5 0.5 0.4 0.5 0.5 0.4
    6" (DN150) 0.5 0.5 0.4 0.5 0.4 0.3
    8" (DN200) 0.3 0.3 0.2 0.5 0.3 0.25
    10" (DN250) 0.3 0.3 0.2 0.3 0.3 0.2

    Tips: Is a diaphragm valve a ball valve?

    A diaphragm valve and a ball valve are two distinct types of industrial valves used to control the flow of fluids within pipelines, and they have fundamental differences in their design and operation.

    A diaphragm valve uses a flexible diaphragm, typically made of rubber or a similar material, to isolate the flow path. When the valve is closed, the diaphragm is pressed against the valve seat to block the flow completely. This design makes diaphragm valves excellent for applications requiring a high level of sealing and where contamination must be prevented, such as in the pharmaceutical and food industries.

    In contrast, a ball valve employs a spherical ball with a hole in it to regulate the flow. When the valve is open, the ball's bore aligns with the pipeline, allowing fluid to pass through, and when it's closed, the ball rotates to block the flow. Ball valves are known for their quick, reliable shut-off capability and are commonly used in various industries, including oil and gas, plumbing, and industrial processes.
