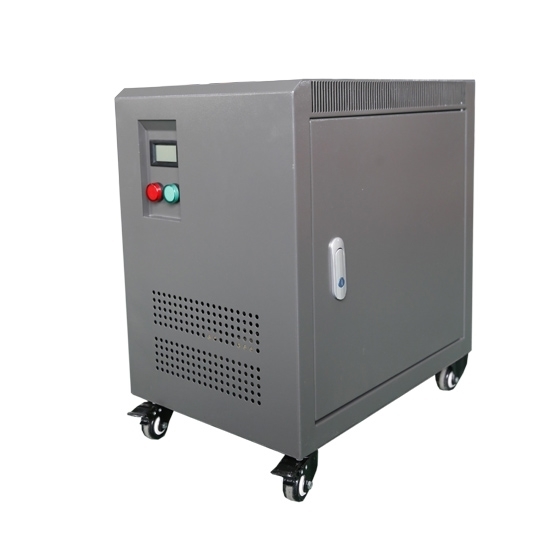

45 kVA Isolation Transformer, 3 phase, 415V to 208V

5 out of 5 based on 1 reviews | Write a review
$6,321.43
Highly effective 45 KVA 3 phase isolation transformer that is 50Hz / 60Hz rated and superior quality, transform the voltage 415V to 208V, also 208V to 415V transformer is available, IP 24 protection grade of enclosure for protection.
*
*
*
*
*
*
SKU: ATO-T-SG45KVA
30-day Returns
Delivery date: 10-20 days

ATOSG-45KVA three phase isolation transformer is powerful, reliable, step down/step up 415V to 208V, suitable for indoor applications.

45 kVA Isolation Transformer Features

  • Dry air self cooling of cooling mode.
  • three phase unit with 45 kVA power rating.
  • Better dielectric strength and insulation resistance.
  • IP 24 protection grade of enclosure.

45 kVA Isolation Transformer Specifications

Basics Model ATO-SG45KVA
Phase 3 phase
Capacity 45 kVA
Weight of Aluminium Wire Transformer Open type: 203kg
Protected type: 238kg
Weight of Copper Wire Transformer Open type: 200kg
Protected type: 232kg
Technical Parameters Primary Voltage 415V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
Secondary Voltage 208V (Optional: 120V/ 190V/ 208V/ 220V/ 230V/ 240V/ 380V/ 400V/ 415V/ 480V)
Voltage Convert Three phase to three phase
Frequency 50Hz / 60 Hz
Winding Material Aluminium/Copper wire (Optional)
Work Efficiency ≥95%
Insulation Resistance ≥50 MΩ
Electrical Strength 3000V AC/1 min
Noise <35-65dB (1 meter)
Insulation Grade H level
Wiring Mode Dyn11
Cooling Mode Dry type air cooling
Overload Capacity Allow more than 1.2 times rated load to work for up to 4 hours
Enclosure Protection Grade IP 24
Certificate CE, ISO
Warranty 12 months
Working Environment Temperature -15℃~+40℃
Humidity ≤90%RH, without condensation
Altitude <1000m, non corrosive gas and conductive dust

Note:
Transformer can only convert voltage and CANNOT convert frequency.
Transformer CANNOT convert single phase voltage to 3 phase voltage.
Input/output voltage, power rating and whether with shell of all transformers, can be customized according to clients' requirements.

3 Phase Isolation Transformer Schematic Diagram

ATO isolation transformers schematic diagram

3 Phase Isolation Transformer Details

3-phase isolation transformer details

45 kVA Isolation Transformer Installation Dimension

3 phase isolation transformer dimension

Aluminium Wire Transformer Size Copper Wire Transformer Size
Open type: a*b*c=500*330*480mm Open type: a*b*c=440*350*420mm
Mouting size: d*e=340*190mm Mouting size: d*e=300*200mm
Protected type: A*B*C=455*660*710mm Protected type: A*B*C=420*610*610mm

Tips: Dry type step up & step down isolation transformer cooling method

Dry type step up & step down isolation transformers mainly include natural air type and forced air type. Natural air cooling is mainly for transformers which are continuous operating within the rated capacity. Forced air cooling method can make the output capacity of the transformer increase by 50%. This method is mainly applied to discontinuous load operation or load operation due to accidents. However, both the impedance voltage or load loss will not increase naturally during the loading operation and they are not conducive to economic operation, so it is not appropriate to make the transformer run under suchload for a long time.

Existing reviews of 45 kVA Isolation Transformer, 3 phase, 415V to 208V
Do you provide outdoor isolation transformers?
Do you provide outdoor isolation transformer?
From: Peka | Date: 06/05/2021
Was this review helpful? Yes No (0/0)
ATO Responded
Yes, we provide outdoor for 2 protection degrees (56) and (65).
