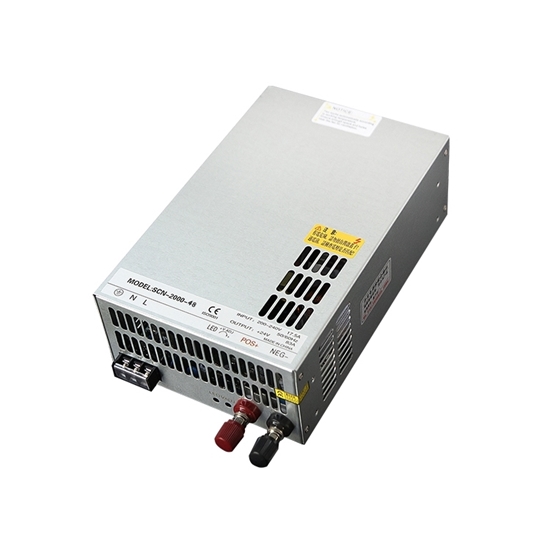

- 2000W 48V DC switching power supply has high working efficiency, stable output

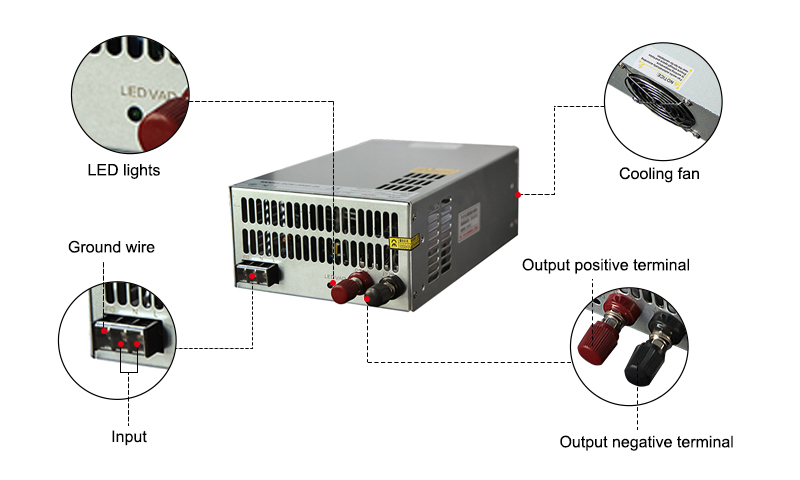

- Exquisite appearance, small size, stable performance
- Excellent magnetic core enameled wire, high temperature resistance
- Iron-silicon aluminum magnetic ring, lower working temperature
- Highly efficient heat dissipation, low fan noise
- High voltage resistance, low loss, high capacity
|Ripple & Noise
|Voltage Adjustment Range
|Load Adjustment Rate
|Line Adjustment Rate
|Setup, Rise, Holdup Time
||200ms, 50ms, 20ms: 230V AC
||105~135% rated output power
Protection type: Constant current limiting, recovers automatically after fault condition is removed.
||RTH3: Fan is always running, ≥90°C output shut down.
||-10 ~ +50℃
|Safety & EMC
||I/P-O/P: 1.5KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC
||I/P-O/P， <6mA at 1.5kVAC； <1.5mA at 220VAC
||I/P-O/P, I/P-FG, O/P-FG: 100M Ohms/500VDC
SMPS Power Supply Application
- Power Tools
Electric Saw, Drilling Machine, Ginder, Sand Blast Machine, Puching Machine, Weeding Machine, Air Compressor, etc.
- Offices Devices
Computer, Printer, LCD Monitor, Scanning Machine, etc.
- Electrics & Household Appliance
TV, VCRS, Radio, Dust Collector, Fan Lamp or LED Strip, Sewing Machine, Microwave Oven, Fridge/Freezr, Coffemarker, etc.
- Industrial Equipemnt
Monitoring Equipment, Shipping, Vehicle, Metalhalide Lamp, Solar System, Wind Power Generation, etc.
Tips: Why do you need a switching power supply?
The power supply is determined according to the needs, involving factors such as power consumption (heat generation), withstand voltage and cost. 5v is too low for high-power occasions, or occasions requiring thousands of volts of high voltage, which will lead to excessive current and excessive power consumption of the device. For occasions requiring low power consumption, such as computer processors, the voltage is too high. So, even within an appliance, several voltages may be required. For example, the computer motherboard needs 12v, 5v, -5v, 3.3v, or even 1v and other voltages. It is not possible to fix a certain voltage.
In many occasions, the direct current needs to be transformed twice or even multiple times. For example, laptops, in order to be portable, generally use an external switching power supply to convert 220v mains into about 20v direct current, and then use them for laptops. And the computer needs to turn 20v into 12v, 5v, 3.3v and other necessary voltages. Because in power applications, electromagnetic transformation is basically required for voltage transformation. The principle of electromagnetic transformation requires that the magnetic field must be transformed (cutting magnetic lines of force), that is, the power supply must be transformed or pulsated to generate corresponding alternating or pulsating magnetic fields. However, the DC power supply is stable. Therefore, the DC pulse must be obtained through the continuous switching of the power tube, so as to realize the electro-magnetic-electric conversion. This process itself is a switching power supply. In short, DC-DC conversion must be realized by switching power supply.
