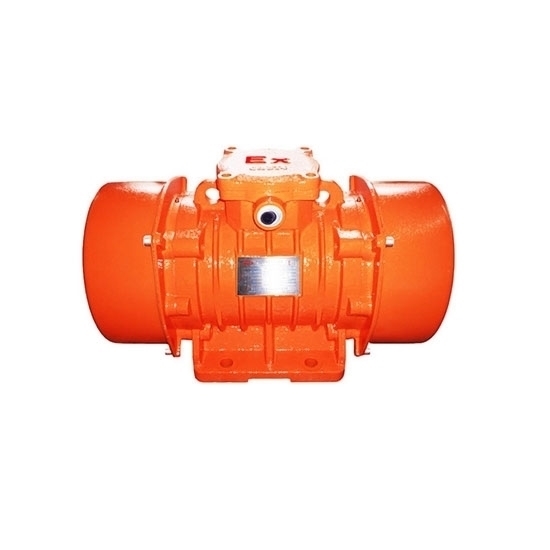

5.5 kW Explosion Proof Vibration Motor, 4 pole

5 out of 5 based on 2 reviews | Write a review

$8,996.98

Heavy duty explosion proof vibration motor force 84 kN, 4 pole, 1450 rpm, can be used in hazardous locations where flammable and explosive gases exist. Meet the needs of various types of vibration machinery such as vibrating feeders, vibrating ore dischargers, vibrating conveyors, and vibrating screens.

SKU: ATO-EPNM-VBB-844

Qty:

30-day Returns

Free Shipping

Delivery date: 20-30 days

Overview
Related Video

Industrial shaker motor power 5.5 kW, 3 phase, 380V, rated current 11.52A, vibration motor has the advantages of beautiful appearance, waterproof and explosion-proof, safe and reliable.

Specification

Model	ATO-EPNM-VBB-844
Power	5.5 kW
Rated Current	11.52A
Voltage	380V
Phase	3 Phase
Pole	4 Pole
Speed	1450 rpm
Frequency	50/60 Hz
Force	84 kN
Insulation Class	F
Protection Level	IP55
Weight	305kg
Certificate	CE

2 Pole Explosion Proof Vibration Motor Dimension (unit: mm)

A	B	AB	BB	D	L	J	G	H	HD	d	Bolt
380	135	460	430	353	700	105	35	210	425	38	M36

5.5 kW Explosion Proof Vibration Motor Applications

Details

Tips: How to lubricate the vibration motor?

According to the formal requirements, the vibration motor needs to be lubricated once a month, and it is better to add 10-15 grams each time. Under normal circumstances, the new motor should be re-lubricated to the bearing after it is used continuously for about a week. Generally, the grease used is molybdenum disulfide No. 3 lithium base. The interval between the first lubrication and the next lubrication depends on the length of time the equipment is used. Depending on the situation, the general interval is about one month.

VFD Two-Wire Control Wiring with Push Button for Forward Motor

In this video we've guided you through how to do VFD control wiring with a self-lock push button switch to run the motor in forward direction. We've covered everything from wiring to programming and even a test run. So just watch it through and hope you'll find it informative and helpful.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.

Existing reviews of 5.5 kW Explosion Proof Vibration Motor, 4 pole

Powerful vibration motor

We bought this motor for a vibrating ore discharge machine where a strong excitation force is needed. The 84 kN rating was one of the main specifications we looked at. The 4-pole, 1450 rpm configuration works with our equipment, and the explosion-proof design adds an important safety feature for the installation area.

From: Timothy | Date: 14/09/2026

Was this review helpful? Yes No (0/0)

Strong vibration force and stable performance

Its dust and explosion protection gives peace of mind in hazardous workshops, and it runs cool even during continuous operation. Runs smoothly on feeders and screens with reliable, heavy-duty operation.

From: elio | Date: 05/01/2026

Was this review helpful? Yes No (0/0)
