    5 amp Fuse & Fuse Holder, 1000V/1500V DC

    4.5 out of 5 based on 2 reviews | Write a review
    The provided 5A fuse is a fast blow fuse for solar PV power generation systems. Low price 1000V/1500V DC fuses feature a DIN rail fuse holder for protection against overcurrent conditions, faults, and fire hazards.
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    5 amp fuse for sale online. It comes with a DIN rail fuse holder that provides overheat, overvoltage and overcurrent protection. 1000V/1500V DC fuse is specially designed for solar PV systems.


    • Model: ATO-FRPV-30
    • Fuse Type: Solar DC Fuse (Fast Fuse)
    • Fuse Holder Type: DIN Rail Fuse Holder
    • Pole: 1P
    • Rated Voltage: 1000V DC/1500V DC
    • Rated Current(A): 5A
    • Short-Circuit Breaking Capacity: 33kVA
    • Max Power Attenuation: 3.5kW
    • Protection Grade: IP20
    • Connection: 2.5-10mm2
    • Operation Ambient Temperature: -30℃ to +70℃
    • Resistance and Damp Hot: Class 2
    • Elevation: ≤2000m
    • Installation Way: TH35-7.5/DIN35 Rail Installation
    • RH (Relative Air Humidity): When+20℃, not exceed 95%, when+40℃, not exceed 50%.
    • Pollution Class: +3
    • Installation Environment: Where there is no obvious vibration and shock.
    • W x H x L: W18 x H89 x L90 mm


    • DC Fuse for Solar: It is a solar fuse that consists of a 5 amp DC fuse and a DIN rail fuse holder, equipped with a PV-specific flame-retardant housing material.
    • Two-Stage Spring Buckle: The solar PV fuse has a midway stop function, which is convenient for installing and removing the product.
    • 95 Alumina Porcelain Core: It has low-temperature rise and strong arc extinguishing performance.
    • Multiple Cooling Holes On The Side: This can enhance the air circulation inside the DC fuse, which is suitable for various high-temperature environments.

    Wiring Diagrams

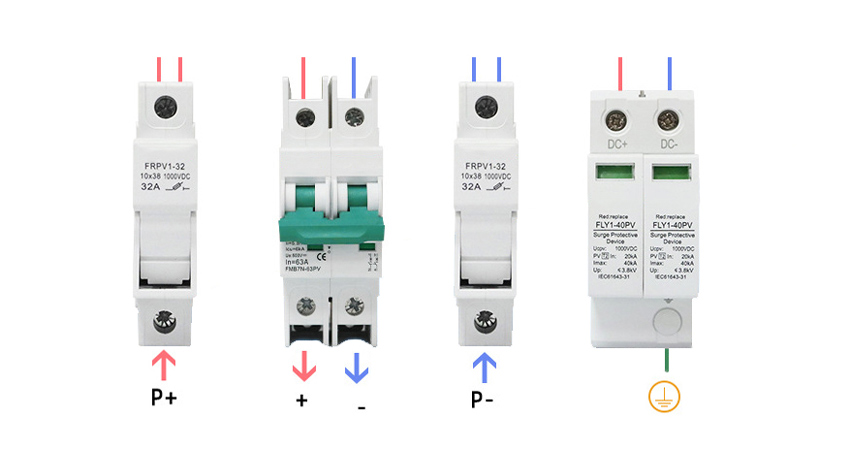

    DC fuse wiring diagramSolar fuse wiring diagram


    ATO DC fuse with a fuse holder is specifically designed for use in solar power systems operating on direct current (DC). Its primary purpose is to provide overcurrent and short-circuit protection within the system. By interrupting the circuit when the current exceeds safe levels, the PV fuse prevents damage to solar panels, charge controllers, batteries, inverters, and other components.

    Fuse applications

    Tips: What is a DC fuse?

    A DC fuse, also known as a direct current fuse, is a safety device designed to protect electrical circuits and equipment from excessive current flow. It is specifically used in DC (direct current) systems, which are commonly found in vehicles, solar power systems, battery banks, and other applications where DC power is utilized.

    Similar to an AC (alternating current) fuse, a DC fuse consists of a thin strip or wire made of a material that has a low resistance to electrical current. When the current passing through the fuse exceeds its rated capacity, the wire inside the fuse heats up and melts, breaking the circuit and interrupting the flow of electricity. This action prevents damage to the connected equipment and helps prevent electrical fires.

    DC fuses are rated for specific voltage levels and current capacities, and they come in various sizes and designs to accommodate different applications. It is important to select a fuse with the appropriate voltage and current ratings to ensure effective protection.

    It's worth noting that DC fuses and AC fuses are not interchangeable. DC circuits have unique characteristics that require fuses specifically designed for direct current. Therefore, it is essential to use DC-rated fuses when working with DC systems to ensure safety and proper functionality.
