Overview Video

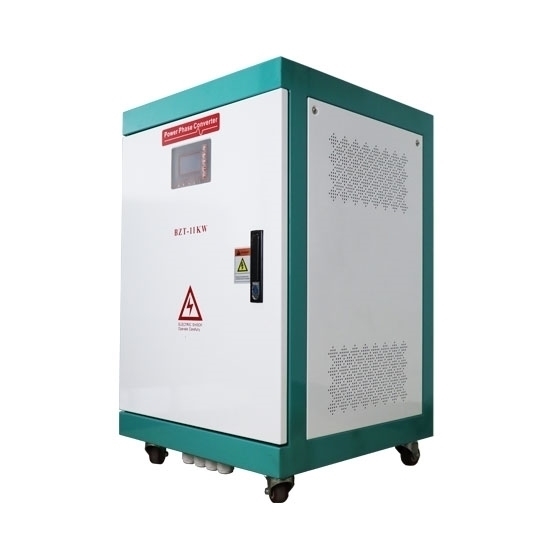

5 hp Single Phase to 3 Phase Converter

5 out of 5 based on 2 reviews | Write a review

$3,972.89

Affordable 5 hp power converter, 1 phase to three phase, with 4 kW input voltage is 120V/ 220V/ 380V/ 415V/ 480V AC, output voltage is 380V/ 400V/ 415V/ 480V AC, many voltages can be chosen, factory direct sale.

Input Voltage (Single phase) *
Output Voltage (Three phase) *
Input Frequency *
Output Frequency *
Enclosure Type *

SKU: ATO-PHC-05

Qty:

30-day Returns

Delivery date: 6-12 days

Reasonable price 4 kW power converter, with input & output frequency 50Hz/60 Hz, convert voltage 110V/ 120V/ 220V/ 230V/ 240V/ 380V/ 415V/ 440V/ 480V AC input to 220V/ 380V/ 400V/ 415V/ 440V/ 480V AC output, provides increased reliability and higher efficiency, make this converter ideal for a wide range of applications.

Note:

When the load is a motor, the phase converter should be more than 5~7 times the motor capacity.
When the load is soft start + motor, the phase converter should be more than 3 times the motor capacity.
When the load is VFD + motor, the phase converter should be more than 1.5~2 times the motor capacity.

5 hp Converter Specification

Model		ATOBZT-4kW
Power		5 hp (4 kW)
Weight		105kg
Output Waveform		Standard pure sine wave
Wide Voltage Input		80-320V AC (can customization)
Input Voltage		Optional: 110V/ 120V/ 220V/ 230V/ 240V/ 380V/ 415V/ 440V/ 480V single phase 2 wire
Input Current		12.3A at 230V (Input Current=Power/Input Voltage/1.414)
Output Voltage		Optional: 220V/ 380V/ 400V/ 415V/ 440V/ 480V 3 phase 4 wire+PE
Output Current		5.8A at 400V
Input Frequency		50Hz/ 60Hz
Output Frequency		50Hz/ 60Hz
Startup Mode Selection		Stable frequency step-down start or frequency, start can be selected on the LCD screen settings
Frequency Stability		≤0.01%
Load Regulation		≤3%
THD		≤2% (Linear load)
Phase Angle		120^°±1^°
Crest Factor Ratio		3:1
Circuit Mode		IPM module, SVPWM modulation
LCD Display		Output voltage, output current, output frequency, output power, fault code, time temperature, startup mode selection, setting parameters
Protection		Input under voltage, overvoltage, output over-current, short circuit, overheating etc.
Protective Reaction Time		≤2ms
Machine Efficiency		≥94%
Insulation Properties		1800V AC/ 10mA/1 min
Insulation Impedance		500V DC/ 50MΩ
Cooling Method		Forced air cooling
Noise		1m> 60dB
Ambient Temperature		-25℃~+55℃
Humidity		0~95% (No condensation)
Size	L	540mm
	W	540mm
	H	760mm

Single Phase

Split phase

Details

5 hp Converter Features

In this video, ATO will show static phase converter converting single-phase 220V to three-phase 380V. And this phase converter has VFD technology to start the three-phase asynchronous motor to reduce the impact on the power grid.

Single Phase to Three Phase Converter

In this video, the components of a single phase to three phase converter are introduced.

Phase Converter Powered Up and Running

The video shows the safe operation of an ATO phase converter. ATO offers phase converters from 4hp to 25hp that can convert single-phase power to three-phase power.

3-phase motor reverse connection

In this video, we have 120V/220V/240/380V/415V AC motors with power from 1hp~100hp, widely used to drive various industrial machines such as fans, pumps, machine tools.

Existing reviews of 5 hp Single Phase to 3 Phase Converter

ATO recommended 5hp single phase to three phase converter

If I use your 1-ph to 3-ph phase converter to run amotor with 3hp capacity, what will be recommended phase converter capacity to run this motor with activiting VFD start feature inside the phase converter?

From: Pike | Date: 22/04/2021

Was this review helpful? Yes No (0/0)

ATO Responded

5 hp single phase to 3 phase converter will be very okay.

Satisfied quality

This single phase to 3 phase converter is used for a CNC tube benders of our factory. The machines run quiet and compact after this unit applied. It is really easy to wire up the converter just follow the manufacturer's instructions. I am satisfied with the quality and safety of this converter.

From: Adam | Date: 06/03/2019

Was this review helpful? Yes No (0/0)
