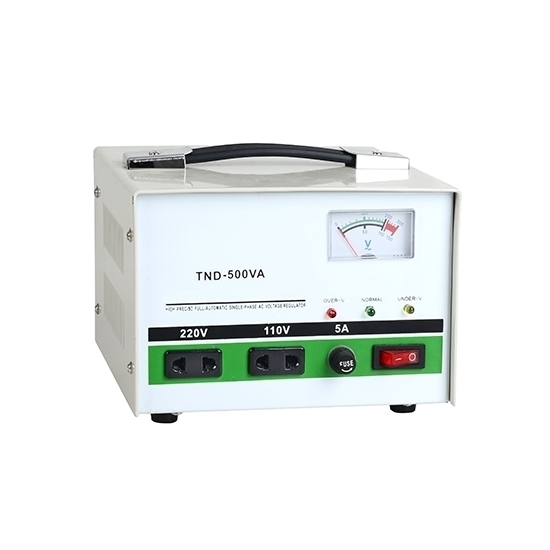

500 VA Single Phase Domestic Automatic Voltage Stabilizer

5 out of 5 based on 2 reviews | Write a review

$145.24

500 VA single phase AC automatic voltage stabilizer is based on relay control system & programmed control computerized technology for domestic purpose. It has many unique features which enable it to give high performance, better reliability and save electricity.

SKU: ATO-AVS-1P500V

Output Voltage (AC) *

Qty:

Delivery date: 10-20 days

Overview
Relative Video

Features

Wide input voltage: 150-250V AC or customize
The high accuracy of the output voltage: 220V±3%, other voltages can be customized
High technology: Programmed control computerized
Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection
Fashion design: LED display which can show all protection functions.such as input voltage, output voltage, temperature, loading, fault indication and so on.

Specifications

Product Name	Automatic Voltage Stabilizer
Model Number	ATOTND-500
Technology	Relay Control System+Programmed control computerized+control algorithmn relay "Cross zero"
Capacity	500 VA (The power capacity of voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	Single Phase
Input Voltage Range	±15% tolerance of output voltage
Output Voltage*	220V±3%/ 230V±3%/ 240V±3%/ 110V±6% (Optional)
Adjust Time	<1sec. (Against 10% input voltage deviation)
Frequency	50Hz/60Hz
Current Type	AC
Protection Over Voltage	<250±2V
Protection Lack Voltage	<185±2V
Ambient Temperature	-10°C~+40°C
Insulation Resistance	≥5MΩ
Temperature Protection	110℃±10℃
Relative Humidity	<90%
Wave Form Distortion	No additional wave form distortion
Efficiency	>95%
Display	LED
Protection Grade	IP20
Dielectric Strength	1500V/min
Certification	CE, RoHS
Warranty Period	12 months
Weight	2.5 Kg
Size	LxWxH=190x180x130mm
Note: The provided 500VA voltage stabilizer is 1-phase (L, N, G) in accordance with Europe standard. Split phase (L1, L2 + G) like USA standard can't be customized.

Applications

Tips: What is a Voltage Stabilizer?

Voltage stabilizer is a kind of power supply equipment which can automatically adjust the output voltage. Its function is to stabilize the power supply voltage which fluctuates greatly and cannot reach the requirement of electrical equipment within its set value range, so that various circuits or electrical equipment can work normally under rated working voltage. With the increasing number of household electrical equipment, the use of voltage stabilizer is more and more extensive. Domestic voltage stabilizer is mainly used to stabilize the voltage of TV, refrigerator, air conditioner, etc.

In this video ATO uses a voltage regulator and multimeter to test the output voltage of the 3 kva voltage stabilizer which has 140V to 270V AC input, 220V AC output. After testing, we may see that the output voltage is within 220V ± 6%, which is in line with the standard.

Existing reviews of 500 VA Single Phase Domestic Automatic Voltage Stabilizer

Reliable quality

I searched for a long time to found this 500 VA single-phase home automatic voltage regulator. It has been running for two weeks and there is no problem.

From: amanda | Date: 09/07/2021

Was this review helpful? Yes No (0/0)

Can you provide the voltage regulator I need?

Could you provide voltage regulator with customized specs as follows?
Capacity: 50 kVA
Frequency: 60Hz.
Input: Split phase (L1, L2 G), 480V±10%.
Output: Split phase (L1, L2 N), 240/120V
Current: 208A
Accuracy: ±1%

From: Naumann | Date: 25/09/2021

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, we can customize a voltage regulator with the same specs like your attached name plate "tag", as follows:
Model: ATO-AVS-50kVA
Capacity: 50 kVA
Frequency: 60Hz.
Input: Split phase (L1, L2 + G), 480V±10%.
Output: Split phase (L1, L2 + N), 240/120V
Current: 208A
Accuracy: ±1%
