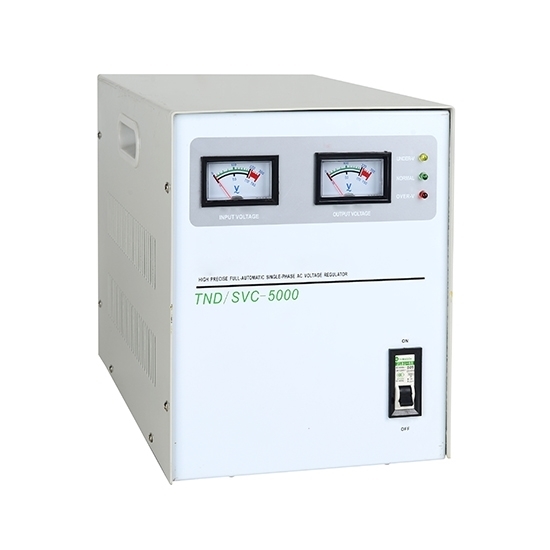

    5 kVA Single Phase Automatic Voltage Stabilizer for Home

    $338.57
    The provided LED display automatic voltage stabilizer is a kind of relay control stabilizer with 5 kVA, single phase, 140-260V AC input voltage range, 220V output supply with an accuracy of +/-8%. It has the advantages of high efficiency, reliable performance, is ideal for the domestic purpose.
    SKU: ATOSDR-5000

    5 kVA Single Phase Automatic Voltage Stabilizer for Home with features like automatic restart, turn-on delay, time-delay system and high & low voltage cut-off that provide efficient and reliable protection for home electronic appliances against voltage problems.

    5 kVA Voltage Stabilizer Specifications

    Product Name Automatic Voltage Stabilizer
    Model Number ATOSDR-5000
    Technology Relay Control System+Programmed control computerized+control algorithmn relay"Cross zero"
    Capacity 5 kVA
    Phase Single Phase
    Input Voltage Range 140-260V
    Output Voltage 220V±8%
    Adjust Time <1sec. (Against 10% input voltage deviation)
    Frequency 50Hz/60Hz
    Current Type AC
    Protection Over Voltage <250±2V
    Protection Lack Voltage <185±2V
    Ambient Temperature -10°C~+40°C
    Delay 5 second
    Insulation Resistance ≥5MΩ
    Temperature Protection 110℃±10℃
    Relative Humidity <90%
    Wave Form Distortion No additional wave form distortion
    Efficiency >95%
    Display LED
    Dielectric Strength 1500V/min
    Weight 11.35 Kg

    Single Phase Voltage Stabilizer Applications

    Single phase automatic voltage stabilizer applications4 tips for maintenance a voltage stabilizer

    1. The voltage stabilizer should be placed in well ventilated and dry indoors, without direct sunlight or corrosive gas.
    2. The voltage stabilizer power should be larger than total power of all power consumption equipment.
    3. The voltage stabilizer switch can't be used as master switch of devices. Turn on the voltage stabilizer switch first, then connect different power consumption equipment by an increasing order of power as there's power output. When turning off devices, follow a decreasing order of power and turn off the voltage stabilizer switch at last.
    4. The voltage stabilizer switch shall not be turned off frequently, interval between two turn-on shall not be more than 10 seconds, otherwise the voltage stabilizer would be protected by mistake, or even damaged.

    In this video ATO uses a voltage regulator and multimeter to test the output voltage of the 3 kva voltage stabilizer which has 140V to 270V AC input, 220V AC output. After testing, we may see that the output voltage is within 220V ± 6%, which is in line with the standard.
