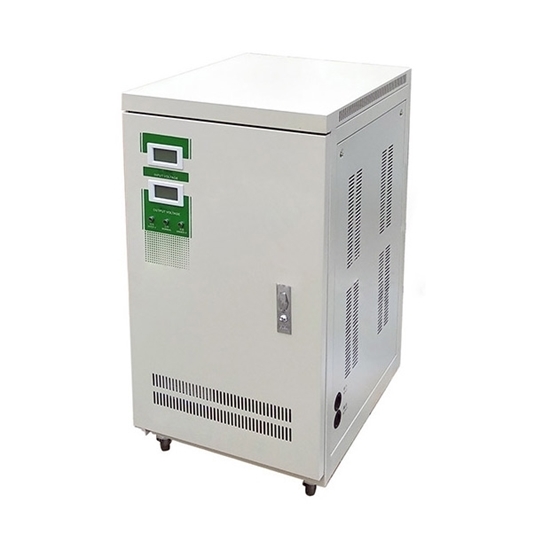

12 kVA Single Phase Automatic Voltage Stabilizer for Home

Write a review

$514.25

The provided 12 kVA LED display automatic voltage stabilizer is a kind of relay control stabilizer with single phase, 140-260V AC input voltage range, 220V output supply with an accuracy of +/-8%. It has the advantages of high efficiency, reliable performance to protect home applications.

SKU: ATOSDR-12000

Qty:

Overview
Relative Video

12k VA Domestic Voltage Stabilizer Features

Wide input voltage: 140-260V AC or customize
The high accuracy of the output voltage: 220V±8%, other voltages can be customized
High technology: Programmed control computerized
Perfect protection function: Over/low voltage protection, over-heat/load protection, short circuit protection
Fashion design: LCD display which can show all protection functions.such as input voltage, output voltage, temperature, delaytime, loading, fault indication and so on.

12 kVA Voltage Stabilizer Specifications

Product Name	Automatic Voltage Stabilizer
Model Number	ATOSDR-12000
Technology	Relay Control System+Programmed control computerized+control algorithmn relay"Cross zero"
Capacity	12 kVA
Phase	Single Phase
Input Voltage Range	140-260V
Output Voltage	220V±8%
Adjust Time	<1sec. (Against 10% input voltage deviation)
Frequency	50Hz/60Hz
Current Type	AC
Protection Over Voltage	<250±2V
Protection Lack Voltage	<185±2V
Ambient Temperature	-10°C~+40°C
Delay	5 second
Insulation Resistance	≥5MΩ
Temperature Protection	110℃±10℃
Relative Humidity	<90%
Wave Form Distortion	No additional wave form distortion
Efficiency	>95%
Display	LED
Dielectric Strength	1500V/min
Weight	11.35 Kg

Single Phase Voltage Stabilizer Applications

Tips: Overvoltage protection of the voltage stabilizer
When the output voltage exceeds the voltage stabilizer protection value (the phase voltage protection value is adjusted to 250V±5V at the factory), the voltage stabilizer will automatically protect, reduce or cut the voltage output voltage of the stabilizer, and the over-voltage indicator light will be on, the user should immediately shut down to check the grid voltage or the voltage stabilizer. When the voltage stabilizer is working, if the output voltage is jitter, it may be capacitive or the inductive load is too heavy. The user can adjust the switch on the circuit board in the case to eliminate the jitter (please turn off the load when adjusting). If the shaking cannot be eliminated, it may be caused by too much internal resistance of the input grid line or serious distortion of the input waveform.

If the voltage stabilizer is under overvoltage protection after starting, please check whether the stabilizer is adjusted normally and whether the grid voltage is out of the range of the voltage stabilizer. Switch on the voltage stabilizer and turn on the electrical equipment after the output voltage is stable.
Visit blog post Safety Tips for Using Voltage Stabilizer.

In this video ATO uses a voltage regulator and multimeter to test the output voltage of the 3 kva voltage stabilizer which has 140V to 270V AC input, 220V AC output. After testing, we may see that the output voltage is within 220V ± 6%, which is in line with the standard.
