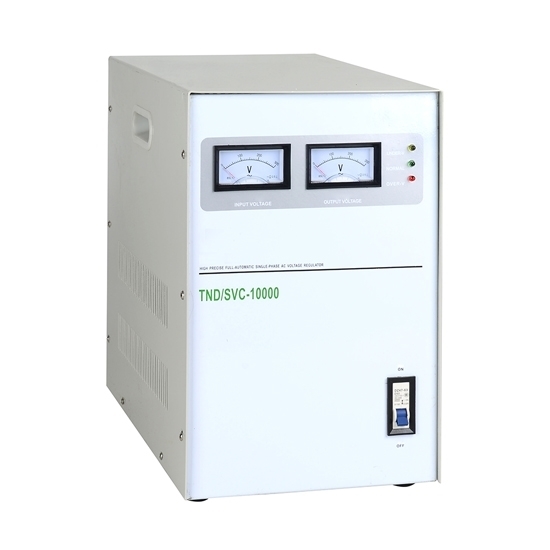

10 kVA Single Phase Automatic Voltage Stabilizer for Home

5 out of 5 based on 3 reviews | Write a review

$1,082.36

Single phase 10 kVA automatic voltage stabilizer, features automatic restart, turn-on delay, time-delay system and high & low voltage cut-off that provide efficient and reliable protection for home electronic appliances against voltage problems.

Phase *

1-phase (L, N, G)
split-phase (L1, L2+G)

Output Voltage *

Output Voltage (AC) *

SKU: ATO-AVS-1P10K

Qty:

30-day Returns

Delivery date: 10-20 days

Overview
Related Video

Cheap and high quality 10 kVA Single Phase AC Automatic Voltage Stabilizer for Home used with input voltage range 95-125V/ 190-250V, 110V±3%/ 220V±3% output voltage, easy to install and operate, protects the equipment or electronic appliances against voltage fluctuation.

Specifications

Product Name	Automatic Voltage Stabilizer
Model Number	ATOSVC-10000VA
Technology	Relay Control System+Programmed control computerized+control algorithm relay"Cross zero"
Capacity	10 kVA (The power capacity of the voltage stabilizer needs to be 1.5~2 times greater than the load power)
Phase	Single Phase
Input Voltage Range	±15% tolerance of output voltage
Output Voltage*	220V±3%/ 230V±3%/ 240V±3%/ 110V±3% (Optional)
Adjust Time	<1sec. (Against 10% input voltage deviation)
Frequency	50Hz/60Hz
Current Type	AC
Protection Over Voltage	<250±2V
Protection Lack Voltage	<185±2V
Ambient Temperature	-10°C~+40°C
Insulation Resistance	≥5MΩ
Temperature Protection	110℃±10℃
Relative Humidity	<90%
Wave Form Distortion	No additional waveform distortion
Efficiency	>95%
Display	LED
Protection Grade	IP20
Dielectric Strength	1500V/min
Certification	CE, RoHS
Warranty Period	12 months
Weight	28 Kg/ 70 Kg
Size	LxWxH=580x300x270mm
Note: The provided 10 kVA voltage stabilizer is 1-phase (L, N, G) by Europe standard. And we can customize the split phase (L1, L2 + G) like USA standard ("G" can only be grounded), just confirm with us by email after ordering.

Details

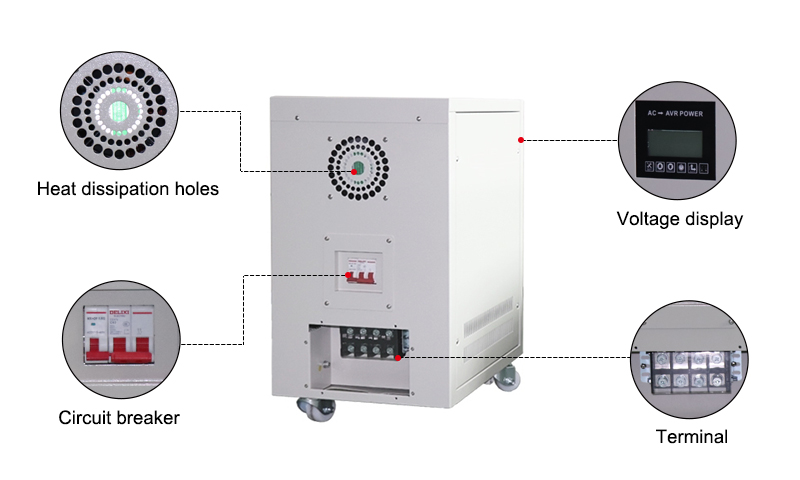

10 KVA Single Phase Automatic Voltage Stabilizer Details

Tips: Safety device of the voltage stabilizer

The voltage stabilizer below 3 kVA uses a fuse for overload or short circuit protection, and the AC voltage stabilizer above 5 kVA uses a small circuit breaker or small air switch for overload or short circuit protection. When the voltage stabilizer is working, if fuse is blown or the automatic air circuit breaker trips, it should be shut down to check the load and the voltage stabilizer.
Visit blog post Safety Tips for Using Voltage Stabilizer.

In this video ATO uses a voltage regulator and multimeter to test the output voltage of the 3 kva voltage stabilizer which has 140V to 270V AC input, 220V AC output. After testing, we may see that the output voltage is within 220V ± 6%, which is in line with the standard.

A voltage stabilizer is a device that automatically adjusts the output voltage to stabilize it. ATO will show you how to test a voltage regulator.

Existing reviews of 10 kVA Single Phase Automatic Voltage Stabilizer for Home

Input Voltage Range ±15% tolerance of output voltage

Hello, please tell me maximum input voltage for 1phase and output 240v /-3% ?

From: Lisa | Date: 19/01/2023

Was this review helpful? Yes No (0/0)

ATO Responded

ATO voltage stabilizer input voltage is ±15% of the output voltage, so when choose 240V output, the maximum input voltage is 276V.

Need your help before buying

I'm at a plant in CHicago where we have really wonky input voltages. My 120Vac outlets measure at about 138Vac. ConEd can't do anything about it. I'm trying to run a servo motor that needs 120V /- 10%. I'd like 10kva but could probably live with 5 kva 138V input 120V AC output. Can you help?

From: Earl Smith | Date: 24/05/2020

Was this review helpful? Yes No (0/0)

ATO Responded

Yes, based on your requirements, here is the recommended voltage stabilizer:
Power capacity: 10kVA voltage stabilizer.
Input: 1-phase, 120-140V.
Output: 1-phase, 120V.

Everything works as advertised

Got this voltage stabilizer for my 220V grinder mixer from India. Used twice with no problem. So far I like it very much. Hope it will continue. No noise, very impressed with the quietness.

From: Azbard | Date: 07/01/2020

Was this review helpful? Yes No (0/0)

Load more reviews...
