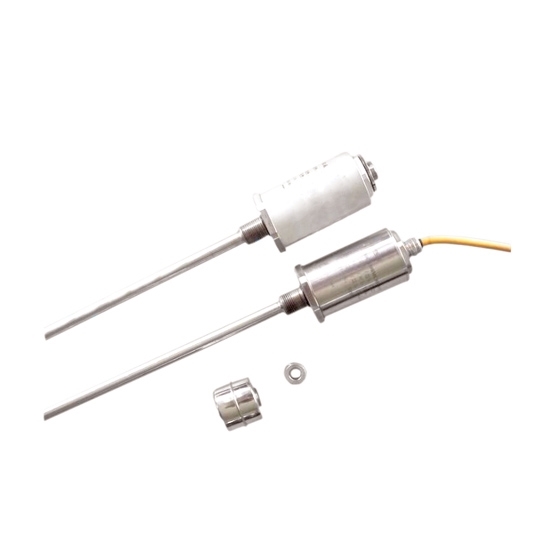

500mm Magnetostrictive Liquid Level Sensor

$949.86

Magnetostrictive liquid Level transducer for water level monitoring, high precision, no temperature drift, anti-jamming performance, long life, high temperature resistance, corrosion resistance, high pressure resistant.

SKU: ATO-MSLD-0500

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Magnetostrictive level sensor with measuring range 500mm is used for the water level monitoring in water treatment system. Magnetostrictive sensors also can be used in most industrial automation systems.

Specification:

Basics	Model	ATO-MSL-0500
	Measuring range	0~500 mm
	Shipping weight	3 kg
	Length	699.3 mm
	Diameter	50 mm
Technical parameters	Linearity	≤0.03%FS
	Repeatability	≤0.003%FS
	Resolution ratio	≤0.001%FS
	Hysteresis	≤0.001%FS
	Working Voltage	24V /12V DC
	Working current	Voltage /digital output type≤16mA; Current output type≤35mA
	Output method	0~5V / 0~10V / 4~20mA / 0-20mA RS485 binary digital signal / SSI gray code signal
	Product type	Normal type; Explosion-proof type; Anti-corrosion type
	Measuring rod material	0Cr18Ni9 (304) or 316L stainless steel (secial custom-made)
	Measuring rod diameter	Ф10mm
	Electronic bin material	1Cr18Ni9 (304)
		304 and PTFE casing outside (Anti-corrosion type, special custom-made)
		1Cr18Ni9Ti and protection cover outside (Anti-corrosion type, special custom-made)
	Connecting screw thread	M18×1.5; M20×1.5; 3/4-16UNF
	Type of lead wire	PVC shielded cable; aviation plug (not applicable to explosion-proof type)
	Measuring rod pressure	40MPa, 70MPa (Explosion-proof type)
	Temperature	T1: 0~+ 70℃, T2: -25~+80℃, T3: -40~+120℃
	Buffer area	Front-end of buffer 50.8mm (electronic bin), the end of the buffer 63.5mm (the buffer area can be custom-made)
	Vibration	100g, IEC standards 68-2-715g /10-2000Hz IEC standards 68-2-6
	Protection Class	IP67
	Explosion-proof level	Explosion-proof type: EXd II BT5

Installation diagram (unit: mm):
magnetostrictive level sensor PG7 connection

Tips: Advantages of magnetostrictive liquid level sensor for oil tank
High precision: waveguide pulse is sued for the magnetostrictive liquid level sensor, the time measuring the start pulse and end pulse during the work is used to determine the displacement, so the measurement accuracy is relatively high, which is the accuracy that cannot be easily achieved through other liquid level sensors.
High reliability: waveguide principle is used for the magnetostrictive liquid level sensor, so there is no mechanical moving part. Meanwhile, there is no friction and wear. The whole converter is enclosed inside the stainless steel tube, not contacting the measuring medium. Therefore, the sensor features higher reliability and longer service life.
High safety: magnetostrictive liquid level sensor features high explosion-proof performance and using safety, so it is especially applicable for measuring chemical raw materials and flammable liquids. When using for measurement, it is no need to open cover, the hidden dangers of manual measurement can be avoided.
Beneficial to the system’s automation work: the secondary instrument of the magnetostrictive liquid level sensor adopts standard output signal, so it is helpful to process the signal through microcomputer and automation degree of the whole measurement system can be increased.
Magnetostrictive liquid level sensor is easier to install and maintain: magnetostrictive level sensor is usually installed through the pipe orifice on the top of tank, so it is more suitable for underground tank, and storage tank that has been put into operation. Besides, normal production will not be influenced during the installation process.
