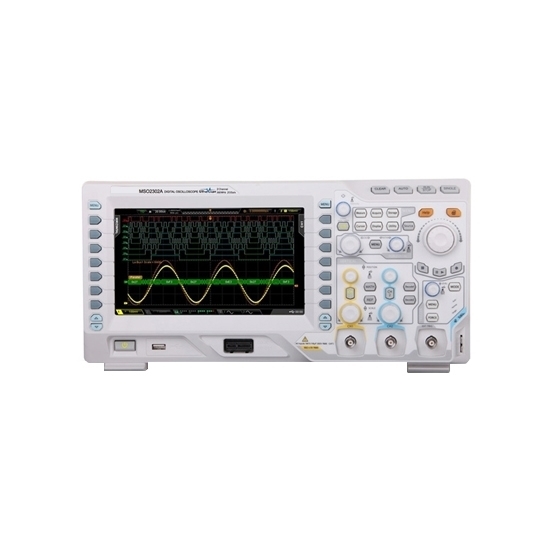

    70 MHz Digital Oscilloscope, 2 Channels, 2 GSa/s

    $729.48
    Two channel digital storage oscilloscope with 70 MHz bandwidth and 2 GSa/s sample rate which is designed and produced by Rigol. Up to 256 levels intensity grading waveform display, and wider vertical range is 500uV/div ~ 10V/div, lower noise floor, better for small signal capturing.
    SKU: ATO-DSMSO70
    *
    Delivery date: 6-12 days

    70 MHz Digital Oscilloscope Features

    • 2 channels, 70 MHz bandwidth
    • Sample Rate: Analog channel up to 2 GSa/s, digital channel up to 1 GSa/s (MSO model)
    • Memory Depth: Analog channel up to 14 Mpts (standard)/56 Mpts (optional), digital channel up to 14 Mpts (standard)/28 Mpts (optional)
    • Innovative ''UltraVision'' technology
    • Up to 52,000 wfms/s Waveform capture rate
    • 8 inch TFT (800x480) WVGA
    • A variety of Trigger Functions

    Models and Key Specifications

    Brand Name RIGOL
    Model DS2072A MSO2072A
    Number of Analog Channels 2
    Number of Digital Channels (For MSO Series) 16
    Bandwidth 70 MHz
    Max. Real-time Sample Rate Analog channel up to 2 GSa/s
    Digital channel up to 1 GSa/s (MSO Series)
    Max. Memory Depth Analog channel up to 14 Mpts (standard)/ 56 Mpts (optional)
    Digital channel up to up to 14 Mpts (standard)/ 28 Mpts (optional)
    Max. Waveform Capture Rate up to 52,000 wfms/s
    Real-time, Hardware Waveform Recording, Playback, and Analysis Functions Analog channel up to 65,000 frames
    Digital channel up to 32,000 frames (MSO Series)
    Multi-level Intensity Grading Display up to 256 levels
    Standard probes 2 sets PVP2350 350 MHz BW Passive Probe
    1 sets RPL2316 LA Probe (MSO series only)
    Dimension Width x Height x Depth = 362 mm x 180 mm x 131 mm
    Weight 6 Kg (Package Included)
    Packing Included 1 x Digital Oscilloscope; 2 x Probes; 1 x USB Cable; 1 x Power Cord; 1 x Quick Guide

    DS/MSO2000A Series Rigol Digital Oscilloscope Specs PDF

    Digital Oscilloscope Detail

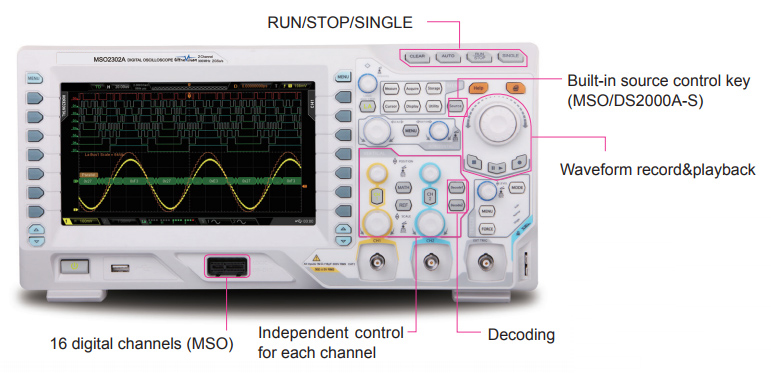

    DS2000 digital oscilloscope detailTips: The triggering function of oscilloscope
    The trigger of the oscilloscope can enable the signal to be scanned at the correct position point to make the signal characteristic clear. The trigger control button can stabilize the repeated waveform and capture the single waveform.
    The digital oscilloscopes provided by ATO has advanced trigger capability. The triggering ability mainly surrounds three aspects:

    1. The amplitude of the vertical direction, the transient peak trigger, the over pulse or the short pulse trigger, etc..
    2. The triggering of the time related triggering in the horizontal direction, the pulse width, the narrow pulse, the setting / holding time and other setting time width.
    3. The combination ability of the extended and conventional triggering functions, for example, video signal or other difficult to capture. The captured signal is triggered by combination of time and amplitude triggering conditions. The increase of trigger ability can greatly improve the flexibility of the test process and simplify the work, especially the current oscilloscope has greatly improved the trigger ability of the data bus, such as CAN, I2C and so on.
