8 Way RF Power Divider, 0.5~6 GHz

8 way RF coaxial power divider operates by dividing an input signal into multiple output signals with equal amplitude, utilizing various technologies such as microstrip or coaxial configurations. These power splitter and combiners handle high-power RF signals, providing consistent and reliable performance while maintaining signal integrity.

Specification

• Model: ATO-PS8-0.5/6-SE
• Frequency Range: 0.5~6 GHz (500~6000 MHz)
• Insertion Loss: ≤2.8dB (Excluding Theoretical Loss of 9.0dB)
• Input Standing Wave: Typ.1.18/ Max.1.40
• Output Standing Wave: Typ.1.13/ Max.1.25
• Isolation: Typ26dB/Min.18dB
• Amplitude Balance: ≤0.4dB
• Phase Balance: ±5°
• Impedance: 50 Ohms
• Port Connector: SMA-Female
• Withstand Power: 30W for Splitter, 2W for Combiner
• Working Temperature: -35℃~+75℃
• Surface Treatment: Sandblasting Guide
• Dimension: 113*115*12mm
• Weight: About 334g

Dimension

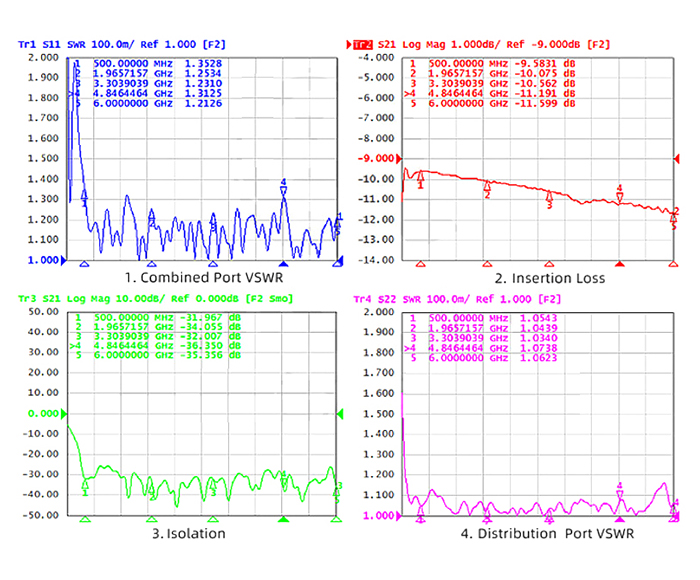

Radio Frequency (RF) Parameter Diagram

Tips: Can power dividers be used in phased array systems?
