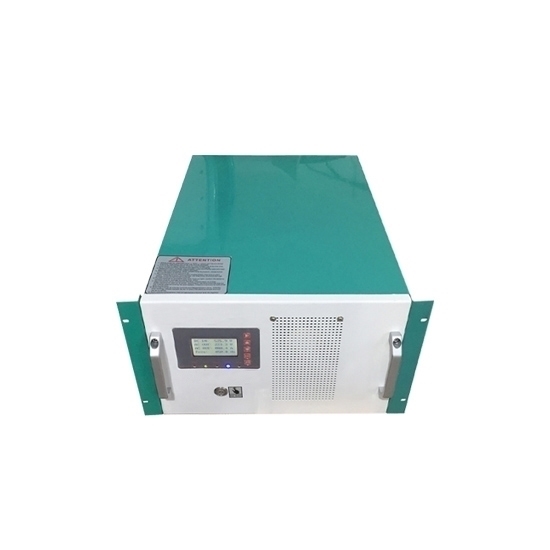

8000W Marine Power Inverter

Write a review

$5,443.22

8000W marine power inverter comes with 216V input DC voltage, 37A input DC current, 110/120/220/230/240V AC output voltage, 50Hz or 60Hz frequency, communication interface RS485, and pure sine wave output waveform. This boat inverter is used for inverting the DC power from the ship's lithium or lead-acid batteries into AC power to meet the ship's power needs.

Output AC Voltage (V) *
Output Frequency *
Communication Interface *

SKU: ATO-MPI-8KW

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Buy a 8000 watt boat inverter for new energy vessels such as yachts, cruise ships, pontoons, and sightseeing ships. Quality marine power inverter with 216V input DC voltage and 37V input DC current can invert the DC power from the ship's lithium or lead-acid batteries into AC power to meet the ship's power needs. 50Hz or 60Hz frequency and 110/120/220/230/240V output AC voltage can be selected.

Features

8000 watt marine inverter utilizes the U.S. DSP28335 control chip for fast running speed and high precision, with a conversion efficiency of over 92% and a built-in industrial frequency isolation transformer for strong anti-interference and impact resistance.
The boat inverter is equipped with over-voltage, over-current, short-circuit, and overheating warning devices, along with frequency conversion starting and reduced voltage soft start functions, suitable for high-power motor startups.
Good price marine power inverter features an LCD and LED alarm indicators for easy operation, provides a pure output waveform with less than 3% distortion, and supports single-phase power supply with output voltage range of 110/120/220/230/240V AC.

Specifications

Model		ATO-SDP-8KW
Isolation Mode		Low-Frequency Transformer
DC Input	Voltage Range (V DC)	216V (Contact Us for Other Voltage)
DC Input	Rated Current(A)	37A (Contact Us for Other Current)
AC Output	Rated Output Power	8kW (8000 watt)
	Output Waveform	Pure Sine Wave
	Rated Voltage	110/120/220/230/240V AC (Optional)
	Phases	Single Phase
	Rated Current (A)	23A
	Frequency	50Hz or 60Hz
	Rated Output Voltage Range (V)	110/120/220/230/240V AC (Optional)
	Power Factor (PF)	0.99
	Overload Ability	150%, 5 seconds
	Efficiency	>93%
	Waveform Distortion Rate (THD)	<3% (Linear load)
	Dynamic Response (0 to 100% Load)	5%，≤50ms
	Display	LCD
	Running Mode	Working Continuously
	Electrical Insulation Properties	2000V AC, 1min
Communication Interface		RS485 (Optional)
Protection Function	Protection	Input Reverse Polarity, Under Voltage, Overvoltage, Output Over current, Shortcircuit, Overheating, etc.
	Cooling Method	Fan-cooled
	Short-circuit Protector	No Automatic Recovery Need to Restart the Machine
Working Environment	Noise (1m)	≤50dB
	Degree Of Protection	IP20 (Indoor)
	Working Altitude (m)	≤2000
	Working Temperature	-25~+55℃
	Relative Humidity	0~90% (Non-Condensing)
Rack Mounted Type	DepthWidth Height	460680340mm
Stand Type	DepthWidth Height	500500800mm

Applications

Marine power inverter applications

Tips: Advantages of marine inverters

Quiet Operation: Marine inverters operate silently, ensuring a peaceful onboard environment without the noise associated with generators.
Versatility: They can power a wide range of appliances and electronic devices, allowing for the convenience of using household amenities while on the water.
Efficiency: Marine inverters efficiently convert DC power from the boat's battery system into AC power, maximizing energy usage and reducing waste.
Integration: Inverters seamlessly integrate with the boat's electrical system, providing a reliable power source that can be easily managed and monitored.
Low Maintenance: Compared to generators, marine inverters require minimal maintenance since they have fewer moving parts and no internal combustion engine.
Environmental Friendliness: Marine inverters produce no emissions, contributing to a cleaner and more sustainable boating experience.
