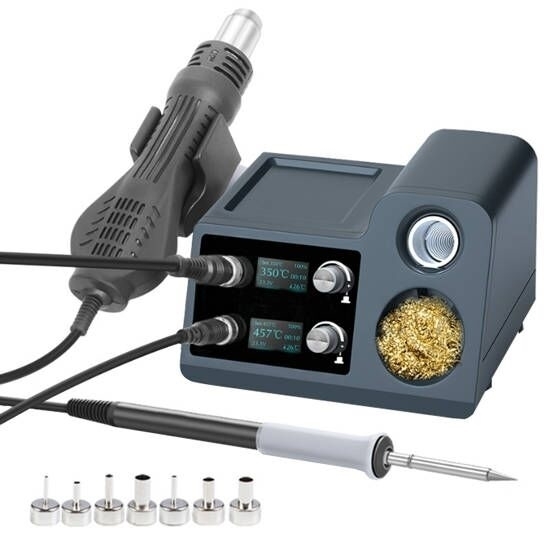

900W Desoldering Station, Variable Temperature

5 out of 5 based on 1 reviews | Write a review
$236.78
The cost-effective desoldering station is equipped with a 60W soldering iron and 700W soldering air gun. 900W intelligent desoldering station with adjustable temperature settings and digital display allows fine tuning of heat to suit different soldering requirements, ensuring clean and accurate solder removal without damaging delicate components.
SKU: ATO-DS-8245
30-day Returns
Free Shipping
Delivery date: 6-12 days

Low-cost desoldering station features variable temperature control and automatic shutdown. 900W desoldering station features an ergonomic handle and lightweight construction to reduce fatigue during extended use.

Specification

Model ATO-DS-8248
Dual Screen Digital display Yes
Auto Shutoff Yes
Power Consumption 900W
Melting Time 2s
Dimension 170*130*100mm
Net Weight 536g
Soldering Iron
Power 60W
Output Voltage DC 24V
Control Method Knob Adjustment
Display Form Dual-screen digital display
Temperature Control Range 100-400°C
Handle Cable Length 1.3 Meters
Soldering Iron Length 43mm
Soldering Gun
Airflow Type Gentle Brushless Blower
Power Consumption 700W
Air Flow ≤ 120L /min
Temperature Range 100- 550°C
Wind Way Whirlwind
Display Form Digital Display
Noise ≤45dB
Handle Cable Length 1 Meter


Features

  • Precision and Control: 800W desoldering station offers precise and controlled solder removal.
  • Temperature Control: Desoldering stations feature adjustable temperature controls, allowing users to set the optimal temperature for different soldering tasks.
  • Vacuum Suction: A desoldering station is a built-in vacuum suction mechanism.
  • Noise Reduction Design: The nozzle spiral guide air can reduce the noise, not direct blowing work, heating air more uniform and stable.

Details

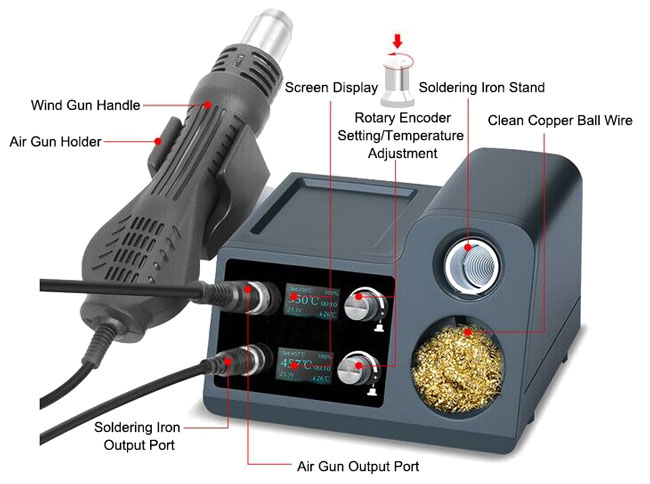

Desoldering station details

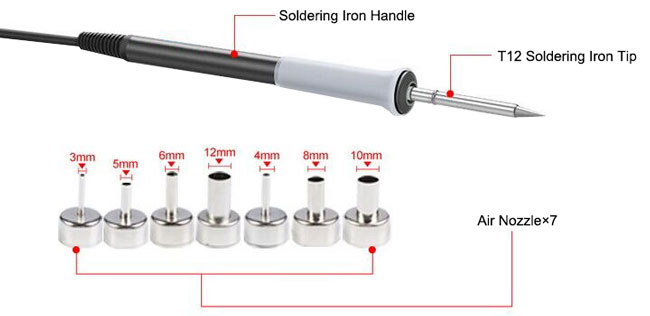

Soldering iron handel details

Applications

The application areas of a desoldering station include electronic repair and rework, circuit board maintenance, and soldering/desoldering components for various electronic devices.

Desoldering station applications

Tips: How to clean a desoldering station?

  • Power off and unplug the desoldering station: Before you begin cleaning, make sure the station is turned off and disconnected from the power source to avoid any accidents.
  • Disassemble the components: Depending on the design of your desoldering station, you may need to disassemble it to access the parts that require cleaning. Refer to the manufacturer's instructions or user manual for guidance on how to disassemble your specific model.
  • Clean the nozzle or tip: The desoldering nozzle or tip is the component that comes into direct contact with the solder. It can get clogged with residue over time. Remove the nozzle or tip from the desoldering tool and clean it using a brass wire brush or a specialized desoldering tip cleaner. Gently scrub away any solder residue until the tip is clean. Be careful not to damage the tip.
  • Clean the filter: Many desoldering stations have a filter to trap solder and debris. Locate the filter and remove it from the station. Dispose of the collected debris properly. If the filter is washable, rinse it with warm water and mild soap to remove any remaining residue. Allow it to dry completely before reinserting it.
  • Clean the vacuum chamber: The vacuum chamber is part of the desoldering station that collects the solder and debris. Use a small brush or a soft cloth to clean the inside of the vacuum chamber. Remove any loose debris or solder that may have accumulated.
  • Reassemble the components: Once all the components are clean and dry, reassemble the desoldering station following the manufacturer's instructions. Make sure all the parts are securely in place.
  • Perform a test run: After cleaning and reassembling the desoldering station, perform a test run to ensure it is functioning properly. Check that the suction is strong and the temperature control is working as expected.

Remember to always consult the user manual provided by the manufacturer for specific instructions and any precautions unique to your desoldering station model.
