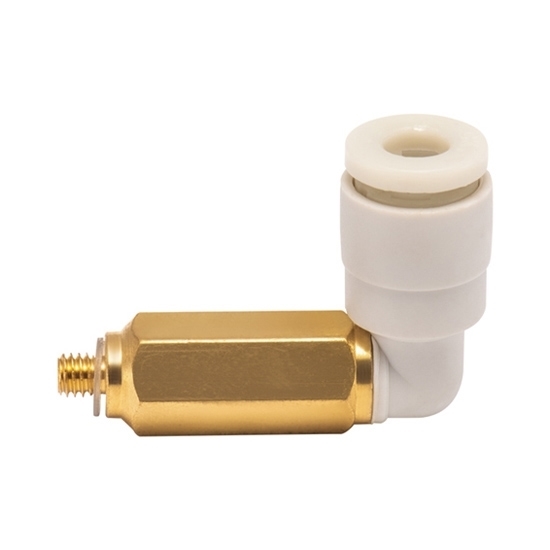

Air Hose Quick Connector, M Type

5 out of 5 based on 2 reviews | Write a review

$3.18

Air hose quick connector has 03/04/06 mm input cannula diameters for selection. M-type hose connects are designed for water and air. Well sealed quick connect fitting can be connected to hoses in seconds without any tools, suitable for various watering devices such as nozzle, sprayers, sprinklers.

Input Cannula Diameter *
Output Cannula/Thread Diameter (03) *
Output Cannula/Thread Diameter (04) *
Output Cannula/Thread Diameter (06) *

SKU: ATO-QC-M05

This product has a minimum quantity of 50

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Quick Connector Dimensions

Low-price quick connector is an air hose quick connector that has 03/04/06 mm input cannula diameters. Faster connector is M type, used for RVs, campers, faucets, lawn sprinklers, spigots, and faucets. High-quality plastic shell makes the air hose quick connector more smooth and wear-resistant.

Specifications

Model	ATO-KJW
Fluid	Air/Water
Material	Brass
Maximum operating pressure	1.0MPa
Operating vacuum pressure	-100kPa
Proof pressure	3.0MPa
Ambient and fluid temperature	Air:-5~60°C, Water:0~40°C
Tubing material	Nylon, Soft nylon, Polyurethane
Tubing O.D.	Φ3, Φ3.2, Φ4, Φ6

Quick Connector Details

Applicable tubing O.D (mm)	Model	Weight (g)
Φ3	ATO-KJW03-M3	5
	ATO-KJW03-M5	6.2
	ATO-KJW03-M6	6.3
	ATO-KJW03-01S	13.4
Φ3.2	ATO-KJW23-M3	5
	ATO-KJW23-M5	6.2
	ATO-KJW23-M6	6.3
	ATO-KJW23-01S	13.4
Φ4	ATO-KJW04-M3	5.1
	ATO-KJW04-M5	6.4
	ATO-KJW04-M6	6.5
	ATO-KJW04-01S	13.6
Φ6	ATO-KJW06-M5	6.9
	ATO-KJW06-M6	7
	ATO-KJW06-01S	13.2

Tips: 6 points for choosing a quick connector

When buying a quick connector, you need to pay attention to the following six points.

The type and temperature of the fluid
The pressure of the fluid. Please select a quick connector with pressure resistance suitable for the fluid pressure.
The structure of the automatic opening/closing valve. Please select the quick coupler with the valve structure suitable for piping use.
Environment for use of a quick coupling. Select a quick coupling with a structure and material suitable for the environment.
Make sure that the connection thread of the quick coupling is the same.
The shape and size of the installation.

In short, in addition to the above 6 points to be fully considered, the product quality and price of quick couplings are also important.

Quick Connector Dimensions

Existing reviews of Air Hose Quick Connector, M Type

Useful for water/air hoses

I have used quick connectors a few times and it works well. They easily connect the water hoses and air hoses, give me a good experience, 100% recommend.

From: Verdier | Date: 30/05/2022

Was this review helpful? Yes No (0/0)

Well made connector

Well made, no leakage, easy to disconnect. After using these quick connectors for several weeks, I haven't seen any leakage. 100% recommended.

From: Ellertson | Date: 29/05/2022

Was this review helpful? Yes No (0/0)
