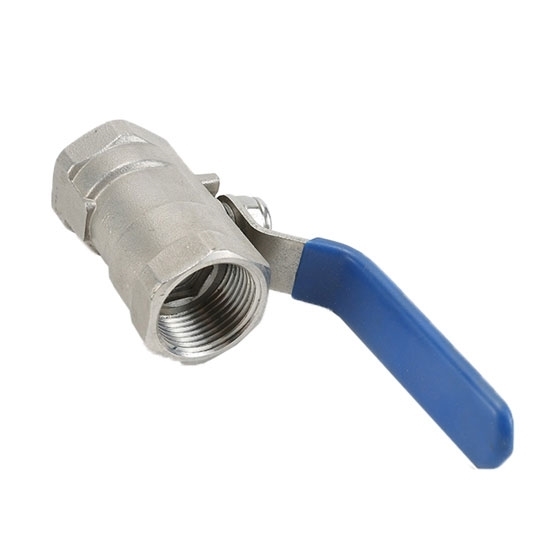

    1 Piece Ball Valve, 1/4 Inch

    5 out of 5 based on 1 reviews | Write a review
    $29.68
    Low cost 1 piece ball vavle, 1/4 inch size, body and ball stainless steel 304/316, high hardness, not easy to corrode and rust, threaded BSP, suitable for petroleum, chemical industry, power generation, papermaking, aviation and other fields.
    SKU: ATO-BV-Q11F-14
    *
    This product has a minimum quantity of 5

    1/4" stainless steel ball vavle, 1 piece, internal entry blow-out proof stem, lever handle with locking device, can be used in general working media such as water, solvents, acids and natural gas.

    Specification

    Model ATO-BV-Q11F-14
    Connection Method Internal Thread
    Material 304 Stainless steel/316 Stainless steel
    Operating Temperature -20℃~+150℃
    Pressure Rating 1000PSI W.O.G
    Pressure Test API598
    DN 8
    NPS 1/4 Inch
    FxF 40
    φd 5
    h1 33
    I1 61
    CV Factor 4
    Torqur (N.m) 13.83
    Weight 1 kg
    Warranty 12 Months
    Certificate ISO 9001: 2008

    1/4 Inch Ball Valve Dimension (unit: mm)
    Ball valve dimension
    1 Piece Ball Valve Part List

    No. Description Material
    1 Body CF8M
    2 Cap CF8M
    3 Stem SS316
    4 Ball CF8M
    5 Seat PTFE
    6 Joint Gasket PTFE
    7 Thrust Washer PTFE
    8 Stem Packing PTFE
    9 Washer SS304
    10 Spring Washer SS304
    11 Stem Nut SS304
    12 Locking Device SS304
    13 Handle SS304
    14 Handle Sleeve Plastic

    Stainless Steel Ball Valve Applications
    Ball valve application
    Tips: The working principle of 2 piece ball valve

    The working principle of 304 two-piece ball valve is to make the valve unblocked or blocked by rotating the valve. The ball valve switch is light, small in size, can be made into a large diameter, reliable in sealing, simple in structure, easy to maintain, the sealing surface and the spherical surface are often closed, and it is not easy to be eroded by the medium. It is widely used in various industries.

    Existing reviews of 1 Piece Ball Valve, 1/4 Inch
    Works great for my application
    Mounting the ball valve, on the pump of my brewing equipment, allows me to control the flow.  The valve is watertight, , good quality, easy to install, highly recommended.
    From: Jazz | Date: 07/04/2022
    Was this review helpful? Yes No (0/0)
