Bipolar Stepper Driver for 2 phase Nema 23, 34 Stepper Motor

5 out of 5 based on 1 reviews | Write a review

$121.86

ATOSH8611A is 2-phase stepper motor driver, it's widely used in semiconductor, electronic processing equipment, laser processing, medical equipment and small cnc. Capable of driving 2 phase Nema 23, 34 closed-loop hybrid stepper motors.

Input Pulse Voltage *

SKU: ATO-STEP-D2334

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video

2-phase closed-loop bipolar microstep driver, DC 24-80V for Nema 23, 34 2 phase stepper motor, manufacturer direct sale.

Specifications

Basics Information
Model	ATOSH8611A
Weight	0.5 kg
Phase	2
Chopping Frequency	>35 KHz
Input Voltage	DC 24-80V
Input Current	<6 A
Output Current	2.8-7.8 A
Consumption	80 W
Environment
Operation Environment	Temperature		-5℃~+40℃
	Humidity		<80% RH
	Vibration		5.9m/s²(Max.)
Storage Environment	Temperature		-40℃~+55℃
	Humidity		<93% RH
Function Description
Functions	Operation Instructions
Signal Interface	PUL	PUL+ is the positive end of the control pulse signal PUL- is the negative end of the control pulse signal
	DIR	DIR+ is the positive end of directional signal DIR- is the negative end of directional signal
	ENA	ENA+ is the positive end of enabling signal ENA+ is the negative end of enabling signal
Motor Interface	A	A+ is connected with the positive end of the A phase winding of the stepping motor A- is connected with the negative end of the A phase winding of the stepping motor
	B	B+ is connected with the positive end of the B phase winding of the stepping motor B- is connected with the negative end of the B phase winding of the stepping motor
	When the A and B two phase windings are switched, the motor direction is reversed
Indicator Light	1. The green light is the power indicating lamp. When the drive is powered on, the green light is always on. 2. The red light is the fault indicating lamp. When the overvoltage and overcurrent faults occur, the trouble lamp is always on.
Note: The default input signal is 5V pulse signal. When 24V input signal is required, please in series with1.8-2kΩ resistance.

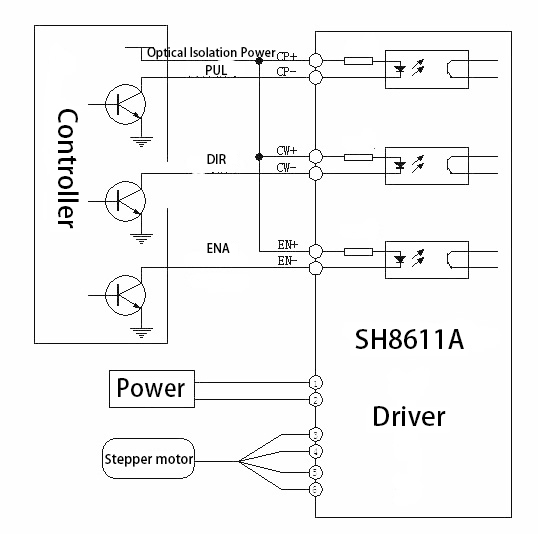

Driver Wiring Diagram

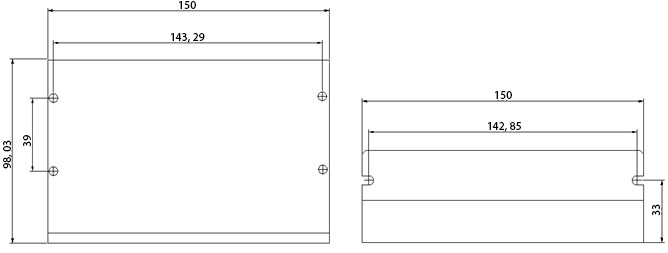

Installation Size (Unit: mm)

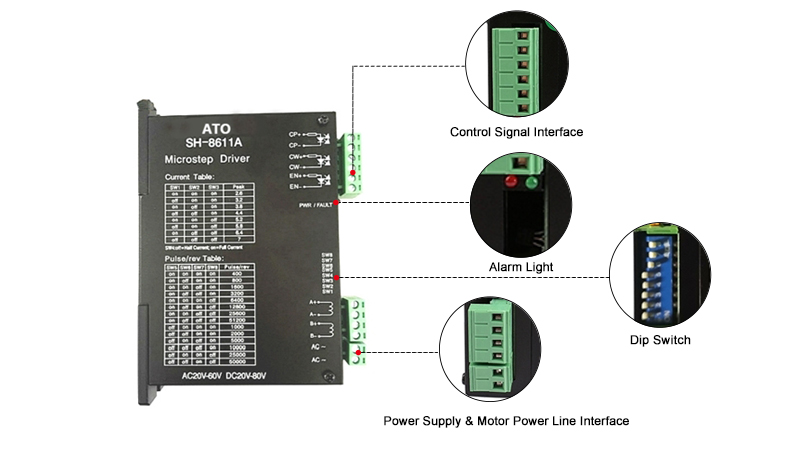

Details

Tips: Subdivision control of stepper motor

Stepper motor subdivision control is precisely controlled by the driver of stepper motor phase current. The two-phase motor, for example, if the rated current of motor is 3A, if you are using a conventional drive (such as a common mode of constant current chopper) driving the motor, every step motor running, in its winding current will mutations from 0 to 3A or 3A mutation to 0, the great changes in phase current, is bound to cause vibration and noise of motor running. If using subdivision driver, under the conditions of 10 subdivision drive the motor, step motor each runs a micro, current changes in the winding is only 0.3A, rather than 3A, and the law of electric current is a sine curve changes, thus greatly improves the motor vibration and noise, therefore, on the performance of advantages is the real advantages of segmentation. Due to the precise control of the phase current of the motor, the drive should have high technical requirements and technical requirements.

How to control a stepper motor using a PLC and HMI?
This video shows you how to configure a PLC, HMI, motor driver, and proximity sensor to perform Origin Return (OPR) control of a stepper motor.

Common Stepper Motor Troubleshooting Problems and Tips
In this video, 9 common problems that can occur with stepper motors are discussed, and expert advice is provided for diagnosing and effectively resolving these problems. If you have ever experienced problems with your stepper motor or want to be prepared for any future problems, this video is a must watch.

Existing reviews of Bipolar Stepper Driver for 2 phase Nema 23, 34 Stepper Motor

Great for driving 2 phase NEMA 34 stepper motor

The driver is great, I used it to drive a ATO 2 phase NEMA 34 stepper motor in the Y axis of my 3D printer. This driver works perfectly with standard bi-polar NEMA 23 stepper motors as well.

From: Escalus | Date: 04/07/2018
