    Cable Drag Chain, 15 x 30mm

    $49.72

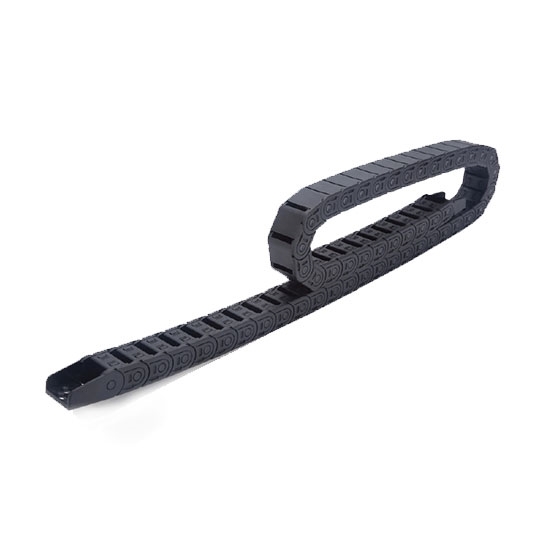

    Cable drag chain for sale, plastic material, inner height 15mm, inner width 15mm, 20mm, 30mm, 40mm or 50mm, drag chain length is optional from 1meter to 10 meters. Type semi closed inner opening, easy installation.
    SKU: ATO-CDC-T15
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Plastic cable drag chain for CNC router mill, light weight, smooth operation and simple installation. Cable carrier length can be customized.

    Note:
    cable drag chain length can be customized, please contact us.

    Specification

    Model ATO-CDC-T1515 ATO-CDC-T1520 ATO-CDC-T1530 ATO-CDC-T1540 ATO-CDC-T1550
    Inner Height 15mm 15mm 15mm 15mm 15mm
    Inner Width 15mm 20m 30mm 40mm 50mm
    Outer Height 20mm 20mm 20mm 20mm 20mm
    Outer Width 25mm 30mm 40mm 50mm 60mm
    Bending Radius ® 28, 38, 48
    Open Mode Semi closed inner opening
    Aperture (φ) 4 x 7Lmm
    Connector Hole Distance A=9.5mm,B=9.5mm, C=6.5mm A=10mm, B=4mm, C=6.5mm A=20mm, B=3.5mm, C=12mm A=28mm, B=4.5mm, C=14mm A=40mm, B=4mm, C=12mm
    Connector Ordering Model 15.15.BF.12PZ.(figure1) 15.50.BF.12PZ.(figure2) 15.30.BF.12PZ.(figure3) 15.40.BF.12PZ.(figure3) 15.50.BF.12PZ.(figure3)
    Weight 0.26kg 0.3kg 0.34kg 0.38kg 0.44kg

    Cable Drag Chain Installation Dimension (unit: mm)

    Plastic cable drag chain dimension

    Drag chain 10 x 20 mm dimension

    Pitch= 20.7mm, excluding the number of joints per meter= 49, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

    R 18 28 38
    H 51 71 91
    D 47 57 67
    K 101 131 164

    Tips: Oil-resistant cables Application

    Oil-resistant cables are suitable for industrial and mining enterprises such as metallurgy, petroleum, chemical industry, and power plants. They are used as connecting wires for various electrical appliances, instruments and automatic devices under high temperature conditions and harsh environments (such as acid, alkali, and low temperature conditions of oil and water) for control, It is used for monitoring and protection circuit loading occasions. It is also suitable for damp or indoors, such as machine tools, woodworking grinders, etc.
