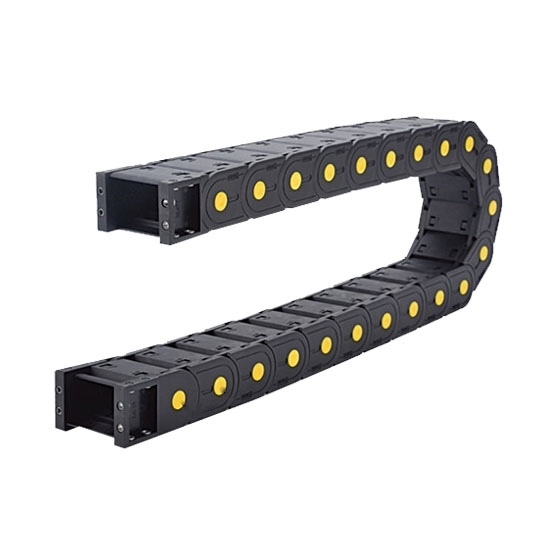

Cable Drag Chain, 30 x 50mm

5 out of 5 based on 2 reviews | Write a review

$49.72

Plastic cable drag chain for sale, inner high 30mm, inner width 25mm, 38mm, 50mm, 60mm to 103mm. Outer height 45mm, outer width 43mm, 56mm, 75mm to 121mm for selection. The drag chain is used for CNC machine tools, electronic equipment, and transportation equipment.

Model *
Length *
Bending Radius *

SKU: ATO-CDC-H30

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

The drag chain has a very good protective effect on the cable, easy to install, high quality, can be used in outdoor environment. Cable drag chain inner size 1.18 x 1.96 inch, outer size 1.77 x 2.67 inch.

Note: cable drag chain length can be customized, please contact us.

Specification

Model	ATO-CDC-H3025	ATO-CDC-H3038	ATO-CDC-H3050	ATO-CDC-H3057	ATO-CDC-H3060	ATO-CDC-H3077	ATO-CDC-H30103
Inner Height	30mm	30mm	30mm	30mm	30mm	30mm	30mm
Inner Width	25mm	38mm	50mm	57mm	60mm	77mm	103mm
Outer Height	45mm	45mm	45mm	45mm	45mm	45mm	45mm
Outer Width	43mm	56mm	68mm	75mm	78mm	95mm	121mm
Bending Radius (R)	55mm, 75mm, 100mm, 125mm, 150mm, 175mm
Open Mode	Bridge type	Bridge closed					Bridge type
Pitch Distance	46mm
Bridge Weight	1.06kg	1.12kg	1.17kg	1.2kg	1.21kg	1.26kg	1.46kg
Closed Weight	/	1.24kg	1.34kg	1.45kg	1.46kg	1.6kg	/

Cable Drag Chain Installation Dimension

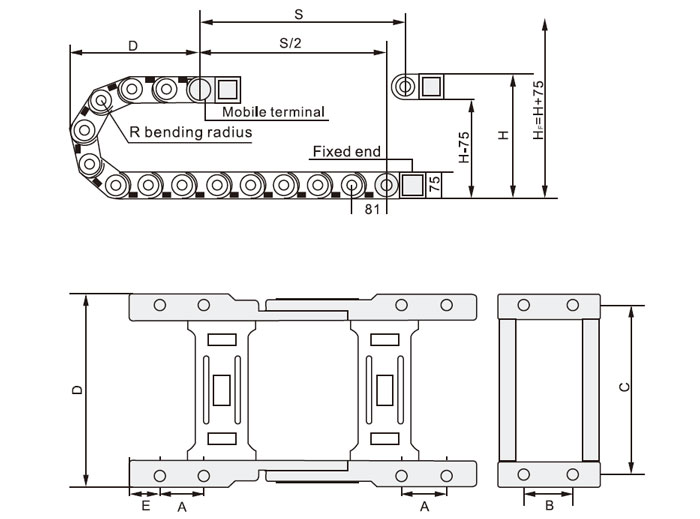

Cable drag chain 30 mm dimension

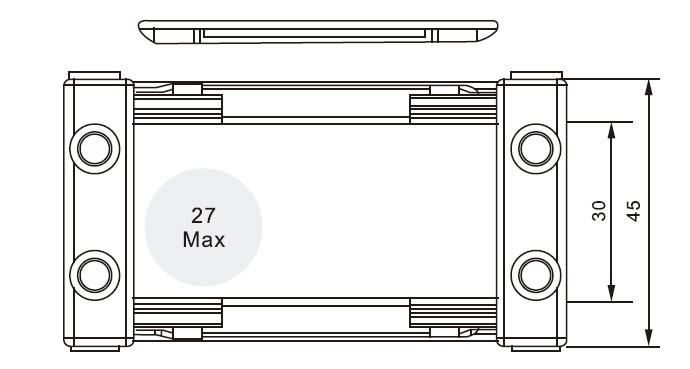

Cable drag chain 1.18 inch dimension

Dimension	ATO-CDC-H3025	ATO-CDC-H3038	ATO-CDC-H3050	ATO-CDC-H3057	ATO-CDC-H3060	ATO-CDC-H3077	ATO-CDC-H30103
A	16
B	16
C	38	51	63	70	73	90	116
D	46	59	71	78	81	98	125
E	9.5
Aperture (φ)	6

Pitch= 46.4mm, excluding the number of joints per meter= 22, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R	55	75	100	125	150	175
H	155	195	245	295	345	395
D	124	144	169	194	219	244
K	290	353	432	510	589	667

Tips: Type of cable drag chain
According to the drag chain material can be divided into steel drag chain, steel aluminum drag chain, plastic drag chain, stainless steel drag chain, nylon drag chain.
According to the form of cable drag chain can be divided into bridge towing chain, multi-linked bridge towing chain, closed towing chain, muffled towing chain, open towing chain, universal towing chain, tank chain, threading chain, etc..
