    Cable Drag Chain, 60 x 100mm

    $98.46

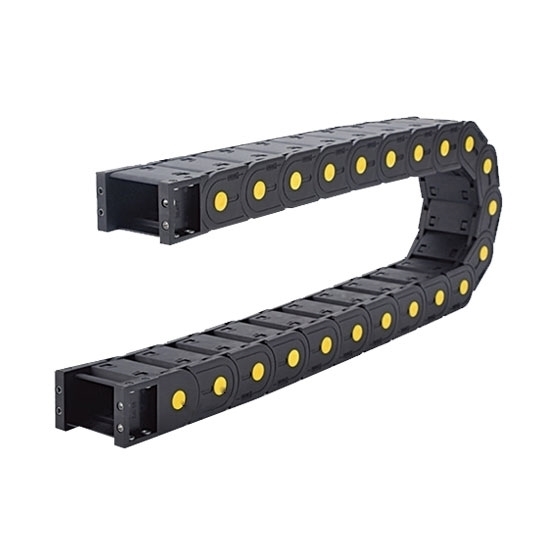

    Plastic cable drag chain inner size 60 x 60mm, 60 x 100mm, 60 x 200mm and 60 x 250mm to choose from, cable carrier length can be customized from 1 meter to 10 meters. Smooth movement and low noise.
    SKU: ATO-CDC-H60
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    60 x 100mm black cable drag chain for sale, inner height 60mm, inner width 100mm, cable drag chain length can be customized. Widely used in CNC machine tools, electronic equipment, counting devices and other equipment.

    Specification

    Model ATO-CDC-H6060 ATO-CDC-H60100 ATO-CDC-H60150 ATO-CDC-H60200 ATO-CDC-H60250
    Inner Height 60 60 60 60 60
    Inner Width 60 100 150 200 250
    Outer Height 80 80 80 80 80
    Outer Width 91 131 181 231 281
    Bending Radius ® 125, 150, 200, 250, 300, 400, 500
    Open Mode Bridge type Bridge closed Bridge closed Bridge type Bridge type
    Pitch Distance 66
    Bridge Weight 2.65kg 2.81kg 2.98kg 3.26kg 3.39kg
    Closed Weight / 3.43kg 3.82kg 4.45kg /

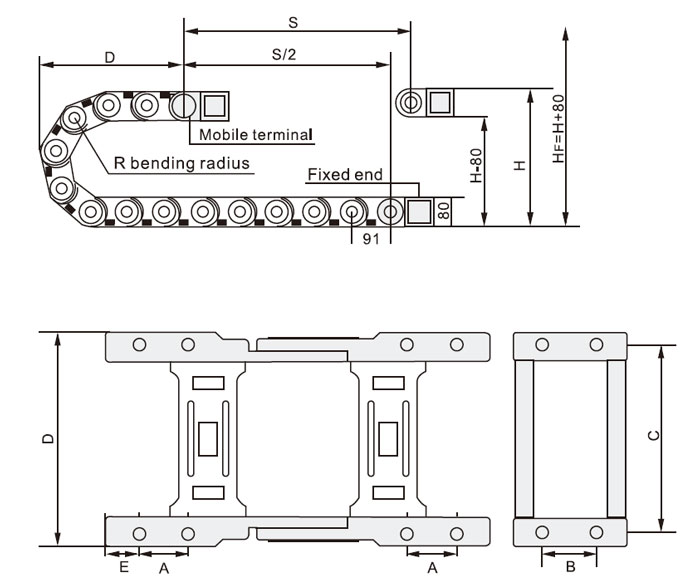

    Cable Drag Chain Installation Dimension (unit: mm)Drag chain 60 x 100mm dimension

    Dimension ATO-CDC-H6060 ATO-CDC-H60100 ATO-CDC-H60150 ATO-CDC-H60200 ATO-CDC-H60250
    A 30 30 30 30 30
    B 42 42 42 42 42
    C 82 122 177 222 272
    D 97 137 187 237 287
    E 16 16 16 16 16
    Aperture (φ) 8 8 8 8 8

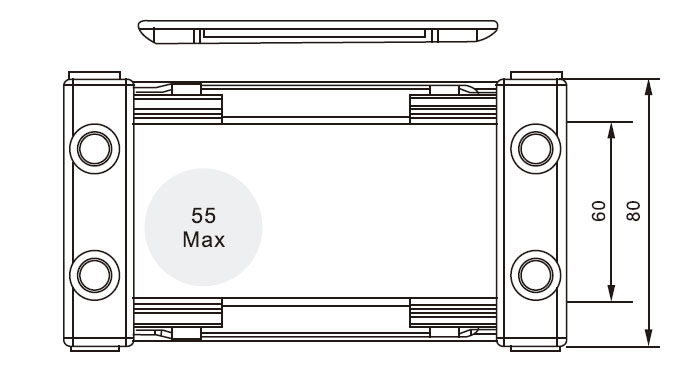

    Drag chain 40 x 100mm installation
    Pitch= 91mm, excluding the number of joints per meter= 11, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

    R 125 150 200 250 300 400 500
    H 330 380 480 580 680 880 1080
    D 256 281 331 381 431 531 631
    K 610 688 845 1002 1159 1473 1787
