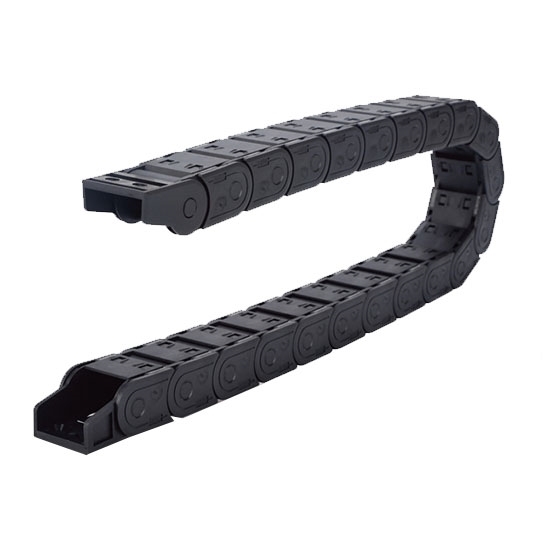

    Cable Drag Chain, 25 x 60mm

    5 out of 5 based on 3 reviews | Write a review
    Cable drag chain for CNC machine tools, inner size can select 25 x 25mm, 25 x 38mm, 25 x 50mm, 25 x 60mm, drag chain length 1 meter, other lengths can be customized.
    SKU: ATO-CDC-T25
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Cable drag chain for sale, inner size 25 x 25mm, 25 x 38mm, 25 x 50mm and 25 x 60mm are available. Cable drag chain is suitable for use in reciprocating situations, such as CNC machine tools, electronic equipment and lifting and transportation equipment.

    Note: cable drag chain length can be customized, please contact us.


    Model ATO-CDC-T2525 ATO-CDC-T2538 ATO-CDC-T2550 ATO-CDC-T2557 ATO-CDC-T2560
    Inner Height 25 25 25 25 25
    Inner Width 25 38 50 57 60
    Outer Height 36 36 36 36 36
    Outer Width 40 53 65 72 75
    Bending Radius ® 40mm, 55mm, 75mm, 100mm, 125mm, 150mm, 175mm
    Open Mode Bridge type Bridge closed
    Aperture (φ) 6.3 6.3 x 11.3 6.3 x 16.3
    Connector Hole Distance A=14, B=11.5 A=22, B=11.5 A=29, B=11.5 A=36, B=11.5 A=36, B=11.5
    Connector Ordering Model 25.25.Q.12PZ (Figure 1) 25.38.Q(F).12PZ (Figure 2) 25.50.Q(F).12PZ (Figure 2) 25.57.Q(F).12PZ (Figure 2) 25.60.Q(F).12PZ (Figure 2)
    Bridge Weight 0.69kg 0.76kg 0.81kg 0.84kg 0.85kg
    Closed Weight / 0.86kg 1.01kg 1.03kg 1.09kg

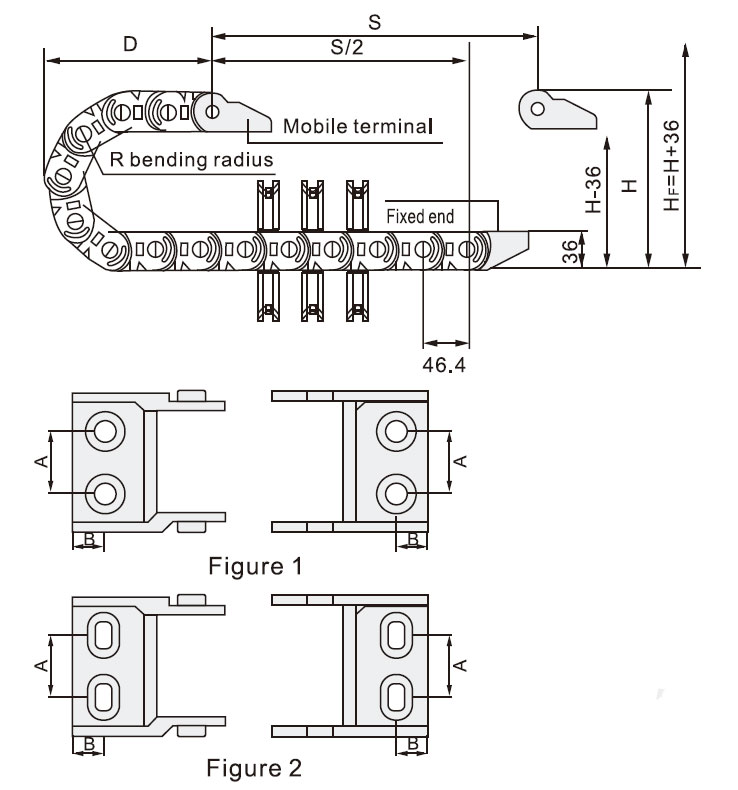

    Cable Drag Chain Installation Dimension (unit: mm)

    Pitch= 46.4mm, excluding the number of joints per meter= 22, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

    R 40 55 75 100 125
    H 116 146 186 236 286
    D 105 120 140 165 190
    K 229 276 339 417 496

    Drag chain 25 x 60mm dimension

    Tips: Features of cable drag chain

    Drag chain cables are mainly used in industrial electronic systems, automatic generation lines, automation equipment, storage equipment, robots, robot arms, fire fighting systems, cranes, CNC machine tools and metallurgical industries.

    The main characteristics of cable drag chain are bending resistance, torsion resistance, bending resistance, shallow water resistance, oil resistance, UV resistance, weather resistance, cold resistance, abrasion resistance, ability to withstand heavier mechanical external forces, and faster acceleration and stronger flexural resistance, suitable for installation under continuous reciprocating motion, especially in frequent bending occasions under industrial environment.
