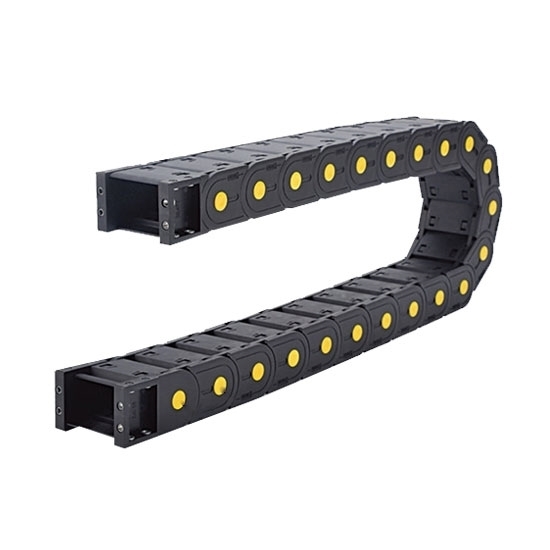

Cable Drag Chain, 40 x 60mm

5 out of 5 based on 1 reviews | Write a review

$84.97

Plastic cable drag chain inner height 40mm, inner width 60mm, 100mm, 150mm and 200mm are optional, drag chain length can be customized. Each section of the drag chain can be opened, and the installation is simple.

Model *
Length *
Bending Radius *

SKU: ATO-CDC-H40

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Cable drag chain inner size 40 x 60mm, 40 x 75mm, 40 x 100mm and 40 x 200mm to choose from, length 1 meter, 2 meters, 5 meters and 10 meters can be customized.

Note: cable drag chain length can be customized, please contact us.

Specification

Model	ATO-CDC-H4060	ATO-CDC-H4075	ATO-CDC-H40100	ATO-CDC-H40150	ATO-CDC-H40200
Inner Height	40	40	40	40	40
Inner Width	60	75	100	150	200
Outer Height	60	60	60	60	60
Outer Width	73	98	123	173	223
Bending Radius ®	75cm, 100cm, 125cm, 150cm, 200cm, 250cm
Open Mode	Bridge type	Bridge closed	Bridge closed	Bridge type	Bridge type
Pitch Distance	66
Bridge Weight	1.83kg	1.95kg	2.09kg	2.33kg	2.7kg
Closed Weight	/	2.13kg	2.32kg	/	/

Cable Drag Chain Installation Dimension (unit: mm)

Pitch= 66mm, excluding the number of joints per meter= 15, chain length= S/2 + K, S= stroke distance, K= π x R + safety amount.

R	75	100	125	150	200	250
H	210	260	310	360	460	560
D	171	196	221	246	296	345
K	396	475	553	632	789	946

Drag chain 40 x 60mm dimension

Dimension	ATO-CDC-H4060	ATO-CDC-H4075	ATO-CDC-H40100	ATO-CDC-H40150	ATO-CDC-H40200
A	24	24	24	24	24
B	26	26	26	26	26
C	75	90	115	165	215
D	88	103	128	178	228
E	16	16	16	16	16
Aperture (φ)	8	8	8	8	8

Drag chain 40 x 60mm installation
Tips: Cable drag chain application

Cable drag chain is suitable for use in reciprocating motion occasions, which can traction and protect the built-in cables, oil pipes, air pipes, water pipes, etc. Each section of the drag chain can be opened for easy installation and maintenance. During exercise, it has low noise, wear resistance, and high-speed movement. Drag chains have been widely used in CNC machine tools, electronic equipment, stone machinery, glass machinery, door and window machinery, injection molding machines, manipulators, lifting and transportation equipment, automated warehouses, etc.
