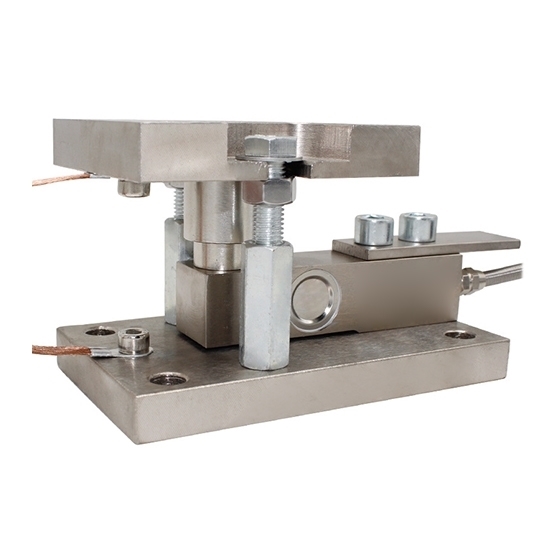

Cantilever Load Cell Weighing Module, 500kg/1 ton to 10 ton

Write a review

$374.77

Cantilever load cell weighing module delivers high precision (2.0±0.002 mV/V) and stable performance with ±0.03% F.S accuracy, available in 500 kg, 1 ton to 10 ton capacities. Built with durable 40Cr alloy steel (optional stainless steel), the load cell module features anti-overturning structure, corrosion resistance, and easy installation. Ideal for tank, hopper, crane scale, and rail weighing applications.

Material *
Capacity *

SKU: ATO-LCM-C

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

Cantilever load cell weighing module features excellent overload capacity up to 150% F.S and strong insulation resistance (≥5000 MΩ), ensuring safe and reliable operation in demanding environments. Suitable for harsh working conditions requiring stable force measurement performance.

Specification

Model	ATO-DYUW
Sensitivity	2.0±0.002 mV/V
Non-linearity	±0.03% F·S
Hysteresis	±0.03% F·S
Repeatability	±0.03% F·S
Creep	±0.03% F·S/30 min
Zero Output	±1% F·S
Zero Temperature Coefficient	±0.03% F·S/10℃
Sensitivity Temperature Coefficient	±0.03% F·S/10℃
Operating Temperature Range	-20–80℃
Input Resistance	350Ω
Output Resistance	350Ω±5Ω
Safe Overload	150% F·S
Insulation Resistance	≥ 5000 MΩ(50VDC)
Recommended Excitation Voltage	5V–15V

Feature

Cantilever load cell weighing module delivers high precision performance with 2.0±0.002 mV/V sensitivity and ±0.03% F.S accuracy for reliable weighing results.
Strong structural safety with 150% F.S safe overload capacity and anti-overturning design for stable operation.
Cantilever load cell module features durable construction using 40Cr alloy steel (optional stainless steel), featuring nickel-plated surface for enhanced corrosion resistance and fatigue strength.
Excellent long-term stability with low creep (±0.03% F.S/30 min) and minimal temperature drift for consistent measurement performance.
Cantilever beam load cell weighing module maintains a wide operating temperature range of -20 to 80°C, making it suitable for harsh industrial environments.
High electrical reliability with 350Ω input/output resistance and insulation resistance ≥5000 MΩ (50VDC).
Cantilever beam load cell module recommends an excitation voltage range of 5V–15V for flexible system integration.
Easy installation and maintenance with a compact and robust mechanical structure.
ATO load cell weighing module is widely used in tank and hopper batching systems, crane scales, rail weighing, and industrial force measurement applications.

Size (unit: mm)

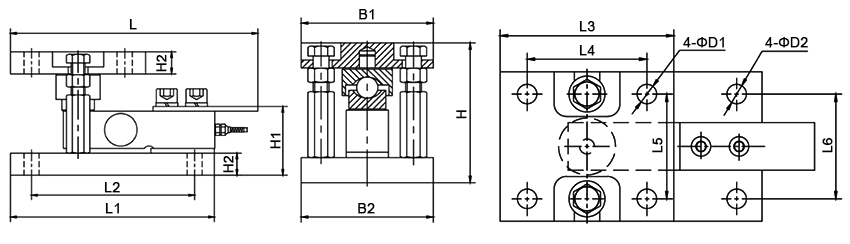

Cantilever load cell module size

Rated Capacity	H	H1	H2	B1	B2	D1	D2	L	L1	L2	L3	L4	L5	L6
0.25–2.5 ton	106	58	18	100	100	13	13	210	175	140	116	80	70	70
3–5 ton	135	73	23	150	150	17	17	270	235	200	150	100	90	90
7.5–10 ton	186.3	93.3	38 (top)	180	180	26	26	345.2	310	250	210.4	150.4	110	110
7.5–10 ton	186.3	93.3	28.5 (bottom)	180	180	26	26	345.2	310	250	210.4	150.4	110	110

Wiring

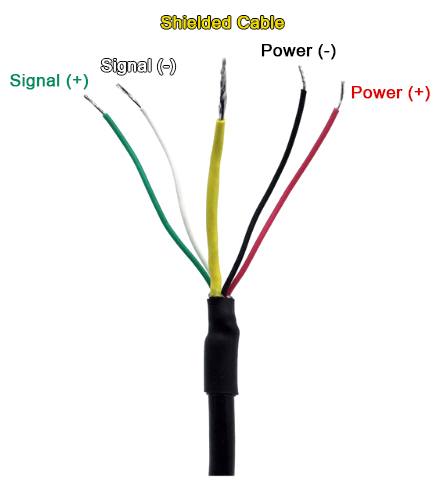

Cantilever load cell weighing module wiring

Tips: Is the installation process of the cantilever load cell weighing module complicated?

No, the installation process of the cantilever load cell module is not complicated. It features a compact and optimized structural design that allows quick installation without complex alignment procedures. The self-stabilizing mounting structure helps ensure proper force application during setup, reducing installation errors and improving measurement accuracy from the beginning. In addition, its modular design simplifies routine maintenance and component replacement, which further reduces installation time, labor effort, and overall system downtime.
