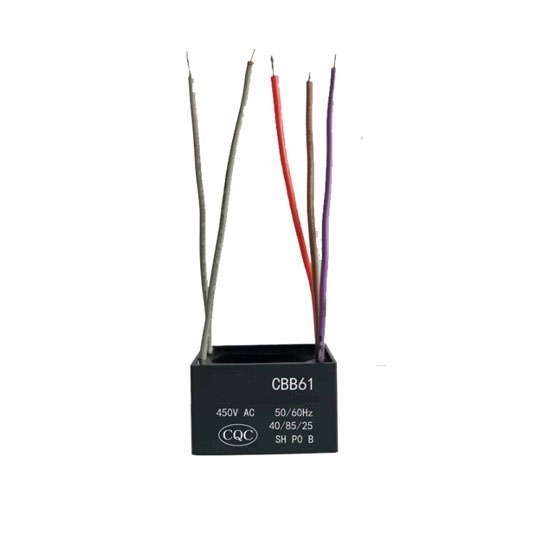

    450V Ceiling Fan Capacitor, 2μF+2μF+3μF

    5 out of 5 based on 1 reviews | Write a review
    5 Wire ceiling fan capacitor capacity 2μF+2μF+3μF, rated frequency 50/60Hz, voltage 450V and 500V optional, capacitor running low loss, can run industrial fans, range hood fans, ventilation fans, pumps, motors, generators, etc.
    SKU: ATO-FC-CBB61-223
    This product has a minimum quantity of 100
    30-day Returns
    Free Shipping
    Delivery date: 10-12 days

    Ceiling capacitor for fan speed control, capacity 2mfd+2mfd+3mfd, rated voltage 450V AC or 500V AC, can be used for starting and running of single-phase motors, also for regulating motor speed.


    • Model: ATO-FC-CBB61-223
    • Capacity: 2μF+2μF+3μF
    • Rated Voltage: 450V/500V
    • Tolerance: ±5%
    • Withstand Voltage: 2. 0 Un (2s)
    • Loss: (DF)≤0.0010 100Hz
    • Insulation Resistance: CxRs≥3000S (23℃, 1000VDC, 1min)
    • Rated Frequency: 50/60Hz
    • Climate Category: 40/85/23
    • Scope of Application: Start, run
    • Appearance: Rectangular
    • Lead Out Method: Cord, pin, insert
    • Dielectric Material: Organic thin film
    • Dimension: 48(W) x 25(L) x 35(H)mm
    • Certificate: CE, CQC

    5 Wire Ceiling Fan Capacitor Connection Diagram

    Ceiling fan capacitor circuit diagram

    Tips: How to determine whether the capacitor is damaged?

    • For example, if the fan does not turn because of overheating, there is a motor inside, it has an overheating circuit breaker, if the heat exceeds a certain range within a short period of time, or its motor bearing is stuck, it will also lead to damage to the capacitor.
    • We can also use the capacitance meter to measure, connect the positive and negative pole of the capacitor meter with the capacitor, if the value is normal, it means there is no problem. But if it is obviously lower than the standard capacity, it means that the capacitor of the electric fan has been damaged.
    • You can also use a multimeter to measure the relevant value, after connecting, the meter The needle swings around and returns to the original position, it means that the good. But if will not turn back, it means that the capacitor is damaged.
