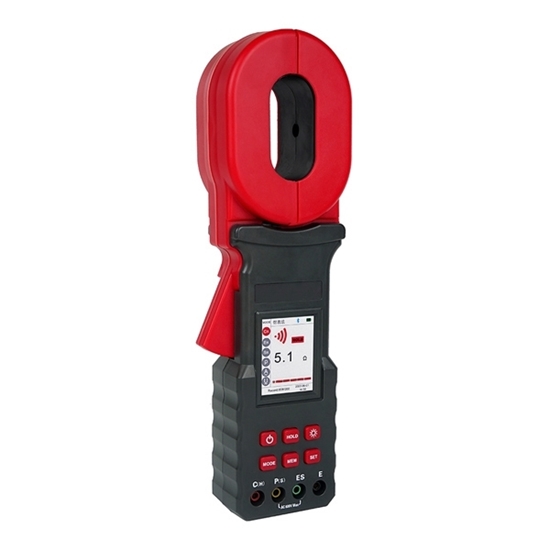

Clamp Earth Resistance Tester, 0 to 20kΩ

5 out of 5 based on 1 reviews | Write a review
$944.09
Digital clamp earth resistance tester for sale online, especially used for measuring ground resistance, soil resistivity, ground current and ground voltage on site. Soil resistivity tester equipped with a 0 to 20kΩ measure range, 5-inch color LCD screen, USB interface charging port, storage function, clock function, and automatic stores 500 groups. Ground test with clamp meter method, two-wire method, three-wire method, and four-wire method for selection.
SKU: ATO-ERT-20k
30-day Returns
Free Shipping
Delivery date: 6-12 days

Buy a high precision earth resistance tester online. It comes with a 0 to 20k ohm measurement range, 5-inch color LCD screen, USB interface charging port, storage function and clock function, suitable for measuring ground resistance, soil resistivity, ground current and ground voltage on site.

Features

  • ATO earth resistance tester is available with a 32mm clamp and 0Ω~20kΩ measure range.
  • Clamp on earth resistance tester is designed for on-site measurement of ground resistance, soil resistivity, ground current, and ground voltage. It has a 2.5-inch color LCD screen. and USB interface charging port,
  • storage function, and clock function, and automatically stores 500 groups.
  • Digital ground resistance testers can measure grounding resistance by various measurement methods such as the clamp meter method, two-wire method, three-wire method, four-wire method, and selection method.

Specifications

Model ATO-ERT-2300
Resistance Range 0.00Ω~20kΩ
Soil Resistivity Range 0Ωm~9999kΩm
Ground Current Range 0.000mA~20A
Ground Voltage Range 0.0V~600.0V
Earth Resistance Measurement Methods Clamp meter method, two-wire method, three-wire method, four-wire method, selection method
Test Frequency 128Hz/111Hz/105Hz/94Hz (AFC automatic frequency selection)
Display Mode 2.5-inch color LCD screen
Short Circuit Test Current AC 10mA max
Open Circuit Test Voltage AC 14V max
Electrode Spacing Range 1m~100m
Weight 5.1 kg
Clamp Size 65mm×32mm
Tester Size 307mm×98mm×56mm
Test Line 4 Pieces (red 20m, black 20m, yellow 10m, green 10m)
Simple Test Line 2 Pieces (red 1.6m, black 1.6m)
Auxiliary Ground Rod 4*Φ9mm×230mm (935g)
Measurement Times more than 5000 times (short circuit test, test once, stop for 30 seconds and test again)
Line Voltage measured below AC 600V
Data Memory 500 groups
Audible And Visible Alarm "du—du—du" for alarming, press AL to turn on/off
Automatic Shut-Down Automatic shutdown after 5 minutes of power on
Shift Automatically
External Magnet/Electric Field < 40A/m, < 1V/m
Resistance Test Frequency >1KHz, 128Hz
Interface USB interface
Accessories Resistance Tester: 1PCS; Test Loop:1PCS; Test Ring: 1PCS; USB Charging Cable:1PCS; Charger: 1PCS; Ground Pin: 4PCS; Test Leads: 4PCS; Simple Test Leads: 2PCS; Tool Box: 1PCS


Range and Accuracy

Measuring Function Measuring Range Accuracy Resolution
Measuring Grounding Resistance with Clamp Meter 0.010Ω~0.099Ω ±(1%rdg+0.05Ω) 0.001Ω
0.10Ω~0.99Ω ±(1%rdg+0.05Ω) 0.01Ω
1.0Ω~49.9Ω ±(1%rdg+0.5Ω) 0.1Ω
50.0Ω~99.5Ω ±(2%rdg+0.5Ω) 0.5Ω
100Ω~199Ω ±(5%rdg+1Ω)
Two-Three-Four-Wire Method for Measuring Grounding Resistance 0.10Ω~20.00Ω ±2%rdg±5dgt 0.01Ω
20.0Ω~200.0Ω ±2%rdg±5dgt 0.1Ω
200Ω~2000Ω ±2%rdg±5dgt
2.00kΩ~20.00kΩ ±4%rdg±5dgt 10Ω
Selective Method for measuring grounding resistance 0.10Ω~20.00Ω ±2%rdg±5dgt 0.01Ω
20.0Ω~200.0Ω ±2%rdg±5dgt 0.1Ω
200Ω~2000Ω ±2%rdg±5dgt
Soil Resistivity 0.00Ωm~99.99Ωm Depends on the measurement accuracy of the R
(ρ=2πaR
a:1m~100m;
π=3.14)
0.01Ωm
100.0Ωm~999.9Ωm 0.1Ωm
1000Ωm~9999Ωm 1Ωm
10.00kΩm~99.99k 10Ωm
100.0kΩm~999.9k 100Ωm
1000kΩm~9999kΩm π=3.14) 1kΩm
Ground Voltage 50Hz/60Hz AC 0.0~600.0V ±2%rdg±5dgt 0.1V
Ground Current 50Hz/60Hz 0.000mA~5.000mA ±(2.5%rdg+1mA) 0.001mA
5.0mA~100.0mA ±(2.5%rdg+5mA) 0.1mA
100mA~500mA ±(2.5%rdg+10mA) 1mA
0.50A~20.00A ±(2.5%rdg+0.5A) 0.01A

Note

  • The additional error when rC max or rP max is ≤±5%rdg±5dgt.
  • rC max: 4kΩ+100R<50kΩ, rP max: 4kΩ+100R<50kΩ
  • The additional error at 2.5V interference voltage is ≤±5%rdg±5dgt.

Details

Clamp earth resistance tester details

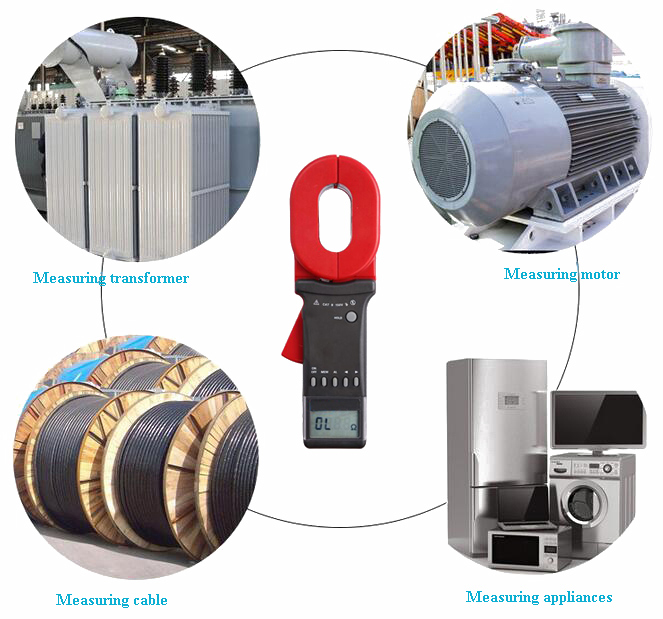

Applications

ATO provides earth resistance testers with a measurement range of 0.00Ω-300kΩ, which are widely used in ground resistance measurement and loop resistance measurement in fields such as electric power, telecommunications, meteorology, oil fields, construction, and industrial electrical equipment. When measuring the grounding system with a loop, the ground resistance tester does not need auxiliary electrodes and does not need to disconnect the grounding wire, which is safer and faster.

Clamp earth resistance tester applicationsTips: Why use a clamp earth resistance tester?

The clamp earth resistance meter can measure ground faults that cannot be measured by traditional methods and can be applied to occasions that cannot be measured by traditional methods. It is a major breakthrough in traditional ground resistance measurement technology and is widely used in electric power, telecommunications, meteorology, oil fields, construction and ground resistance measurement of industrial electrical equipment.
