    Cleanroom Particle Counter, 0.5μm/3μm/10μm

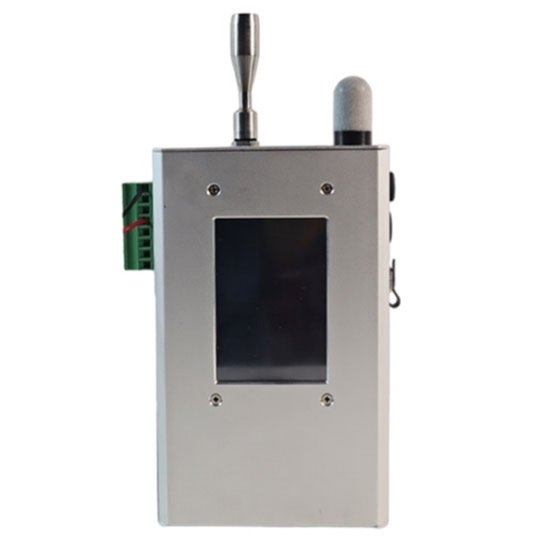

    Cleanroom particle counters can accurately measure particle count concentrations of six particle sizes: 0.3μm, 0.5μm, 1μm, 3μm, 5μm, and 10μm. The ATO online laser particle counter transmits data to various intelligent terminals in real-time through standard RS485 interface and Modbus-RTU protocol to achieve unmanned intelligent monitoring.
    SKU: ATO-PC-039
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    Cleanroom particle counter particle size range 0.3~10μm, the sensor adopts industrial grade laser and light-sensitive components, combined with light scattering particle monitoring technology, accurate measurement of various environmental particle concentration with clieanliness requirements. Portable particle counter is highly reliable, with aerodynamic correction, optcal and air path self-test function, to ensure system reliability and stability.


    Model ATO-JC039
    Measurement Output 0.3μm, 0.5μm, 1μm, 3μm, 5μm, 10μm
    Measuring Range 4,000,000 pcs/ft3
    Flow Rate 2.83 L/min
    Input Voltage DC12V (9~25VDC), recommended power supply not less than 12V 2A
    Rated Power 3.5W
    Sleeping Power 0.24 W
    Operating Temperature Range -20-60°C
    Humidity Range 0-99%RH
    Working Atmospheric Pressure 86KPa~110KPa
    Response Time 1S
    Communication Interface RS- 485+UART TTL, customizable
    Communication Protocol Modbus-RTU, customizable
    Counting Efficiency 0.3μm/50%
    Relative Error ±10%
    Dimension 173*104*63.2mm
    Hose Size Inner diameter: φ5mm, outer diameter: φ8mm



    • Cleanroom particle counter adopts single particle laser scattering principle, industrial-grade laser light source. High counting efficiency and accurate data. Particle size range 0.3~10mm.
    • Aerodynamic correction, self-checking of optical and air paths, insensitive to vibration, ensuring system reliability and stability.
    • Stable flow rate, particle counter adopts active sampling method, constant flow inlet fan, optional PID flow control function, can support stable, long time, high negative pressure, sampling.
    • The laser particle counter has a simple installation structure, high versatility, ESD, over-voltage, over-current, and reverse connection protection functions, ensuring the stability and reliability of the circuit.
    • RS485 interface, remote control, wireless transmission, and real-time data upload.


    Particle counter applications

    Tips: How to use a laser particle counter?

    The method of using the laser particle counter is very simple. First determine the number of test points according to the area of the clean room and evenly distribute the test points in the clean room, then set the parameters of the particle counter such as measurement time, measurement unit, flow rate, etc. Point on a plane with a height of 1 to 1.2 meters from the ground, and finally start the test sampling and record the data.
