    Current Transformer Tester, CT PT Analyzer, 110V/220V

    5 out of 5 based on 4 reviews | Write a review

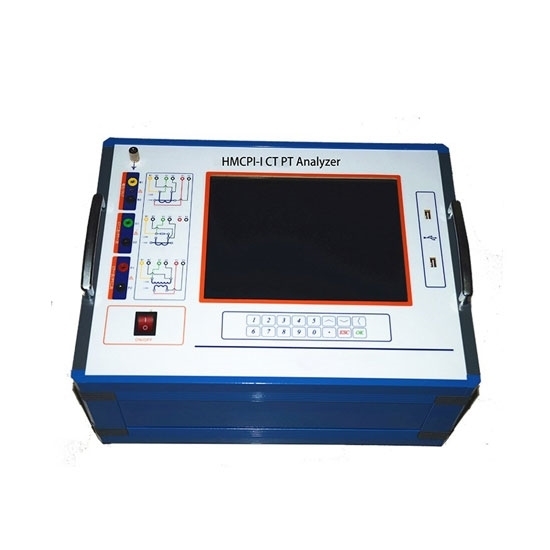

    CT PT analyzer for sale, low price, input voltage 110V or 220V, frequency 50Hz/60Hz, current transformer tester is used for the excitation characteristics, ratio, polarity, secondary winding resistance, ratio difference and angle difference of CT, PT electromagnetic units.
    SKU: ATO-CT-HM404
    30-day Returns
    Free Shipping
    Delivery date: 10-20 days

    Current transformer tester set for knee point test, CT PT analyzer input voltage 110V or 220V is available, 50Hz/60Hz, functional test stability and high efficiency.


    Model ATO-CT-HM404
    Input Voltage AC220V, 50Hz/AC110V, 60Hz
    Usage Class P/TP CT & VT
    Power Output 500VA
    Maximum Knee Voltage Measurement 45 kV
    Voltage Output 0.1~180V (AC)
    Current Output 0.001~5A(RMS)
    Current Measurement Range 0~10A (Automatically change range in 0.1/0.4/2/10A)
    Error <±0.1%+0.01%FS
    Voltage Measurement Range 0~200V (Automatically change range in 1V/10V/70V/200V)
    Error <±0.1%+0.01%FS
    Turns Ratio Measurement Range 1~5000 5000~35000
    Error <0.05% <0.1%
    Phase Measurement Range ±2min
    Resolution 0.01min
    Winding Resistance Measurement Range 0~8kΩ (Automatically change range in 2ohm/20ohm/80ohm/800ohm/8kohm)
    Error <0.2%RDG+0.02%FS
    Maximum resolution 0.1mΩ
    Temperature Measurement -50~100 Celsius degree
    CT Secondary Burden Range 0~160ohm (Automatically change range in 2ohm/20ohm/80ohm/160ohm)
    Error <0.2%RDG+0.02%FS
    Maximum resolution 0.001ohm
    PT Secondary Burden Range 0~80kohm (Automatically change range in 800ohm/8kohm/80kohm)
    Error <0.2%RDG+0.02%FS
    Maximum Resolution 0.1ohm
    PT Ratio Measurement Range 1~10000 10000~35000
    Error <0.1% <0.2%
    PT Ratio Error Measurement Typical Error <0.05%
    Maximum Error <0.1%
    PT Phase Angle Measurement maximum Error <3min
    Memory Capacity >1000 Groups Test Results
    Working Condition Temperature: -10℃~50℃ Moist: ≤90%
    Dimension 485*356*183mm
    Weight 15kg

    Features and Advantages

    1. Simple test, full-featured, meet CT and PT test requirements.
    2. High degree of automation, the experimental report of the current transformer tester, can complete the analysis of the test source data file and the production word report through the PC machine software, automatically give the knee voltage, current, 10%, 5% error curve, accuracy limit coefficient (ALF), instrument security factor (FS), quadratic time constant (Ts), remanence coefficient (Kr), saturation and unsaturated inductance, CT, CP parameters.
    3. The current transformer tester can store 2000 sets of test data, which can be stored in the PC with a U disk.
    4. Stable performance and high test efficiency. Lightweight and easy to carry.
    Test for current transformerWhat is the Current Transformer Analyzer?

    The current transformer analyzer is a multifunctional field test instrument specially designed for testing transformers: volt-ampere characteristics, ratio, polarity, error curve, calculation of inflection point and secondary side circuit inspection. In the experiment, only the test voltage and current value need to be set, the device can automatically boost/upflow, and the volt-ampere characteristic curve or ratio, polarity and other experimental results of the transformer can be quickly displayed to support data saving and field printing. It not only saves the tedious labor of manual voltage regulation, manual recording, curve drawing, etc., but also uploads test data to the computer for editing, saving or printing through the USB interface. The operation is simple and convenient, and the work efficiency is improved. It is a high-tech product with high cost performance.
