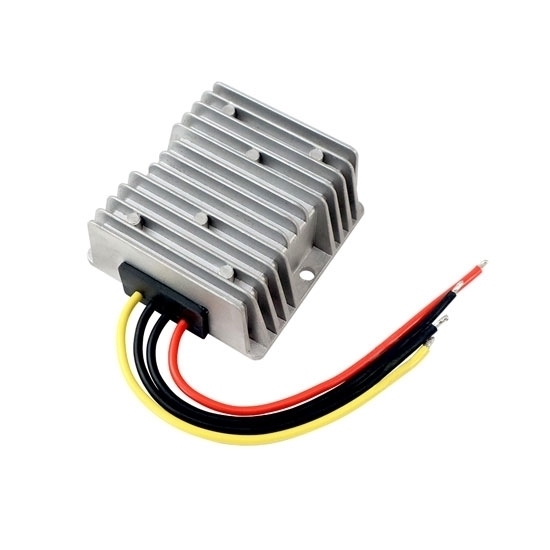

DC-DC Boost Buck Converter, 9V-36V to 12V, 5A/12A

Write a review

$73.99

DC-DC boost buck converter accepts 9-36V DC input and converts it to a stable 12V DC output. Available in 5A and 12A models rated at 60W and 144W, it features up to 94% efficiency, IP68 waterproof protection, low ripple and noise, and voltage regulation below 1% for dependable power conversion.

Output Current *

5A
12A [+$12.58]

SKU: ATO-DCDC-93612

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Related Video
E-Catalog

This DC-DC step up buck converter features a sealed enclosure, natural heat dissipation, and a wide operating temperature range of -40°C to +80°C. Voltage regulation below 1% and load regulation below 2% help maintain consistent output, making it suitable for automotive electronics, outdoor equipment, and industrial DC power systems.

Specification

Model		ATO-9-36S12V5A	ATO-9-36S12V12A
Input	Rated voltage	12/24V DC
	Voltage range	9-36V DC
	Efficiency	94%	90%
	Wiring Type	16 AWG Wire (Red Positive, Black Negative)	14 AWG Wire (Red Positive, Black Negative)
Output	Voltage	12V DC
	Max. rated current	5A	12A
	Max. rated power	60W	144W
	Voltage regulation	<1%
	Load regulation	<2%
	No load loss	50mA	100mA
	Ripple & noise	100mVpp	240mVpp
	Wiring Type	16 AWG Wire (Yellow Positive, Black Negative)	14 AWG Wire (Yellow Positive, Black Negative)
Environment	Working temperature	-40℃~+80℃
Function	Waterproof	IP68
	Cooling Method	Natural heat dissipation through the enclosure
Mechanical	Weight	≤ 300g
	Size	747432mm

Feature

Wide Input Voltage Range: Small DC-DC boost buck converter accepts 9–36V DC input and converts it to a regulated 12V DC output.
Multiple Output Options: Available in 5A and 12A models, rated at 60W and 144W respectively.
High Conversion Efficiency: DC-DC boost buck converter achieves up to 94% efficiency to reduce power losses during conversion.
IP68 Waterproof Protection: Sealed construction protects against water and dust ingress.
Low Ripple and Noise: Industrial DC-DC step up buck converter minimizes output fluctuations for stable DC power conversion.
Wide Operating Temperature: Operates in ambient temperatures from -40°C to +80°C.

Detail

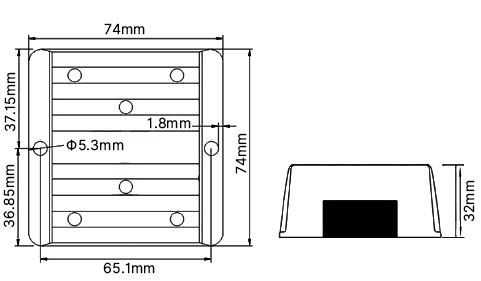

Size (unit: mm)

DC-DC converter 9V 36V to 12V size

Tips: What should I check before connecting this DC-DC boost buck converter to my equipment?

Before installation, verify that the input power supply provides 9–36V DC and that your equipment requires a stable 12V DC output. Select the 5A model for loads up to 60W or the 12A model for loads up to 144W, ensuring that both the required current and total power remain within the converter's rated limits. Also, check the wiring polarity and allow sufficient space for natural heat dissipation to support safe, reliable operation.
