Diaphragm Pressure Sensor for Water/Viscous Liquid

5 out of 5 based on 3 reviews | Write a review

$192.69

Diaphragm pressure sensor can prevent blocking of viscous liquid. The internal ASICs convert the mV signal into a standard current (4-20mA/0-20mA), voltage (0-5V/1-5V/0-10V) or RS485 signal. Pressure sensor with stainless steel sealing structure has small size, light weight, high anti-vibration and anti-shock performance, measuring range 0~35MPa/ 0~350bar/ 0~5076psi, medium temperature -40~+60℃ (-40~+140℉), for water/viscous liquid pressure measurement.

Measuring Range *
Power Supply *
Output Signal *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Accuracy *
Electrical Connection *
Thread of Pressure Connection *
Pressure Type *

SKU: ATO-PRES-P350

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Measuring Range Conversion Table

Pressure sensor for water/viscous liquid pressure measurement has optional output signal, such as 4-20mA/0-20mA/0-5V/1-5V/0-10V/RS485.

Application: Pressure sensor is widely used in food, medicine, hygiene and brewing industries.

Specification:

Model	ATO-PRES-P350
Weight	0.4kg
Measuring range *	0~35MPa (0~350bar/0~5076psi)
Pressure type	Gauge pressure (standard) Contact us for absolute pressure, sealed pressure type (note that the measuring range for these two types must ≤1MPa)
Measure medium	Pure water, wine, fruit juice, viscous liquid
Power supply *	DC 12V, DC 24V, DC 12-36V
Output signal *	2 wire: 4-20mA, 0-20mA 3 wire: 0-5V, 1-5V, 0-10V RS485
Accuracy *	±0.5%FS, ±0.3%FS, ±1%FS (when output signal is 0-5V or 0-10V)
Zero temperature drift	±0.03%FS/℃
Sensitivity temperature drift	±0.03%FS/℃
Long term stability	≤0.2%FS/year
Overload pressure	200%FS
Frequency response (-3dB)	5kHz~650kHz
Electrical connection *	DIN connector type, M12 circular connector type, direct lead wire type
Thread of pressure connection *	G1/2, M20*1.5
Response time	＜10ms
Operating temperature	-40~+80℃ (-40~+176℉)
Medium temperature	-40~+60℃ (-40~+140℉)
Material	Housing: 304 stainless steel Fill fluid: silicon oil Pressure port: 304 stainless steel, or 316L stainless steel (customizable) Separating diaphragm: 304 stainless steel, or 316L stainless steel (customizable) Sealing: FKM (medium temperature ≤ +200℃/+392℉), EPDM, NBR
Cable length	2m
Protection class	IP65

Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.

Pressure sensor dimension drawing (unit: mm):
Diaphragm pressure sensor dimensional drawing
Pressure sensor wiring diagram:

Tips: Why the pressure sensor output signal is smaller than 4mA?
The most common reasons for maximum display is an improper selection of the pressure sensor's range or wrong setting of range, or zero shift is not made in liquid level measurement, thus making the output current of the pressure sensor to exceed 20mA. When the circuit of pressure sensor is suspected to be faulty, the circuit board can be replaced to judge the faults. Damage of the pressure sensor's diaphragm will also lead to over-range failure. For example, the output current of the diaphragm pressure sensor used for measuring vapor is greater than 20mA, and it's found after disassembling that some diaphragms have a lot of bumps, some diaphragms deform after freezing or overheated. The failure causes may be abnormal steam tracing which leads to condensate freezing, or long-term contact between the steam and diaphragm box caused by leakage. It also indirectly illustrates the importance of on-site inspection.

Measuring range conversion table:

Unit	kPa	MPa	bar	psi
Measuring range	0~5	0~0.005	0~0.05	0~0.7
	0~10	0~0.01	0~0.1	0~1.5
	0~20	0~0.02	0~0.2	0~3
	0~50	0~0.05	0~0.5	0~7
	0~100	0~0.1	0~1	0~14
	-100~0	-0.1~0	-1~0	-14~0
	-100~100	-0.1~0.1	-1~1	-14~14
	0~600	0~0.6	0~6	0~87
	0~1000	0~1	0~10	0~145
	0~1600	0~1.6	0~16	0~232
	0~2500	0~2.5	0~25	0~362
	0~6000	0~6	0~60	0~870
	0~10000	0~10	0~100	0~1450
	0~20000	0~20	0~200	0~2900
	0~30000	0~30	0~300	0~4351
	0~40000	0~40	0~400	0~5801
	0~50000	0~50	0~500	0~7252
	0~60000	0~60	0~600	0~8702
	0~100000	0~100	0~1000	0~14503

Existing reviews of Diaphragm Pressure Sensor for Water/Viscous Liquid

For my measurement experiment

I've had this pressure sensor for half a month. I use this sensor for my pressure measurement experiments. The sensor works well and the data is accurate. I would recommend it to my friends.

From: Paulo | Date: 13/06/2022

Was this review helpful? Yes No (0/0)

Pressure sensor works better than expected

I bought two pressure sensors of these, and both work as they should. Pretty accurate for what I am using for. The price is good and I will definitely purchase this product again!

From: Alston | Date: 18/03/2022

Was this review helpful? Yes No (0/0)

Pressure sensors for pneumatic conveying experiments

I bought two ordinary type pressure sensors and two flat diaphragm pressure sensors. I am ready to do pneumatic conveying experiments. There is no problem with the initial inspection. I will carefully test the parameters in later experiments.

From: Jayden | Date: 15/11/2018

Was this review helpful? Yes No (0/0)

Load more reviews...

Write your review for Diaphragm Pressure Sensor for Water/Viscous Liquid

Only registered users can write reviews

Review title:

Review text:

Rating:

Bad
Excellent

Customers who bought this item also bought

10 hp VFD, Single Phase to Three Phase VFD

$992.18

SKU: GK3000-2S0075G

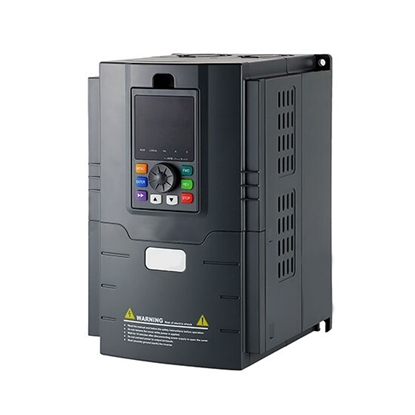

Customize 10 hp VFD with single phase input to three phase output. Using it as a phase converter for single phase power supply to vary three phase motor speed.
