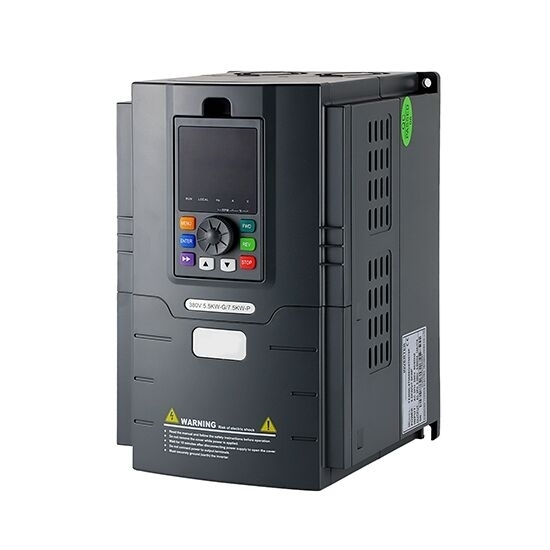

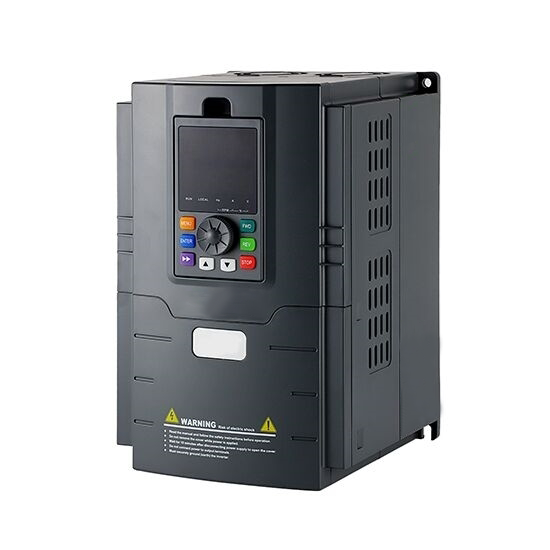

    10 hp VFD, Single Phase to Three Phase VFD

    5 out of 5 based on 9 reviews | Write a review
    Customize 10 hp VFD with single phase input to three phase output. Using it as a phase converter for single phase power supply to vary three phase motor speed.
    SKU: GK3000-2S0075G
    Availability: In stock
    30-day Returns
    Free Shipping
    Delivery date: 2-3 days

    10 hp (7.5 kW) VFD, single phase 220V, 230V, 240V to three phase output variable frequency drive. 32 amps, RS485 enabled.


    Basics Model GK3000-2S0075G
    Capacity 10 hp (7.5 kW)
    Shipping weight 8 kg
    Dimension 330*200*200 mm
    I/O Feature Rated current 32 A
    Input voltage 1 phase 220~240V AC
    Input frequency 50Hz/ 60Hz
    Output voltage 3 phase AC 0~input voltage
    Output frequency 0Hz~1000Hz
    Over load capacity 150% of rated current for 1 minute, 180% of rated current for 3 seconds
    Control Feature Control mode V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC)
    Communication RS485
    Speed regulation 1:100
    Start torque 150% of rating torque at 1 Hz
    Speed control accuracy ≤±0.5% of rating synchronous speed
    Frequency precision Digital setting: max frequency x± 0.01%;
    Analog setting: max frequency x± 0.2%
    Frequency resolution Analog setting: 0.1% of max frequency;
    Digital setting: 0.01Hz
    Torque boost Automatic torque boost, manual torque boost 0.1%~30.0%
    Interior PID controller Be convenient to make closed-loop system
    Automatic energy save running Optimize V/F curve automatically based on the load to realize power save running
    Automatic voltage regulation (AVR) Can keep constant output voltage when power source voltage varies.
    Automatic current limiting Limit running current automatically to avoid frequent over-current which will cause trip
    Environment Enclosure rating IP 20
    Temperature –10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
    Humidity 5%-95%, without condensation
    Altitude ≤1000m; VFD will be derated if above 1000m
    Impingement and oscillation Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
    Store environment –20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

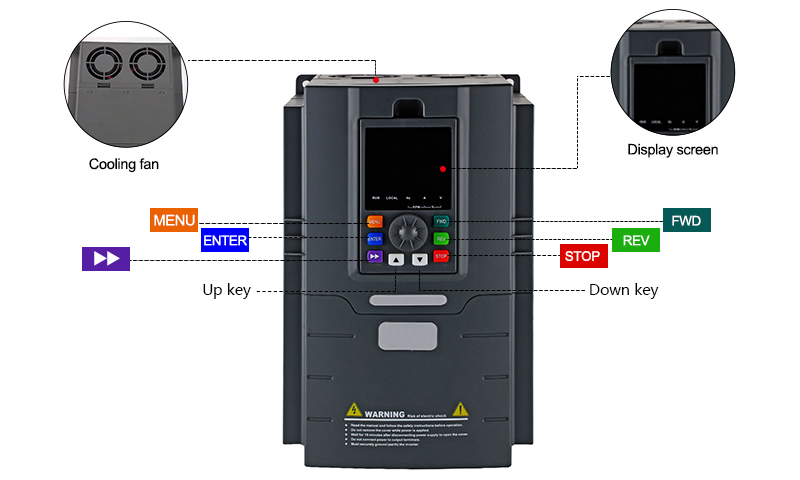

    10 hp Single Phase to Three Phase VFD Details

    Tips: Where VFD should be placed?

    Most of the users installed variable frequency drive (VFD) near the MCC because it's easy to maintain the system but there are some issue's which may happen due to placing the VFD near the MCC like there is a kind voltage reflection issue if the length of the cable is more than the critical length which may damage the motor.

    In this case we need to follow instructions given in the user's manual supplied with the variable frequency drive. Generally following are recommended by manufacture:

    1. Maximum surrounding air (Preferred);
    2. Ambient temperature typically -10 C to 40 C or 50 C (Check the manual for actual);
    3. Mounting clearances (This is related with derating of VFD).
    Existing reviews of 10 hp VFD, Single Phase to Three Phase VFD
    Error appeared
    P8.02 only has a range from 0 - 10 not sure how this setting changes the voltage.

    Our main issue is we are getting a E-12 error. Our 3 ph power is going to (2) A/C 10 Ton condenser. These condensers will only accept 208v - 230v power  /- 10%. The output of 260v put us over. We added a step down transformer from 240v - 208v and now the power output is 214v, but the E-12 error is still occurring.

    Thoughts? I would be very beneficial to speak to you direct.
    From: Clare | Date: 24/10/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    1. If the VFD serial number you receive does not have the word 9000 in front of it, it means it is an old version. The VFD output voltage modification parameter of the old version is P0.08. You can set P0.08=220v, and test again.

    2. Note: Our VFD can only be connected to the motor load and can Not be used as a power supply for the condensing machine, otherwise the VFD will operate abnormally. So if you connect the VFD to the condenser, it will Not work properly.

    3. Generally we will assist troubleshooting by email, which makes the feedback information more clear, It is also more convenient to transfer files and record files, thank you for your understanding.
    Couple of question about VFD
    We have your GK3000-2S0075G installed and have a couple of questions.

    Is this drive ok for 208v? It seems like they are ok for 208v/230v/240v from what I read.
    Can the Output voltage be adjusted? Is so, how?
    From: Colin | Date: 23/10/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Yes, our GK3000-2S0075G also worke for AC208V, but the output voltage is related to the input voltage, the output voltage will Not be greater than the input voltage.
    For example, the VFD input voltage is 208V, then the maximum VFD output voltage is also 208V, and it can Not boost.
    How to set up my VFD?
    I need help moving my VFD from blinking local to drive. it was working with drive earlier but stopped and would start blinking local. i am using a GK3000 VFD for a 10 horsepower motor and also need help setting it up. The motor is 480V.
    From: Beeyh | Date: 02/08/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    For the parameter setting and use of VFD, please refer to the quick setting document description in the attachment.
    Also our demo video:
    A new need for VFD
    I am operating a GK3000 2S-0075G VFD.
    I am controlling the frequency using analog voltage input (P0.01 = 5) and controlling the start/stop using the front panel buttons (STOP and FWD).
    We have been operating this way for nearly a year now without issue.
    However, a new need has arisen where I would also like to run the VFD the same way (analog control), but in reverse by pressing the REV button.
    By factory default, I found P3.46 set to 030, which didn’t make sense, in the manual it shows as either 0 or 1.
    When P3.46 = 030, the REV button on the front panel caused the system to jog in the forward direction.
    I would like the REV button to cause the motor to spin in reverse.
    Thank you for your input on this.
    From: perla | Date: 24/07/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    What is your order number?
    Please let us know so we can better help you.
    Hope you can understand.
    If you need the REV button to cause the motor to spin in reverse, please set the parameter P3.46=031 (change the one digit to 1), and P0.04=00 to allow reverse.
    Problems with 10hp vfd
    The part number is GK3000-2S0037,, and   GK3000-2S0075G,

    We ordered the ones that ATO had recommended and are asking me to help program them but not sure what settings are needed. I've looked at some of your videos. I thought there would be one on this page but no luck.

    All the items we would be powering are motors but would the 10HP VFD work OK on a smaller motor, say a 3HP?

    I'll ask for the pictures of the nameplates but should be the part numbers mentioned above.
    From: Phomeda | Date: 03/03/2023
    Was this review helpful? Yes No (0/0)
    ATO Responded
    For the programming of these two models GK3000-2S0037 and GK3000-2S0075G, you can refer to the attached quick setup document and the following two demo videos.
    Note: If the motor is dual voltage, please follow the three-phase 220/230V voltage mode shown on the motor nameplate for wiring.

    Please refer to the video link: OR
    No power coming out 3 phase side
    Installed a GK3000 single phase to 3 phase VFD Invertor and it is not operational. It's brand new. No power coming out 3 phase side.
    From: Defrank | Date: 08/08/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Please don't worry, as long as you provide the information as requested, we will resolve your issue.
    1. Please send us the nameplate of your VFD and motor for confirmation.
    2. Please check whether the wiring of your VFD and motor is correct, as shown in the attached picture, and confirm whether the single-phase voltage input by the VFD is normal.
    3. If the wiring is correct, please follow the attached quick setup documentation, or the following video to check if your VFD parameter settings are correct. Pls see on:
    4. If the problem persists, you could send us a video showing the problem via for reference.
    Input wiring of VFD
    I have a question regarding the input wiring for the GK3000-2S0075G drive. The wiring schematic on page 22 of the User Manual shows inputs (X1-6, FWD, REV) connected as sinking (NPN) inputs. Can the inputs also be wired as sourcing (PNP) inputs? Is there a SOURCE/SINK mode switch on the drive?
    From: Tucker | Date: 30/05/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Regarding the input wiring for the GK3000-2S0075G drive, the multi-function input terminals (X1-6, FWD, REV) are connected to the common COM terminal, so you don't need to consider whether it is NPN or PNP type. P24 and COM, 10V and GND are the +24VDC and +10V power supplies provided externally.
    Is there a complete manual for the VFD?
    Some time ago we purchased from you GK3000-2S0075G, order number 95923, the device was installed 2 months ago and works fine.
    Today the VFD was working fine and when I changed some options I completely lost control of the device. Now the unit says I have 220V on the DC bus when I have 600V and I can't even turn the pump on.
    Would like to ask you if you have the complete manual to try to configure the unit again, the printed manual we got with the unit does not describe all the options that can be configured.

    Thank you in advance.
    From: Haley | Date: 26/05/2022
    Was this review helpful? Yes No (0/0)
    ATO Responded
    Dear Haley,

    You could set P17.01=2 (factory reset), and test again.
    Noted: The SHIFT button on the board is shift key, and the ENT button is to save and confirm the parameters.
    After setting down, you could test the VFD again. Please check the attached user manual for your reference.
    Do I need to double the size of each load when I buy a VFD?
    When sizing a single phase to three phase vfd, do I have to double the size per load. Example I want to power a 3phase 5hp motor on a table saw. Do I need a vfd rated at 10hp?
    From: Drewbob | Date: 11/06/2021
    Was this review helpful? Yes No (0/0)
    ATO Responded
    No, you don't have to double the VFD size. For 5hp motor, it will be suffice to go with 7.5hp drive. If you need from us to size the drive, please inform about motor rated current and voltage.
