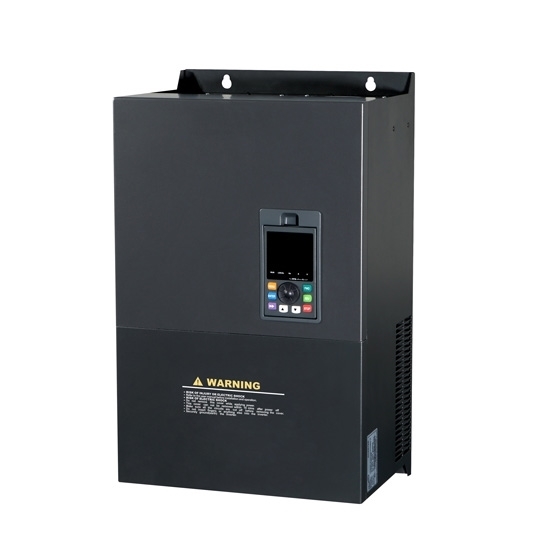

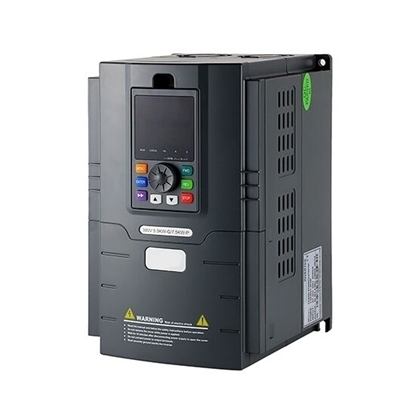

20 hp VFD, Single Phase to Three Phase VFD

5 out of 5 based on 8 reviews | Write a review

$1,721.91

High quality customize 20 hp 1-phase VFD (VSD) with low price, single phase to three phase for AC motor speed control, manufacturer direct sale.

SKU: GK3000-2S0150G

Qty:

30-day Returns

Free Shipping

Delivery date: 2-3 days

Overview
User Manual
Related Video

20 hp (15 kW) variable frequency drive, single phase 220v/230v/240v input, three phase output, 60 amps.

Specification:

Basics	Model	GK3000-2S0150G
	Capacity	20 hp (15 kW)
	Shipping weight	23 kg
	Dimension	530320235 mm
I/O Feature	Rated current	60A
	Input voltage	1 phase 220~240V AC
	Input frequency	50Hz/ 60Hz
	Output voltage	3 phase AC 0~input voltage
	Output frequency	0Hz~1000Hz
	Over load capacity	150% of rated current for 1 minute, 180% of rated current for 3 seconds
Control Feature	Control mode	V/F, Sensorless vector control (SVC), Speed sensor vector control (FVC)
	Communication	RS485
	Speed regulation	1:100
	Start torque	150% of rating torque at 1 Hz
	Speed control accuracy	≤±0.5% of rating synchronous speed
	Frequency precision	Digital setting: max frequency x± 0.01%; Analog setting: max frequency x± 0.2%
	Frequency resolution	Analog setting: 0.1% of max frequency; Digital setting: 0.01Hz
	Torque boost	Automatic torque boost, manual torque boost 0.1%~30.0%
	Interior PID controller	Be convenient to make closed-loop system
	Automatic energy save running	Optimize V/F curve automatically based on the load to realize power save running
	Automatic voltage regulation (AVR)	Can keep constant output voltage when power source voltage varies.
	Automatic current limiting	Limit running current automatically to avoid frequent over-current which will cause trip
Environment	Enclosure rating	IP 20
	Temperature	–10℃~ +40℃; VFD will be derated if ambient temperature exceed 40℃; each rise 1℃, the derate will be 5%
	Humidity	5%-95%, without condensation
	Altitude	≤1000m; VFD will be derated if above 1000m
	Impingement and oscillation	Normal running:<5.9m/s2 (0.6g); Transportation:<15m/s2 (1.5g)
	Store environment	–20℃~ +60℃; no dust, no corrosive gas, no direct sunlight

Note: ATO VFD Cannot be used as a power source, it Can only be directly connected to an induction motor to control the motor speed.

Tips: What will the output torque be when the motor’s rotating speed changes?

Starting torque and maximum torque under the driving of VFD are smaller than those directly driven by power supply.
When the motor is powered by a power frequency supply, the starting and acceleration impact are huge. When the motor is powered by a VFD, the impact would be much weaker. Power frequency starting would produce a huge starting current. When a VFD is used, the output voltage and frequency of VFD are gradually added to the motor, so the starting current impact would be much smaller.

PDF:

GK3000 Series VFD User Manual

Quick Setup Manual & Application

VFD Troubleshooting Guide

VFD Analog Input 0-10V Frequency Control (VI Port)

In this video, the ATO GK3000 inverter uses external voltage analog quantity to control the frequency, thereby achieving the purpose of motor speed regulation.

VFD Programming for Stabilizing Water Pressure in Water Supply System

In this video, we explore how to use ATO's VFD to ensure stable water pressure in your water supply system. We have covered the complete process from wiring, parameter setting and test run.

VFD Frequency Setting to 400Hz

In this video we show you a step-by-step guide on how to set the frequency of ATO's GK3000 VFD to 400Hz.

VFD Basic Troubleshooting Guide

In this video, ATO will show you the vfd basic troubleshooting guide.

4-20mA Speed Control on VFD

4-20mA is as common in analog control systems as 0~10V, and ATO GK3000 series VFDs are also perfectly compatible.

How to Control VFD with 0-10V (CI port)

This is port CI usage method for 0~10V to control the frequency of ATO GK3000 upgrade version. It is suitable for 1-phase, 1-phase to 3-phase, and 3-phase VFD.

Existing reviews of 20 hp VFD, Single Phase to Three Phase VFD

Practical VFD

I'm using this to adjust the speed of my farm machine, but I only know the basics and I'm having trouble trying to get it to work in closed loop. The main issue is that with P7.00=1 the pump starts and then very quickly goes to the maximum pressure it can achieve (0,37Mpa), then after time laps P7.35 the pump goes to 0Hz, and it never starts again. Even when the pressure in the pipe network goes below 0.2Mpa, it does not wake up. The b-15 reading seems to be the correct actual pressure, but the b-14 value is always the same as b-15. That is strange because it should never change, of course. When checking: The setting of P7.05 is still 0.3Mpa, while b-14 reads something like 0.2Mpa. My thoughts so far are going to put all parameters on factory default, by using P3.01=10, and then configure again. But I'd like to get technical help first, because there might be a simple solution. Another question: When the electrical power is interrupted, will the VFD then auto-start in closed loop again? If not, how can I prevent that every time the grid power goes off, I have to manually restart the VFD?

From: Papma | Date: 08/05/2024
