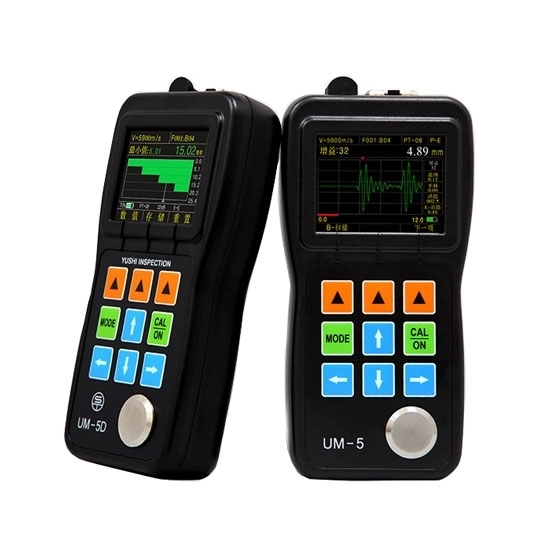

    Digital A & B-Scan Ultrasonic Thickness Gauge, Metal/PVC/Pipe, Thru-Coating

    5 out of 5 based on 1 reviews | Write a review
    Digital ultrasonic thickness gauge/tester, with live A-Scan & time-based B-Scan, thru-coating thickness measurement also available, total measuring range 0.6mm-508mm, high resolution 0.01mm or 0.001 inches, material velocity range 500 to 9999 m/s (0.0197 to 0.3939 in/μs), large OLED color display, ideal thickness testing equipment for testing thickness of metal, pipe, steel, PVC, etc.
    SKU: ATO-UM-5
    30-day Returns
    Free Shipping
    Delivery date: 6-12 days

    This series of digital ultrasonic thickness gauges with A-scan and B-scan function helps the user make more accurate thickness measurement. The thru-coating function available is designed for thickness testing without removing the paint. This instrument is widely applies for measuring the thickness of metal materials, pipes, pressure vessels, sheet metals (steel, aluminum), plastic, steel pipes, PVC pipes, glass and other materials.


    • High resolution 0.01mm or 0.001 inches
    • Measuring range: 0.6-508mm
    • Live A-Scan & Time-based B-Scan
    • Adjustable GAIN, BLANKING, GATE, etc.
    • 2.4"QVGA (320×240 pixels) OLED color display
    • 5 rectify modes of RF+, RF-, Half+, Half-, and FULL for waveform display
    • With thru-coating function, no need to remove the paintings (UM-5D, UM-5DL Only)
    • Large data logger, can store 100,000 thickness values and 1000 waveforms (UM-5DL Only)


    Model ATO-UM-5 ATO-UM-5D ATO-UM-5DL
    Display Type 2.4" color OLED, 320×240 pixels, contrast 10,000:1
    Operating Principle P-E (pulse-echo) with dual element transducers P-E (pulse-echo), E-E (echo-echo) with dual element transducers P-E (pulse-echo), E-E (echo-echo) with dual element transducers
    Total Measuring Range 0.6mm-508mm (0.025"-20.00"), depending on material, probe and surface condition
    Measuring Range (Standard Probe) TC510: 1.2-200mm
    Measuring Resolution Selectable 0.01mm or 0.1mm (selectable 0.001 inch, 0.01 inch)
    Units Inch or Millimeter
    Gain Adjustable at real time
    Rectify Mode RF+, RF-, HALF+, HALF-, FULL
    Display Mode Normal, Min/Max capture, DIFF/RR%, A-Scan, B-San
    V-Path Correction Automatic
    Update Rate Selectable 4Hz, 8Hz, 16Hz
    Material Velocity Range 500 to 9999 m/s (0.0197 to 0.3939 in/μs)
    Languages English, French, German
    Alarm Settings Minimum and Maximum alarm. Thickness readings color changes dynamically when alarming.
    Power Supply Two AA size batteries
    Operating Time Approximately 40 hours
    Instrument Shut-off Selectable ALWAYS ON or AUTO OFF after 5, 10, 20 minutes of no operation
    Operating Temperature -10℃ to +50℃
    Size 153mm×76mm×37mm (H×W×D)
    Weight 280g including batteries

    Function Comparison

    Features ATO-UM-5 ATO-UM-5D ATO-UM-5DL
    OLED Color Screen Y Y Y
    Live A-Scan Y Y Y
    Time-based B-Scan Y Y Y
    Control of Gain, Blanking, Gate, Range, Delay, RF & Rectify Mode Y Y Y
    Thru-coating/paint N/A Y Y
    Data Logger N/A N/A Y
    DataView Software N/A N/A Y

    Data Logger of ATO-UM-5DL Ultrasonic Thickness Gauge

    Capacity 100,000 thickness readings, 1000 waveforms, 400 files
    File Structure Grid file
    Rows × Columns 21×12
    Communication Port USB 2.0 port
    Software DataView PC Software

    * Standard Packing List

    Ultrasonic Thickness Gauge × 1, Standard Probe × 1, Battery × 2, Couplant × 1, Carrying Case × 1, Operating Manual × 1
    USB Cable × 1 (UM-5DL Only), Software × 1 (UM-5DL Only)
    (Kindly Reminder: Battery and Couplant is Not Included if Shipped By Air.)
    ** Optional Probes

    Model PT08 TC510 PT06 PT04 ZT12 GT12
    Type  Dual Crystal Probes UM-5/UM-5D/UM-5DL
    Small Tube Fingertipe Cast iron High-Temperature
    Frequency 5MHz 5MHz 7.5MHz 10MHz 2MHz 5MHz
    Diameter 11mm 13.5mm 8mm 6mm 17mm 15mm
    Measuring Range 0.8~100mm 1.2~200mm 0.8~30mm 0.7~12mm 4.0~508mm 4.0~80mm
    Allowable Temperature -10℃ ~ 70℃ -10℃ ~ 70℃ -10℃ ~ 70℃ -10℃ ~ 70℃ -10℃ ~ 70℃ -20℃ ~ 450℃
    Picture ultrasonic thickness gauge PT08 probe ultrasonic thickness meter TC510 probe ultrasonic thickness gauge PT06 probe ultrasonic thickness gauge PT04 probe ultrasonic thickness gauge ZT12 probe ultrasonic thickness gauge GT12 probe

    Tips: Couplant of ultrasonic thickness gauge

    In order to improve the sound energy transmission between the probe of ultrasonic thickness gauge and the workpiece, a thin layer of liquid applied between the probe and the detection surface is called a couplant.

    When there is a layer of air between the probe of ultrasonic thickness gauge and the workpiece, the reflectivity of the ultrasonic wave is almost 100%. Even a thin layer of air can prevent the ultrasonic wave from entering the workpiece. Therefore, it is very important to remove the air between the probe and the workpiece. Coupling agent can fill the air gap between the probe and the workpiece, so that ultrasound can be transmitted to the workpiece, which is the main purpose of using the couplant. In addition, the couplant also has lubrication effect, which can reduce the friction between the probe of ultrasonic thickness gauge and the workpiece, prevent the workpiece surface from wearing the probe, and make the probe easy to move.

    According to the surface condition and acoustic impedance of the workpiece to be tested, the coupling agents without bubbles and suitable viscosity should be selected, such as glycerin, oil, silica gel, water glass and paste, high temperature coupling agent, etc. If the surface of the workpiece is rough, the thicker coupling agent should be chosen. The coupling agents specially used for thickness measurement can also be used. In practical use, it is necessary to keep the coupling agent clean, not to make it stained, or it will affect the accuracy of measurement of ultrasonic thickness gauge.
