Digital Pressure Gauge for Air/Oil/Water/Hydraulic

5 out of 5 based on 1 reviews | Write a review

$157.14

Digital air/oil/water/hydraulic pressure gauge can display the measured value in real time. It adopts high-definition 4 digit LCD display with backlight, accuracy 0.5%FS, measuring range -100KPa~60MPa/ -1~600bar/ -14~8702psi. Digital pressure gauge can realize: 1) one-touch clear operation, calibrate and set zero at any time; 2) using panel buttons to directly switch between five international standard units (KPa, PSI, kgf/cm2, Bar, MPa), when KPa or MPa range is selected, only the corresponding range unit is displayed; 3) automatically record the peak value of the measured parameters, and the historical peak data can be traced back.

Measuring Range *
Thread of Pressure Connection *
Pressure Type *

SKU: ATO-PREG-Y290

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview
Measuring Range Conversion Table

Digital pressure gauge for air/oil/water/hydraulic pressure measurement has 4 digit LCD display with backlight.

Application: Digital air/oil/water/hydraulic pressure gauge is widely used in process control, aerospace, automotive, medical equipment, HVAC and other fields.

Specification:

Model	ATO-PREG-Y290
Weight	0.5kg
Measuring range *	-0.1~60MPa (-1~600bar/-14~8702psi)
Pressure type	Gauge pressure (standard), absolute pressure, sealed pressure
Measure medium	Air, oil, water, hydraulic
Power supply	DC 3V (2*1.5V AAA dry cell)
Display	4 digit LCD display with backlight
Accuracy	±0.5%FS
Zero temperature drift	±0.03%FS/℃
Sensitivity temperature drift	±0.03%FS/℃
Long term stability	≤0.2%FS/year
Overload pressure	150%FS (＜40MPa), 120%FS (≥40MPa)
Frequency response (-3dB)	5kHz~650kHz
Diameter of dial plate	80mm
Thread of pressure connection *	G1/4, G1/2, 1/4NPT, 1/2NPT, M141.5, M201.5
Sampling time	5 times/s
Operating temperature	-40~+80℃ (-40~+176℉)
Medium temperature	-20~+70℃ (-4~+158℉)
Material	Housing: 304 stainless steel Fill fluid: silicon oil Pressure port: 304 stainless steel, or 316L stainless steel (customizable) Separating diaphragm: 304 stainless steel, or 316L stainless steel (customizable) Battery compartment: ABS
Protection class	IP65

Note: * denotes optional parameters, you can select every parameter in drop-down lists to finish your order.

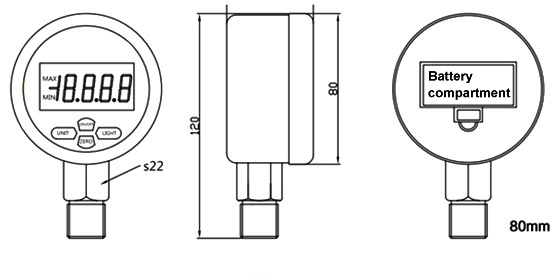

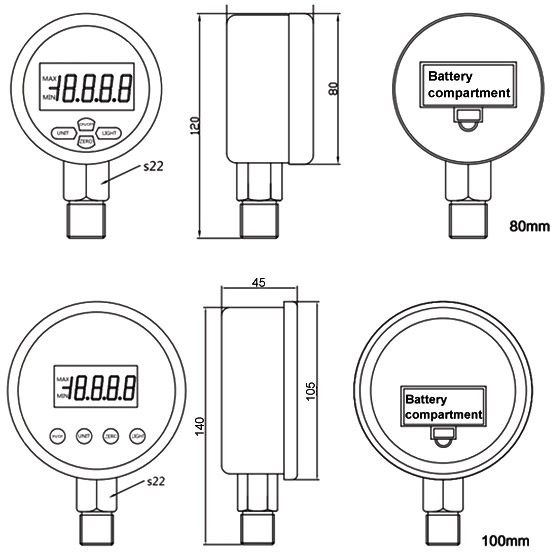

Digital pressure gauge dimension drawing (unit: mm):

Tips: How to set the digital pressure gauge?
There are 4 keys on the digital pressure gauge and they're POWER key, UNIT key, ZERO key and LIGHT key. The specific key operations and calibration settings are as follows:

POWER key: Long press POWER key 5s for power on/off.
UNIT key: Short press UNIT key to change unit according to the order of KPa, PSI, kgf/cm², Bar, MPa. Long press UNIT key 5s to check peak value (MAX), then short press UNIT key to check valley value (MIN).
ZERO key: Long press ZERO key 5s to finish zero calibration.
LIGHT key: Short press LIGHT key, light on/off. The time of light on is about 70s.

Measuring range conversion table:

Unit	kPa	MPa	bar	psi
Measuring range	0~5	0~0.005	0~0.05	0~0.7
	0~10	0~0.01	0~0.1	0~1.5
	0~20	0~0.02	0~0.2	0~3
	0~50	0~0.05	0~0.5	0~7
	0~100	0~0.1	0~1	0~14
	-100~0	-0.1~0	-1~0	-14~0
	-100~100	-0.1~0.1	-1~1	-14~14
	0~600	0~0.6	0~6	0~87
	0~1000	0~1	0~10	0~145
	0~1600	0~1.6	0~16	0~232
	0~2500	0~2.5	0~25	0~362
	0~6000	0~6	0~60	0~870
	0~10000	0~10	0~100	0~1450
	0~20000	0~20	0~200	0~2900
	0~30000	0~30	0~300	0~4351
	0~40000	0~40	0~400	0~5801
	0~50000	0~50	0~500	0~7252
	0~60000	0~60	0~600	0~8702
	0~100000	0~100	0~1000	0~14503
