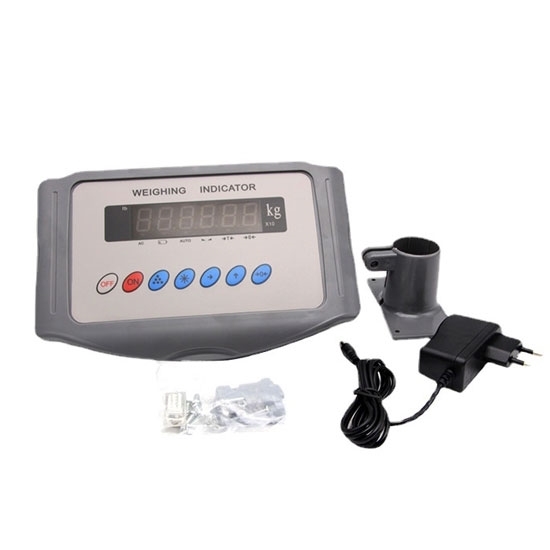

Digital Weighing Indicator, Print/ RS485/ 4-20mA/ WiFi

5 out of 5 based on 1 reviews | Write a review

$133.38

Digital weighing indicator for sale, featuring 40 times/sec A/D conversion, multi-load cell support, and selectable filtering time parameters, providing print, RS485, 4-20mA and WiFi for flexible data connectivity. The weighing indicator is designed for stable and precise operation under –25°C to +55°C environments, ideal for industrial and commercial weighing systems.

Type *

SKU: ATO-WI-GSI404

Qty:

Overview

Buy digital weighing indicator online, with multi-load cell support and flexible connectivity options like print, RS485, 4-20mA, and WiFi. Reliable and accurate performance for industrial and commercial weighing.

Specification

Model	ATO-GSI404-1
Operating Temperature	0°C – 40°C
Storage/Transport Temperature	-25°C – +55°C
Relative Humidity	≤85% RH
Battery Life	Continuous use for over 30 hours
Power Saving Mode	Optional
Zero Tracking Range	Optional
Unit Conversion	kg/lb conversion
Display	0.8-inch red LED
Housing	Plastic
wiring	AC 100V–240V
Sensor	1–4 sensors of 350Ω or 1–8 sensors of 700Ω

Feature

High-Precision Measurement: Utilizes a three-stage A/D conversion principle for accurate and reliable results.
High-Speed Response: The digital weighing indicator supports high-speed A/D conversion at 40 times per second for real-time data updates.
Enhanced Display: Features a 10x precision display mode for clearer and more intuitive readings.
Multiple Practical Functions: Integrates animal weighing, peak hold, counting, and manual/auto accumulation functions.
Flexible Configuration: The weighing indicator allows for adjustment of filtering time parameters and selectable zero tracking range to suit various application scenarios.
Unit Conversion: Supports quick switching between kilograms (kg) and pounds (lb).
Multi-Sensor Support: Compatible with 1–4 units of 350Ω sensors or 1–8 units of 700Ω sensors.
Long Battery Life: Battery-powered, supports continuous operation for over 30 hours, with an optional power-saving mode.
Versatile Output Interfaces: The weighing scale indicator offers optional RS485 communication, 4–20mA analog current loop output, and WiFi wireless output.
Print Support: Equipped with a print output function for direct connection to a printer and data recording.
Wide Operating Ranges: Operating temperature of 0°C to 40°C, storage temperature of -25°C to +55°C, and relative humidity ≤85% RH.

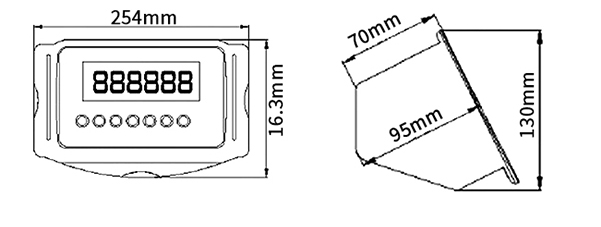

Size (unit: mm)

Digital weighing indicator size

Application

digital weighing indicator application

Tips: How to Choose the Communication Interface of digital weighing indicator?

RS485: Stable and reliable, ideal for connecting to factory PLC systems or large-scale weighing management systems.
4-20mA: Easily interfaces with traditional DCS systems or analog recording equipment, perfect for workshop upgrades.
WiFi Wireless Transmission: The digital weighing indicator enables flexible deployment without cabling constraints, allowing real-time remote data monitoring.
Print Function: Directly connects to a printer for immediate, compliant weighing tickets—ideal for quality control and documentation.
