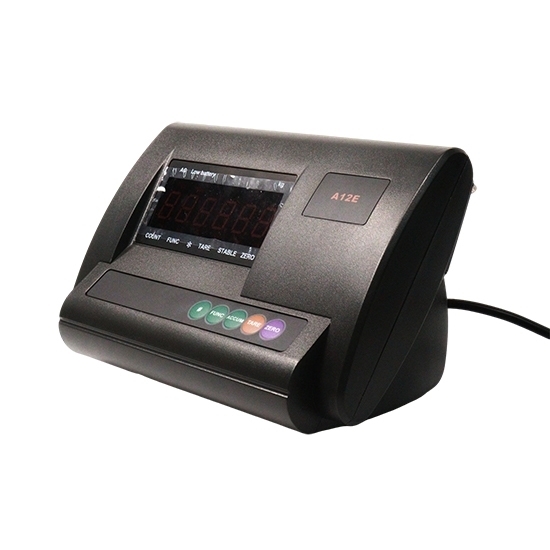

Electronic Weighing Scale Indicator for Truck/ Weighbridge

Electronic weighing scale indicator offers multiple backlight options, a 6V/4.0AH maintenance-free battery, and a bright red LED display for clear reading. Designed for truck scales and weighbridges with strong vibration resistance and low-voltage protection.

Specification

Feature

• Internal code display enables convenient observation and tolerance analysis, eliminating the need for calibration weights.
• Advanced software technology enhances vibration resistance and electronic weighing scale indicator stability.
• Zero tracking range and zero-setting range (power-on/manual) can be set independently.
• Adjustable digital filtering speed, amplitude, and stabilization time for improved accuracy.
• Built-in rechargeable design supports convenient charging at any time.
• Equipped with undervoltage indication and protection for safe operation.
• The weighing indicator includes a 6V/4AH maintenance-free rechargeable battery.
• Optional 5-pin communication interface for flexible connectivity.

Detail

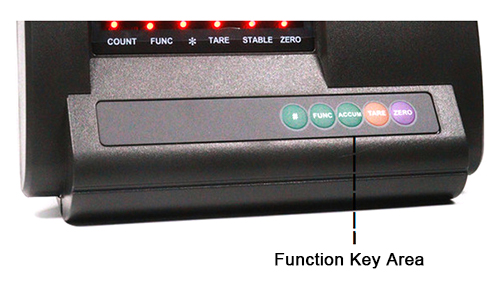

Front View

Rear View

Size (unit: mm)

Application

Tips: How to calibrate electronic weighing scale indicator?

1.Enter Calibration Mode

• Hold down the designated key combination while switching on the power.
• Access the calibration or setup menu.
• Refer to electronic weighing scale indicator manual for the specific key sequence.

2.Zero Calibration (No Load)

• Ensure the weighing indicator platform is completely empty.
• Wait for a stable display.
• Press ZERO or CAL ZERO to store the no-load signal as the reference zero point.

3.Span Calibration (Load Calibration)

• Place a known standard weight on the weighing scale indicator platform (e.g., 50 kg or 100 kg, depending on scale capacity).
• Once the reading stabilizes, press CAL SPAN or ENTER.
• Input the exact test weight value.
• The system calculates the scale factor to ensure accurate readings.

4.Verification

• Remove the weight – the display should return to zero.
• Reapply the same weight – the displayed value should match the reference weight.
• Repeat using different weights to confirm linearity and accuracy.

5.Save and Exit

• Press FUNC or ENTER to save calibration data.
• Exit calibration mode.
• The weighing indicator will restart and operate in normal weighing mode.
