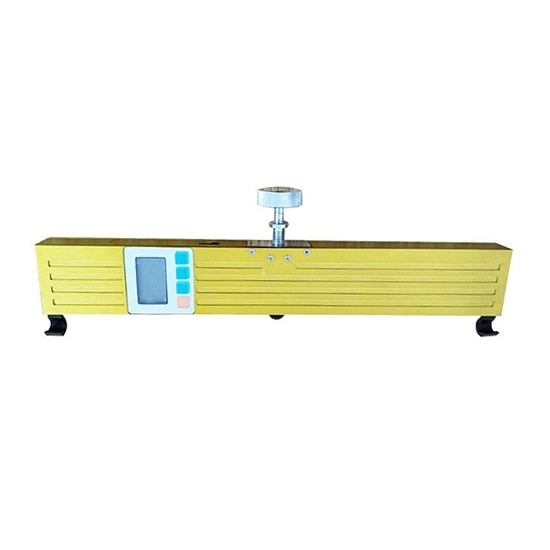

Elevator Rope Tension Force Gauge, 3000N/5000N

The portable elevator rope tension force gauge is designed for measuring elevator steel wire rope tension, mainly used by maintenance technicians for installation, maintenance, and safety inspection. It features a lightweight aluminum alloy body, preset rope selection, and LCD display with unit switching (N/kgf/lbf), ensuring accurate and efficient field measurements.

Specification

Feature

• Portable and lightweight design: Built with high-strength aluminum alloy, compact and easy to carry, enabling one-person operation for efficient on-site testing.
• High measurement accuracy (≤±5%): The elevator steel wire rope tension meter ensures reliable and precise tension readings when matched with preset rope specifications, improving safety and inspection quality.
• Preset rope configuration system: Integrated with 3 predefined rope settings, allowing quick selection and simplified operation, saving setup time in daily use.
• Wide application range: The elevator rope tension force meter is suitable for elevator installation, maintenance, and safety inspection, ensuring stable performance across various field conditions.
• Multi-unit switching (N/kgf/lbf): Offers flexible measurement unit conversion to meet different international and industry standards.
• Large data storage capacity (383 sets): The digital elevator rope tension force gauge stores measurement results for easy tracking, analysis, and PC export, improving work efficiency and data management.

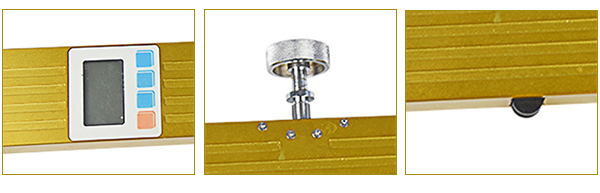

Detail

1. LCD Display: The industrial elevator rope tension force gauge features an LCD display that ensures easy and intuitive operation. The buttons are arranged from right to left as power on/off, settings, save, and zeroing keys.
2. Adjustment Screw: Simple adjustment. Loosen the screw to its maximum position to release the tested rope.
3. Semicircular Adjustment Block: Place the tested wire rope on the semicircular adjustment block and secure it using the wire rope hook for stable positioning during measurement.

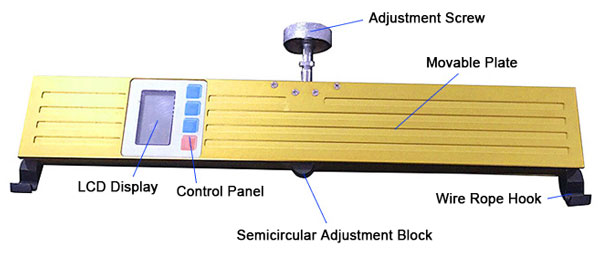

Structure

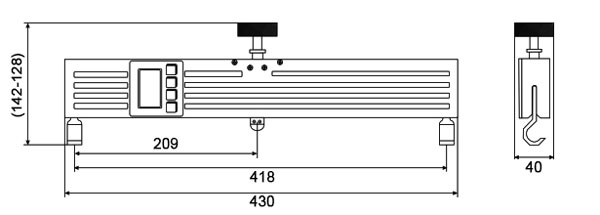

Size (unit: mm)

Tips: Can the elevator rope tension force gauge be used in any environment?

The elevator rope tension force meter is designed for industrial field applications, but it is recommended to avoid using it in extreme conditions such as high humidity, heavy dust, oil contamination, chemical exposure, or strong vibration. These environments may affect measurement stability, reduce accuracy, or shorten the service life of the instrument. For best performance, always operate the device in a clean, dry, and stable working environment.
