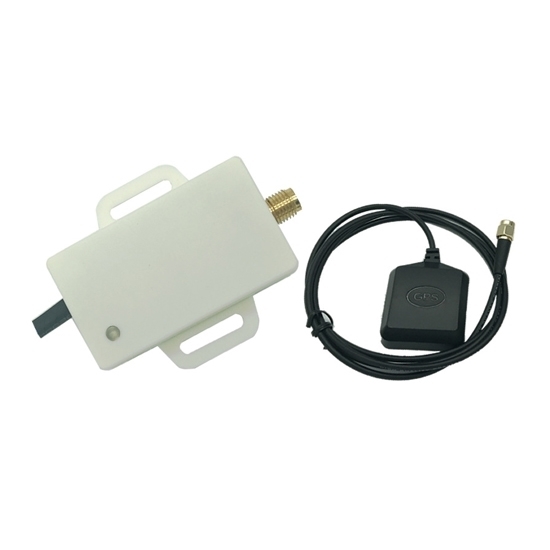

GPS Speed Sensor for Speedometer/Odometer/Tachograph

$135.84
Buy a GPS speed sensor for speedometer/odometer/tachograph online. Small speed measuring sensor adopts 0.2% high accuracy, shockproof and circuit protection design, supports negative and positive pulse output up to 50,000 pulses/km, can be used in strong wind or heavy rain.
SKU: ATO-SS-GS202
30-day Returns
Free Shipping
Delivery date: 6-12 days

Good price GPS speed sensor supports negative and positive pulse output up to 50,000/km. It works at 8-32V operating voltage with a 1~2 years long life working period, specially designed for various speedometers and driving recorders.

Specifications

Model ATO-GS202
Size 4.5cm (L) x1.9cm (W), 100cm Extension Cable
Operating Voltage 8-32V
Input Voltage 6-36V
Energy Consumption Passive Consumption 240mW
Active Consumption (with Antenna)  480mW
Maximum Current Consumption  <25mA
Error Horizontal Land <5m (50%), < 8m (90%)
Altitude <10m (50%), <16m (90%)
Speed <0.06m/sec=0.22km/h
Reaction Time  After Locking <2s (90%)
First Power on <38s (50%), <42s (90%)
Temporary Power off <10s (50%), <13s (90%)
Operational Restrictions Altitude 18000m
Speed Max 300km/h
Applications Various Speedometers, Driving Recorders


GPS Speed Sensor Cable Definition

  • RED: Power +, DC 8~32V (please connect a resistor like the image above)
  • BLACK: Ground
  • GREEN: Speed Pulse Signal Output +
  • BIUE: Speed Pulse Signal Output -

Please connect a GREEN or BLUE cable (one of the two) to your current Speedometer/odometer/tachograph.

GPS Antenna: Securely fasten the GPS antenna, preferably outdoors (ar inside front windscreen) so that it has a clear view of the sky to pick up satellite signals.

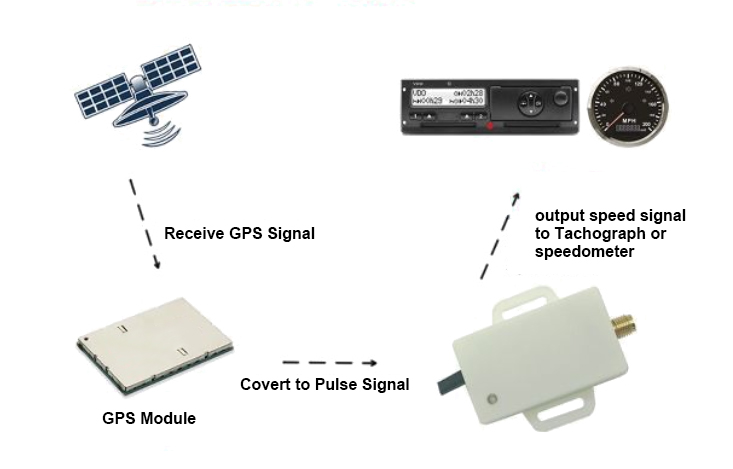

Working Principle

GPS speed sensor working principle

Tips: How to program the speed ratio to fit your current speedometer/odometer/tachograph?

  1. Connect the speed signal (Green or Blue) cable with your device.
  2. Power on GS202 GPS speed sensor and speedometer.
  3. Press the button via the hole, and hold on for 10 seconds, you will see the needle start running.
  4. Release the button, and wait for 5 seconds.
  5. Hold on to the button again, the needle will run in the opposite direction.
  6. Use steps 3~5, to make the needle point at 60km/h, then release the button and power.
  7. Setting is done.
  8. It fits the speed ratio range is 1~20,000ppk.
