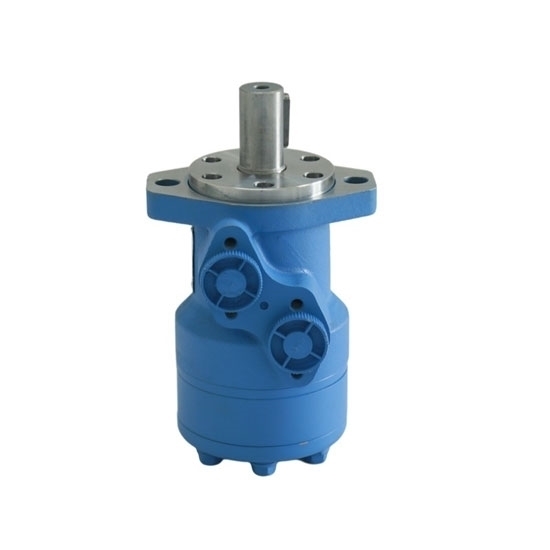

Hydraulic Orbital Motor, 100cc/rev

4.5 out of 5 based on 2 reviews | Write a review
$319.39
Low speed high torque hydraulic orbital motor for sale. It is a spool valve motor with 100cc/r displacement, reliable operation and high efficiency. Shaft seal can bear high pressure of the back. This orbit motor can be used in parallel or series in the hydraulic system.
*
*
SKU: ATO-HOM-100
30-day Returns
Free Shipping
Delivery date: 6-12 days

Factory price hydraulic orbital motor with high performance shaft, can bear high pressure, high speed and high radial force. Mounting flanges of 2 bolts and 4 bolts, easy to install.

Specification

Model ATO-OMP-100
Shaft Type (Optional) Flat Key, Splined
Flange Type (Optional) 2 Bolts, 4 Bolts
Displacement 100 cc/rev (100 cm3/rev)
Working Pressure 15 MPa
Flow Continuous 57 LPM
Intermittent 68 LPM
Max.Speed Continuous 558 rpm
Intermittent 669 rpm
Pressure Continuous 124 ∆Bar
Intermittent 138 ∆Bar
Torque Continuous 154 Nm
Intermittent 173 Nm
Weight 7kg

Note:

  • A simultaneous maximum torque and maximum speed are not recommended.
  • ∆Bar refers to true pressure difference between inlet port and outlet port.
  • Continuous Rating means that the motor may be run continuously at these ratings.
  • Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

*To assure the best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid before any load applications.

Dimensions (Unit: mm)

Dimensions of hydraulic orbital motor

L1=149mm

Hydraulic Orbital Motor Shaft (Unit: mm)

motor shafts of hydraulic orbital motor

Flange Types (Unit: mm)

2 bolt flange hydraulic orbital motor

4 bolt flange hydraulic orbital motor

L=156mm

Details

Hydraulic Orbital Motor Details

Tips: Advantages of hydraulic orbital motors

The hydraulic orbital motor is a small, low-speed, high-torque hydraulic motor with a stator and rotor pair with one-shaft distribution and inserts. The advantages are as follows:

  1. The orbit motor is small in size and light in weight, and its dimensions are much smaller than other types of hydraulic motors with the same torque.
  2. Wide speed range, stepless speed regulation, minimum stable speed up to 15 rpm, convenient installation and arrangement, low investment cost.
  3. It can be used in series or parallel in the hydraulic system.
  4. The rotation inertia is small, and easy to start under load, both forward and reverse rotation can be used, and there is no need to stop when commutation.
Existing reviews of Hydraulic Orbital Motor, 100cc/rev
Speed Control
While hydraulic orbital motors excel in providing high torque, users should consider external means for speed control if variable speeds are a requirement for their application. Additional control elements may be necessary to achieve precise speed adjustments.
