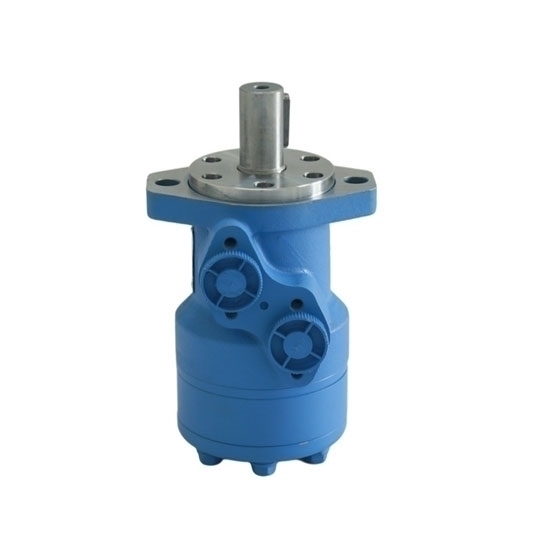

    Hydraulic Orbital Motor, 370cc/rev

    $235.69
    High torque low speed orbital hydraulic motor is widely applied in agriculture machinery, fishing machinery, plastic industry, and construction machinery, etc. It can be used in parallel or series with 370 cc/rev displacement and flat key shaft or splined shaft. Mounting flanges of 2 bolts and 4 bolts are available.
    SKU: ATO-HOM-370
    *
    *
    Free Shipping Worldwide
    Delivery date: 6-12 days

    Economical price hydraulic orbital motor is design of disc distribution flow, which can provide improved performance at low speed higher volumetric for the automatically compensate wear. It can be used on heavy vehicles and machinery in traction drive applications.

    Specification

    Model ATO-OMP-370
    Shaft Type (Optional) Flat Key, Splined
    Flange Type (Optional) 2 Bolts, 4 Bolts
    Displacement 370 cc/rev (370 cm3/rev)
    Rated Voltage 220V
    Rated Power 2kW
    Rated Current 4A
    Working Pressure 15 MPa
    Flow Continuous 57 LPM
    Intermittent 68 LPM
    Max.Speed Continuous 167 rpm
    Intermittent 199 rpm
    Pressure Continuous 90 ∆Bar
    Intermittent 100 ∆Bar
    Torque Continuous 450 Nm
    Intermittent 500 Nm
    Weight 8.5kg

    Note:

    • A simultaneous maximum torque and maximum speed is not recommended.
    • ∆Bar refers to true pressure difference between inlet port and outlet port.
    • Continuous Rating means that the motor may be run continuously at these ratings.
    • Intermittent operation refers to that the motor running time must not exceed 10% per minute under this condition.

    *To assure best orbital motor life, run it for approximately one hour at 30% of rated pressure before application to full load. Be sure this motor is filled with fluid prior to any load applications.

    Dimensions (Unit: mm)

    X=9.0mm
    Y=143.3mm

    Dimensions of Hydraulic Orbital Motor

    Hydraulic Orbital Motor Shaft (Unit: mm)

    Motor Shafts of Hydraulic Orbital Motor

    Flange Types (Unit: mm)

    Flange Types of Hydraulic Orbital Motor

    Details

    Hydraulic Orbital Motor Details

    Tips: How to improve the hydraulic orbital motor speed?

    Increasing the flow rate can increase the speed of the hydraulic orbital motor, but it will more or less affect its service life. As long as it is within its rated power range, there is no problem. If the oil pressure reaches the rated pressure, increasing the speed will exceed the power range it can withstand. But it will damage the life of the cycloid hydraulic motor.

    Increasing the flow rate can only increase the speed limit, like 500 rpm to 900 rpm. It is recommended to change the model of the motor, the cycloid motor flow is increased to a certain extent, the speed will not increase uncontrollably, the internal oil pressure increases, and the internal leakage increases, the efficiency drops directly, or the motor is damaged.
