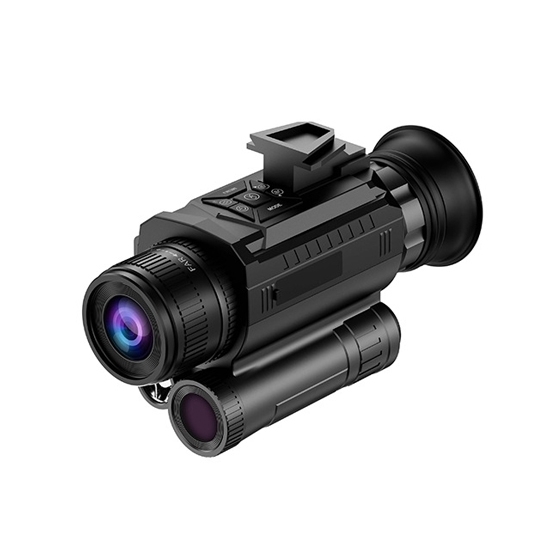

Infrared Night Vision Monocular Goggles, 8x Digital Zoom

Introducing the infrared night vision goggles with 8x digital zoom. Engineered with advanced infrared imaging technology and a high-performance starlight CMOS sensor, this infrared night vision monocular goggles delivers exceptional clarity in low-light and pitch-black environments. Whether you're observing wildlife, conducting surveillance, or navigating nighttime terrain, this monocular offers powerful zoom capabilities, crystal-clear imaging, and rugged reliability in a compact, user-friendly design. Below, explore its detailed specifications, versatile applications, high-resolution close-up visuals, and an in-depth look at its working principle to understand why it's the perfect companion for your night vision needs.

Specification

Features

• Active Infrared Night Vision for Clear Imaging: Equipped with high-power infrared illumination and a starlight CMOS sensor, the night vision monocular deliver sharp, detailed images even in complete darkness, enabling reliable observation and recording at night.
• 8x Digital Zoom for Long-Range Detail Observation: Featuring 8x digital zoom capability, the infrared night vision monocular allow you to closely inspect distant targets without compromising image clarity, making it ideal for surveillance and wildlife monitoring.
• 4K Video & 40MP Photo Capture, Day or Night: Capture stunning 4K video with audio and high-resolution 40MP photos in any lighting condition with the 4k night vision goggles, ensuring professional-grade imaging performance around the clock.
• Built-in Multifunctional Tactical Light with Strobe Mode: The infrared night goggles include a 1W tactical flashlight offering both steady light and strobe modes, serving as both a practical illumination tool and an emergency distress signal for outdoor safety.
• Compact, Lightweight Design with Long-Lasting Battery: Weighing only 340g and powered by a 2000mAh rechargeable battery with Type-C charging, the infrared night vision monocular Goggles combine portability with extended operation time for all-night adventures.

Dimension (Unit: mm)

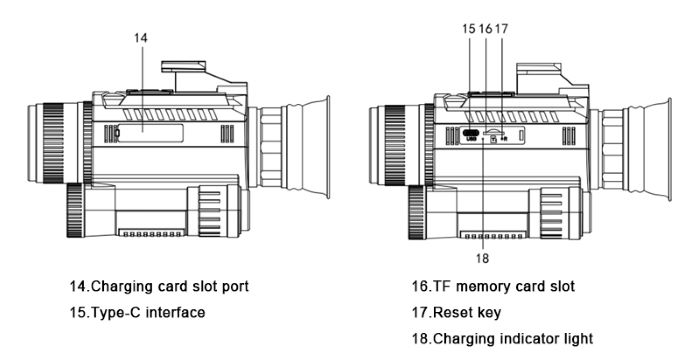

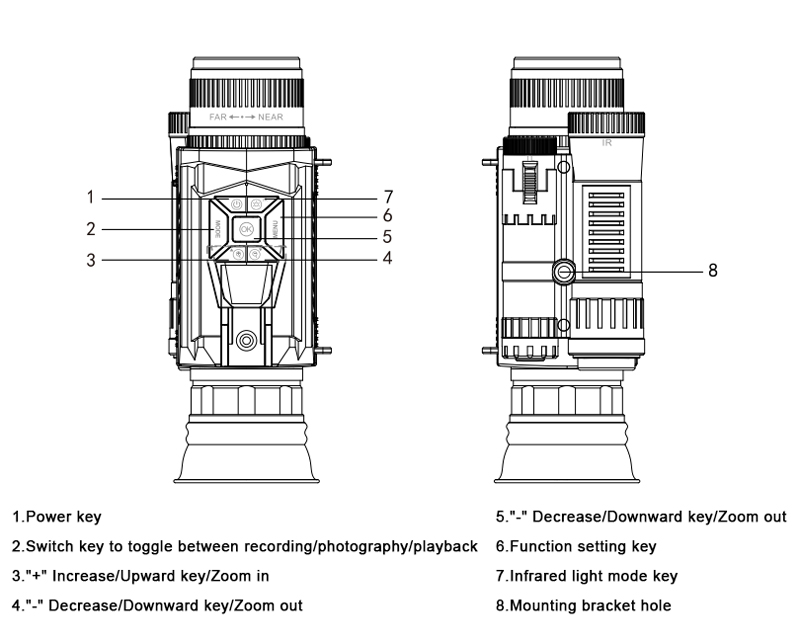

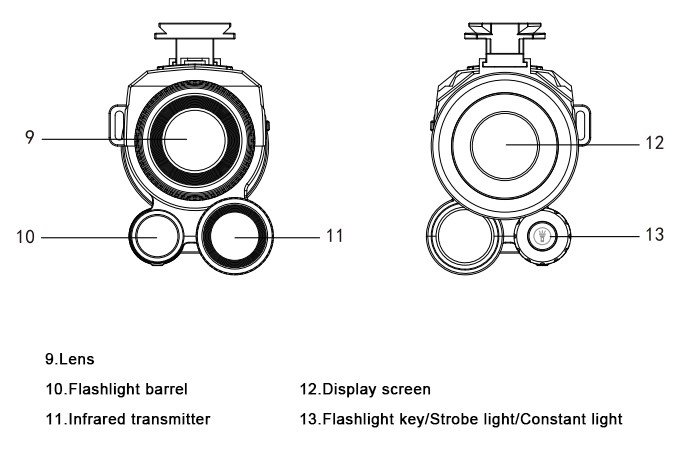

Details

Application

What is the Infrared Night Vision Monocular Goggles Working Principle?

The infrared night vision goggles operate based on active infrared imaging technology. At their core is a starlight-grade CMOS sensor, which is highly sensitive to low levels of visible light and near-infrared radiation. In low-light or dark conditions, the device activates its built-in high-power infrared illuminator, which emits infrared light invisible to the naked eye. This light illuminates the surrounding area, and the reflected infrared radiation is captured by the lens. The CMOS sensor then converts this captured infrared light into electrical signals, which are processed to form a visible, detailed grayscale or greentone image displayed on the built-in screen. This process enables clear observation in complete darkness.

Furthermore, the device enhances functionality through digital integration. The 8x digital zoom allows users to magnify distant targets electronically, while the multi-level infrared settings adjust the intensity of the IR illumination to optimize image clarity and battery life based on observation distance. Coupled with a large aperture lens (e.g., f/1.4) that maximizes light intake, the system ensures high-resolution imaging (such as 40MP photos and 4K video) by effectively gathering and processing available light, both visible and infrared. The seamless combination of advanced sensor technology, active infrared illumination, and digital processing creates a powerful, portable tool for nighttime surveillance and outdoor exploration.
