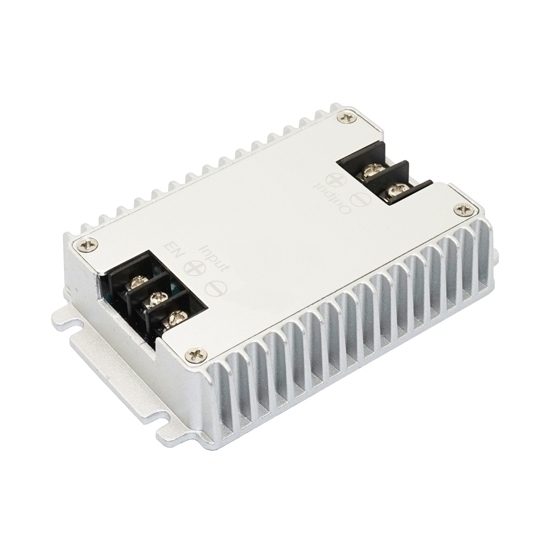

Isolated DC-DC Converter, 72V to 12V

Write a review

$93.69

72V to 12V isolated DC-DC power converter is a step down converter which widely used in artificial intelligence, communication base stations and industrial control, with range of input voltage 50V to 90V DC, output current 8 amps and output power 96 watts, up to 92% high conversion efficiency at low price.

SKU: ATO-IDCDC-7212

Qty:

30-day Returns

Free Shipping

Delivery date: 6-12 days

Overview

72V to 12V isolated DC-DC converter is a buck converter that uses a synchronous rectification technology, and features high efficiency and power density. It provides that rated output voltage of 12V and the maximum output current of 8 amps.

Features

100% full power, high stability output.
Isolated DC-DC converter uses high-quality thermal conductive silicone potting, waterproof, dustproof, shockproof, with die-casting aluminum alloy shell, small size, and easy installation.
Wide voltage input, built-in overcurrent, overvoltage, overtemperature, short circuit and other automatic protection functions.
CE, RoHS certification, up to 100,000 hours of service life.

Isolated DC-DC Buck Converter Specification

Model	ATOWGI08-72S12L (Click to view more specs)
Input	Rated voltage	72V
	Voltage range	50-90V
	Efficiency	92%
Output	Voltage	12V
	Max. rated current	8A
	Max. rated power	96W
	Voltage regulation	±2%
	Load regulation	±2%
	No load loss	70mA
	Ripple & noise	50mV
Environment	Working temperature	-40 ~ +80℃
	Working humidity	5% ~ 95%RH
	Storage temperature	-55 ~ +100℃
Function	Short circuit protection	NO
	Over current protection	YES
	Waterproof	IP68
	Over temperature protection	YES
	Over voltage protection	YES
Mechanical	Weight	250g
	Size	1107020mm

Dimensions (Unit: mm)

Dimensions of isolated DC-DC converter 48V to 5V

Tips: What are the benefits of isolated DC-DC converters?

The greatest advantage of isolated DC-DC converters is likely to be security compliance, especially in mains supply equipment.

Basic insulation: a single layer of insulation that provides shock protection.
Supplementary insulation: Add another layer on top of the basic insulation to provide redundancy.
Enhanced insulation: A single barrier provides double basic protection.
